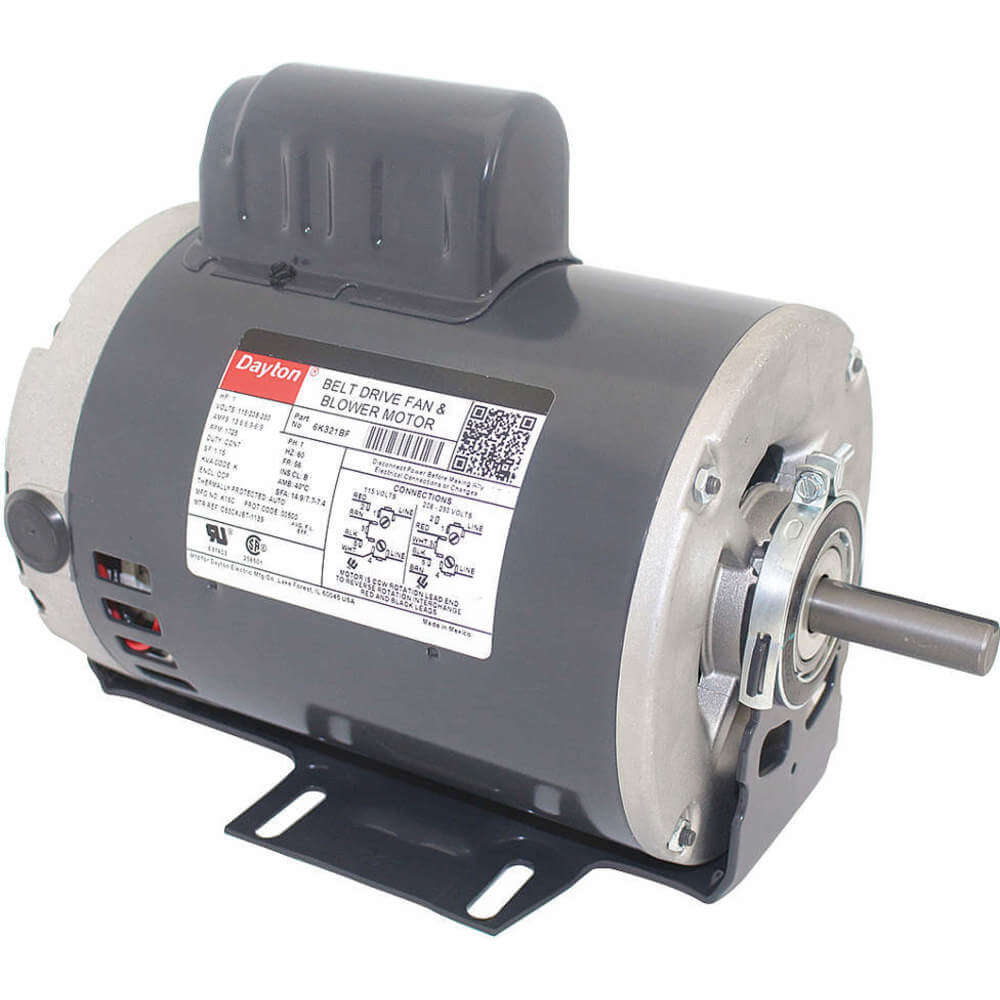

DAYTON 6K321 General Purpose Motor Carbon Steel Odp 1 Hp 1725 Rpm 56
Get it by Tuesday, Dec 23
10.00% off
€513.05 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | General Purpose Motor |
| Ambient Temp. | 104°F |
| Application | General Application |
| Bearing Type | Ball |
| Body Dia. | 6 1/2" |
| Duty | Continuous |
| Duty Cycle | Continuous |
| Efficiency | 66% |
| Frame | 56 |
| Frame Material | Rolled Steel |
| Frequency | 60 Hz |
| Full Load Amps | 13.6/6.9A |
| Hp | 1 hp |
| Hz | 60 Hz |
| Insulation Class | Class B |
| Length Less Shaft | 9 7/8" |
| Manufacturers Warranty Length | 1 yr. |
| Max. Ambient Temp. | 104°F |
| Motor Application | HVAC/R |
| Motor Bearings | Ball |
| Motor Design | Capacitor Start |
| Motor Enclosure Design | Open Dripproof |
| Motor Frame Material | Rolled Steel |
| Motor Mounting Position | All Angle |
| Motor Mounting Type | Cradle Base |
| Motor Service Factor | 1.15 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | Clockwise/Counter Clockwise |
| Motor Shaft Rotation | CW/CCW |
| Motor Sub Application | Belt Drive Fan/Blower |
| Motor Thermal Protection | Auto |
| Motor Type | Capacitor Start |
| Mounting Type | Cradle Base |
| Nameplate Rpm | 1725 RPM |
| No. Of Speeds | 1 |
| Nominal Efficiency | 66% |
| Number Of Speeds | 1 |
| Overall Length | 11 13/16" |
| Phase | 1 |
| Rpm Range | 1701-1800 RPM |
| Service Factor | 1.15 |
| Shaft Dia. | 5/8" |
| Shaft Length | 1 7/8" |
| Thermal Protection | Automatic |
| Voltage | 115/208-230V |
Shipping Info:
| Ship weight (kg) | 13.8 |
| Ship height (cm) | 27.18 |
| Ship length (cm) | 38.86 |
| Ship width (cm) | 21.08 |
| HS code | 8501406040 |
| Country of Origin | MX |
Features:
- It features capacitor start configuration for a smooth motor startup.
- It offers automatic thermal protection for keeping the motor safe from overheating.
- It features an open drip-proof enclosure for maximising the airflow inside the motor.
- It has rolled steel construction for preventing chances of damage against accidental blows & impacts.
- Its keyed motor shaft ensures secure latching.
- It features ball bearings for minimising friction.
Standards and Approvals:
- CSA
- UL
Frequently Asked Questions:
Q. How to mount this Dayton 6K321 general purpose motor?
A. This motor has a cradle style base mounted onto flat surfaces using nuts and bolts. Once mounted, the user can adjust the motor position because of the cradle base design.
Q. What is the efficiency rating of this Dayton 6K321 general-purpose motor?
A. This motor is rated at 66 percent efficiency.
Q. What is the mounting position for this Dayton 6K321 general-purpose motor?
A. This motor is suitable for all angle mounting positions.
Product Variants
| Product | Model | Voltage | Hp | Full Load Amps | Mounting Type | Service Factor | Motor Type | Nameplate Rpm | Frame | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
1AGG3 | 115/208-230V | 1/2 hp | 7.2/3.6A | Cradle Base | 1.25 | Capacitor Start | 1725 RPM | 56 | €377.28 | |
 |
1D170 | 115V AC | 3/4 hp | 11.3A | Cradle Base | 1.25 | Split Phase | 1725 RPM | 56H | €525.69 | |
 |
24C180 | 115/208-230V | 1/2 hp | 7.7/3.8-3.7A | Cradle Base | 1.25 | Capacitor Start | 1725 RPM | 56H | €525.68 | |
|
24C181 | 115/208-230V | 3/4 hp | 9.8/5.2-5A | Cradle Base | 1.25 | Capacitor Start | 1725 RPM | 56H | €537.49 | |
 |
24C182 | 115/208-230V | 1 hp | 13.6/6.9A | Cradle Base | 1.15 | Capacitor Start | 1725 RPM | 56H | €757.89 | |
 |
3K199 | 115/230V AC | 1/2 hp | 7.7/3.8A | Cradle Base | 1.25 | Capacitor Start | 1725 RPM | 56 | €557.15 | |
 |
3K617BG | 115/208-230V | 3/4 hp | 11.2/5.6A | Cradle Base | 1.25 | Split Phase | 1725 RPM | 56H | €448.78 |
