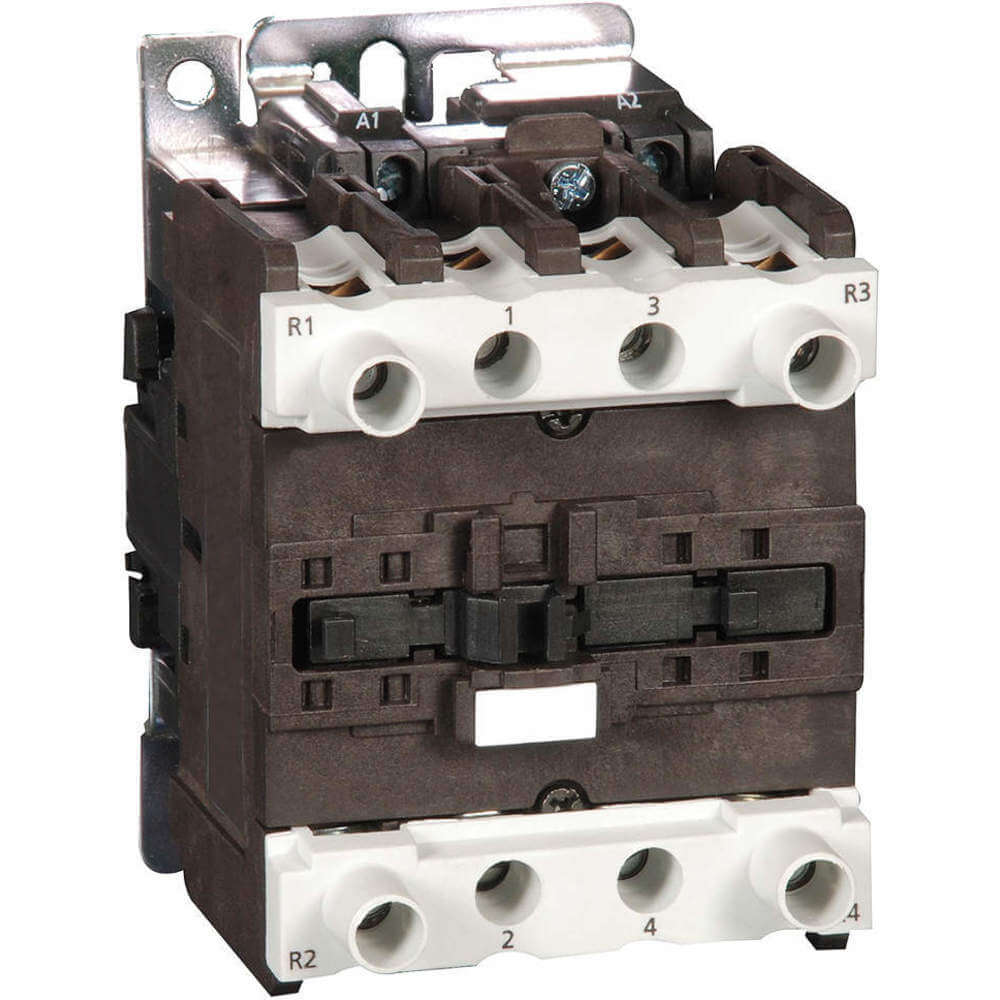

DAYTON 6EAZ2 Contactor Iec 50a 4p 120vac 2no/2nc
Item: AE8MNYModel: 6EAZ2
7 In Stock
Ships within 2 days via
5.00% off
€313.46 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Contactor |
| Action Type | Non Reversing |
| Coil Voltage | 120V AC |
| Contactor Type | IEC |
| Depth | 4 3/5" |
| Embedded Surge Suppressor | No |
| Enclosure Nema Rating | No Enclosure |
| Enclosure Type | Open |
| Frequency | 50/60 Hz |
| Full Load Amps-inductive | 50A |
| Full Load Amps-resistive | 70A |
| Height | 2.95" |
| Hp @ 1 Phase-120v | 3 hp |
| Hp @ 1 Phase-230v | 7 1/2 hp |
| Hp @ 1 Phase-240v | 7 1/2 hp |
| Included Auxiliary Contacts | Yes |
| Nema Enclosure Material | Not Applicable |
| No. Of Auxillary Contacts | 4 |
| No. Of Normally Closed Main Contacts | 2 |
| No. Of Normally Open Main Contacts | 2 |
| No. Of Poles | 4 |
| Reversible | No |
| Terminal Connection Type | Screw Terminal |
| Width | 2.95" |
Shipping Info:
| Ship weight (kg) | 1.26 |
| Ship height (cm) | 10.16 |
| Ship length (cm) | 13.21 |
| Ship width (cm) | 13.21 |
| HS code | 8536490065 |
| Country of Origin | IN |
Product Variants
| Product | Model | Nominal Coil Voltage @ 60hz | Height | Depth | Reversing Capability | Main Power Pole Contact Form | Auxiliary Contacts Included | Wire Termination Type | Integrated Surge Suppression | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
6EAX9 | 24V AC | 1.77" | 3.18" | Non Reversing | 2NO/2NC | None | Screw | No | €57.03 | |
 |
6EAY0 | 120V AC | 1.77" | 3.18" | Non Reversing | 2NO/2NC | None | Screw | No | €57.03 | |
|
6EAY1 | 240V AC | 1.77" | 3.18" | Non Reversing | 2NO/2NC | None | Screw | No | €57.03 | |
|
6EAY2 | 24V AC | 1.77" | 3.18" | Non Reversing | 2NO/2NC | None | Screw | No | €59.59 | |
|
6EAY3 | 120V AC | 1.77" | 3.18" | Non Reversing | 2NO/2NC | None | Screw | No | €59.59 | |
|
6EAY4 | 240V AC | 1.77" | 3.18" | Non Reversing | 2NO/2NC | None | Screw | No | €59.59 | |
 |
6EAY5 | 24V AC | 2 1/5" | 3 3/4" | Non Reversing | 2NO/2NC | None | Screw | No | €119.66 |
