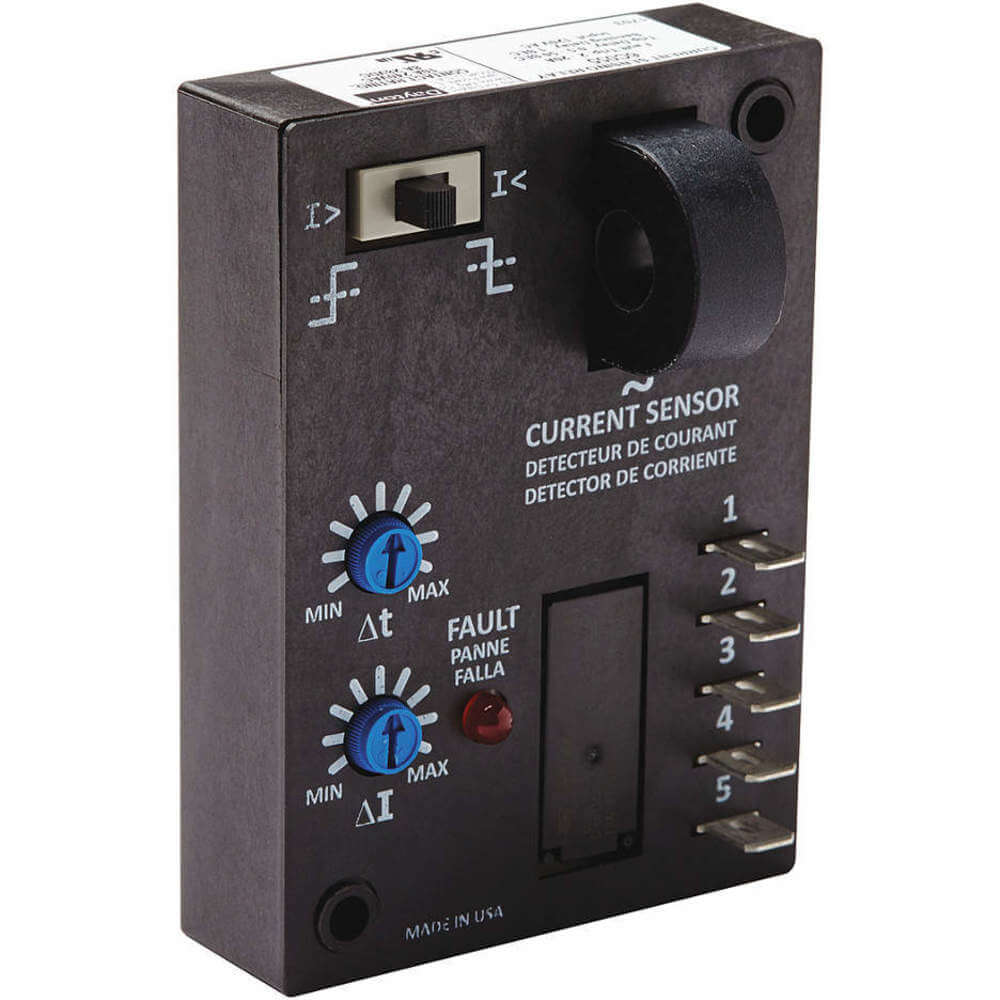

DAYTON 6C055 AC Current Sensor
Item: AE7YWDModel: 6C055
7 In Stock
Ships within 2 days via
5.00% off
€143.32 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | AC Current Sensor |
| Adjustment Method | Switch |
| Amps | 10A |
| Body Depth | 4/5" |
| Body Height | 3 1/2" |
| Body Width | 2 1/2" |
| Contact Amps | 10A |
| Contact Form | SPDT |
| Contact Rating (ac) | 10A @ 240V |
| Contact Rating (dc) | 8A @ 28V |
| Core Type | Solid |
| Electrical Connection | Quick Connect Tabs , Tab |
| Electrical Connection Type | Tab |
| Input Voltage | 120V AC |
| Max. Inrush Amps | 300A |
| Monitored Parameters | Overcurrent, Undercurrent |
| Mounting | Surface |
| Mounting Style | Surface |
| Mounting-relay | Surface |
| No. Of Pins | 4 |
| No. Of Pins/terminals | 4 |
| Overall Depth | 3 1/2" |
| Overall Height | 3 1/2" |
| Relay Mounting Style | Surface |
| Sensing Hole Dia. | 9/25" |
| Sensor | 2-20A |
| Sensor | Toroidal, 0.36" Through Hole |
| Sensor Opening | 9/25" |
| Status Indicator | LED Indicator |
| Status Indicator | LED |
| Trip Delay | 0.5 sec. to 50 sec. |
| Trip Delay (sec.) | 0.5 to 50 |
| Trip Point | 2/20A |
| Trip Point (amps) | 2-20A |
| Trip Point (amps) | 2 to 20 |
| Trip Point Type | Adjustable |
| Type | Current Sensing |
Shipping Info:
| Ship weight (kg) | 0.16 |
| Ship height (cm) | 10.41 |
| Ship length (cm) | 6.86 |
| Ship width (cm) | 5.33 |
| HS code | 8536490075 |
| Country of Origin | US |
Product Details:
- Max. Inrush Current (300)
Product Variants
| Model | Trip Point (amps) | Input Voltage | Electrical Connection | Core Type | Electrical Connection Type | Contact Form | Mounting | Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|

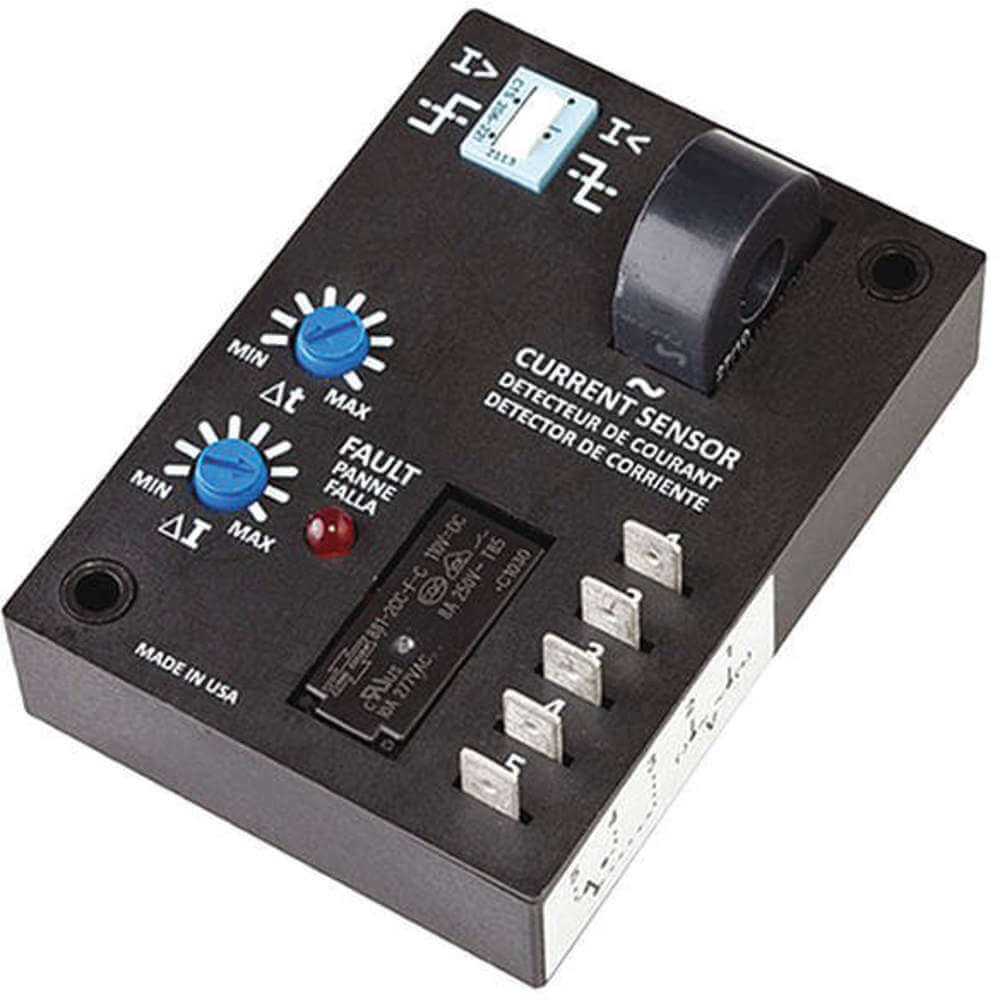

| 15V826 | 5-50A | - | Tab | Solid | - | - | - | Current Sensing | €123.82 | |
| 15V827 | 5-50A | 120V AC | Tab | Solid | Tab | SPDT | - | Current Sensing | €130.44 | |
| 15V828 | 5-50A | 240V AC | Tab | Solid | Tab | SPDT | - | Current Sensing | €123.82 | |

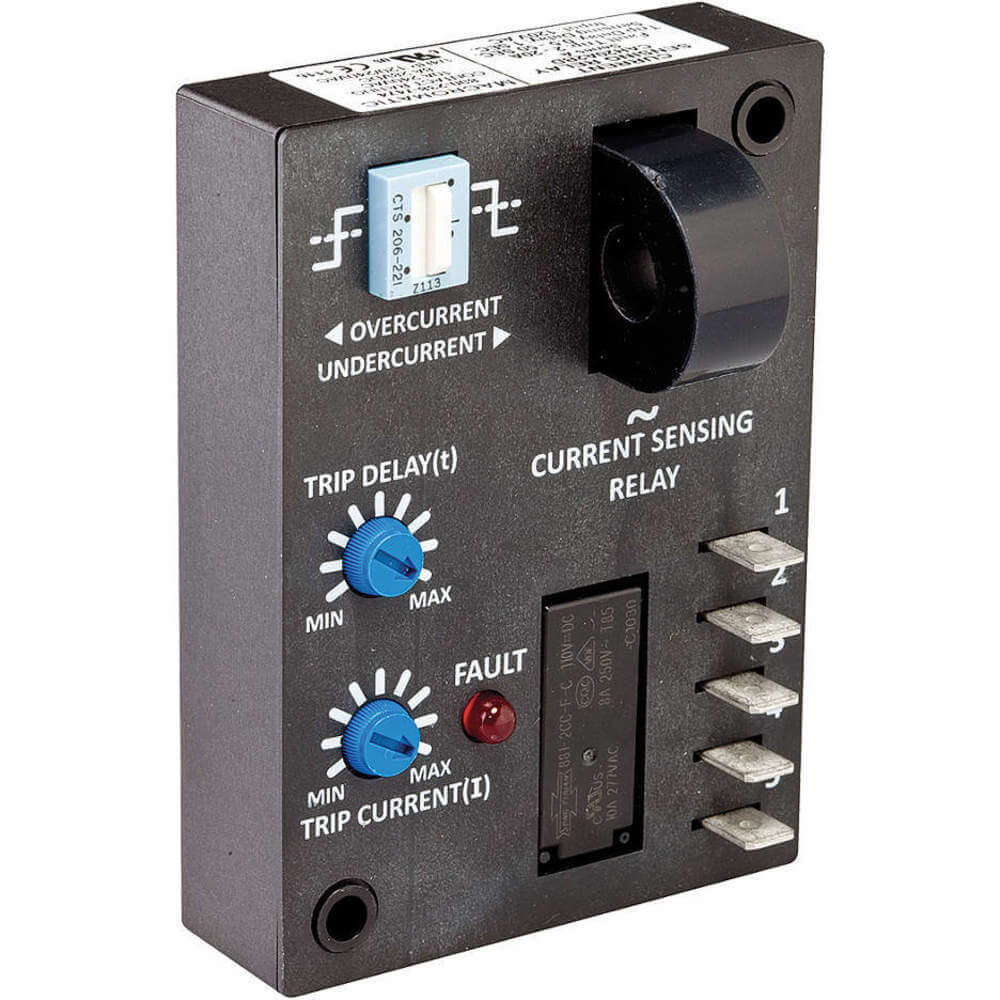

| 6C054 | 2-20A | 24V AC | Tab | Solid | Tab | SPDT | Surface | Current Sensing | €121.78 | |
| 6C057 | 2-20A | 240V AC | Tab | Solid | Tab | SPDT | Surface | Current Sensing | €123.94 |
