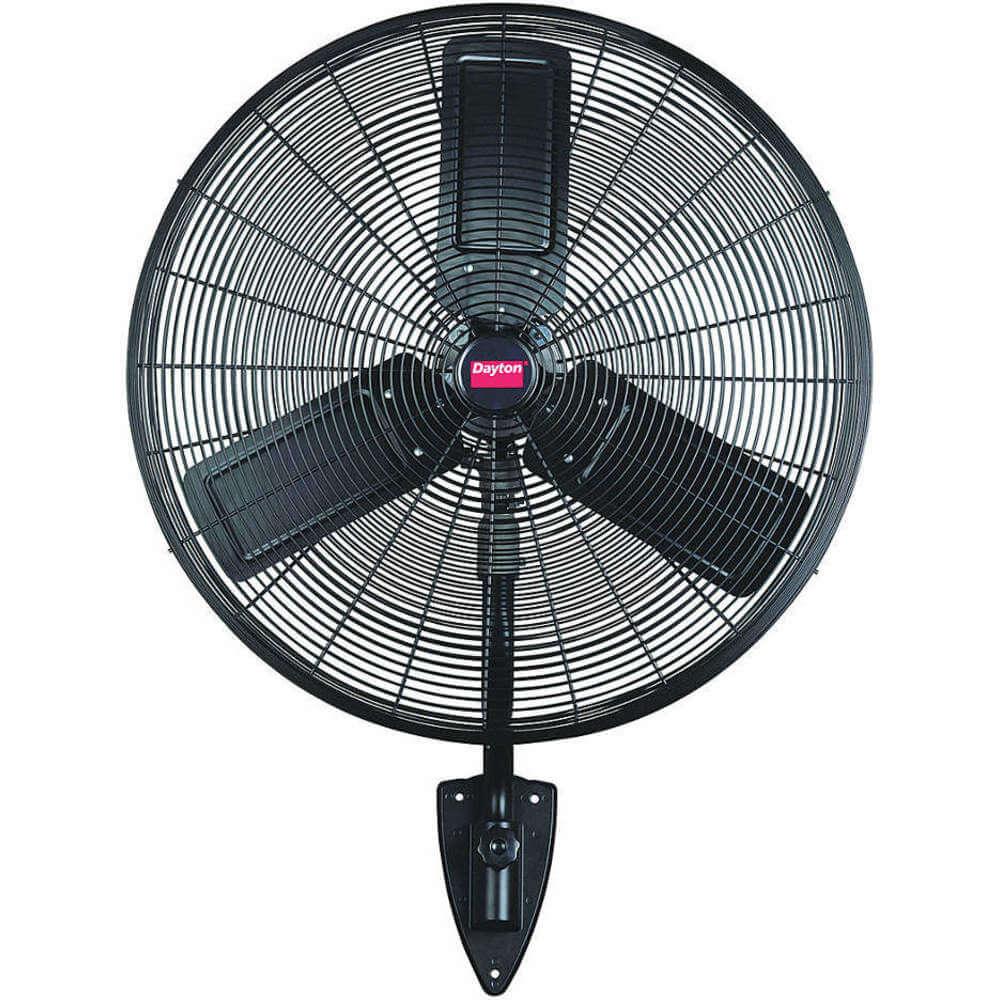

DAYTON 6ALF0 Air Circulator 24 Inch 6360 Cfm 115v
Get it by Monday, Feb 16
10.00% off
€448.10 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Air Circulator |
| Air Flow | 3510/6400 CFM |
| Air Velocity (fpm) @ 10 Ft. | 749/426 |
| Air Velocity (fpm) @ 20 Ft. | 437/281 |
| Air Velocity (fpm) @ 40 Ft | 148/144 |
| Air Velocity (fpm) @ 40 Ft | 148/144 FPM |
| Air Velocity (fpm) @ 60 Ft. | 192 FPM |
| Air Velocity (fpm) @ 60 Ft. | 192/0 |
| Air Velocity @ 10 Ft. | 800/480 FPM |
| Air Velocity @ 20 Ft. | 440/285 FPM |
| Air Velocity @ 40 Ft. | 150/100 FPM |
| Amps | 2.8/2.1A |
| Assembled | No |
| Assembly Required | Yes |
| Bearing Type | Ball |
| Blade Dia. | 24" |
| Blade Material | Aluminum |
| Cfm Low | 3480 |
| Cfm/watt | 28.3/25 |
| Color | Black |
| Cord Length | 10 ft. |
| Depth | 23 7/8" |
| Drive Type | Direct Drive |
| Environmental Applications | Industrial |
| Fan Accessory Style | Standard |
| Fan Cord Length | 10 ft. |
| Fan Housing Material | Steel |
| Fan Mounting Location | Wall |
| Fan Speed | 1050/650 RPM |
| Fan Style | Standard |
| Guard Material | Steel |
| Height | 40 1/2" |
| Height Adjustment | Fixed Height |
| Housing Material | Steel |
| Hz | 60 Hz |
| Includes | Mounting Hardware, Secondary Safety Support Cable, Wall Bracket |
| Max. Ambient Temp. | 104°F |
| Max. Depth | 23" |
| Mobile/stationary | Stationary |
| Motor Enclosure Design | Totally Enclosed Air Over |
| Motor Hp | 1/4 hp |
| Motor Insulation | Class B |
| Motor Insulation Class | Class B |
| Motor Speed | 1050/650 RPM |
| Motor Type | Permanent Split Capacitor |
| Mounting Location | Wall |
| Nema Plug Configuration | 5-15P |
| No. Of Conductors | 3 |
| Number Of Blades | 3 |
| Number Of Speeds | 2 |
| Oscillating | Yes |
| Oscillating/non-oscillating | Oscillating |
| Oscillation | Oscillating |
| Phase | 1 |
| Product Type | Light-Duty Industrial Fan |
| Rpm | 1100/850 RPM |
| Shaft Dia. | 1/2" |
| Sound Level | 74 dBA |
| Thermal Protection | Automatic Reset |
| Voltage | 115V AC |
| Wattage | 374/293 W |
| Watts | 300/220 W |
| Wheeled Base | Stationary |
| Width | 27" |
| Wire Guard Finish | Polyester Powder Coated Black |
Shipping Info:
| Ship weight (kg) | 22.41 |
| Ship height (cm) | 20.32 |
| Ship length (cm) | 104.14 |
| Ship width (cm) | 72.39 |
| HS code | 8414596090 |
| Country of Origin | US |
Product Details:
- Mobile/Stationary (Stationary)
Product Variants
| Product | Model | Phase | Number Of Speeds | Motor Hp | Voltage | Blade Dia. | Mounting Location | Oscillating/non-oscillating | Sound Level | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
13V401 | 1 | 2 | 1/5 hp | - | 18" | Wall | Oscillating | 70 dBA, 66 dBA | €351.64 | |
|
13V402 | 1 | 2 | 1/5 hp | 120V AC | 20" | Wall | Oscillating | 68 dBA, 65 dBA | €408.45 | |
 |
1RWB4 | 1 | 2 | 1/4 hp | 120V AC | 30" | Ceiling, Wall | Non Oscillating | 77 dBA | €379.49 | |
 |
1VCH1 | 1 | 1 | 1/4 hp | 115/230V AC | 24" | Wall | Non Oscillating | 76 dBA | €1,971.79 | |
|
1VCH2 | 1 | 1 | 3/4 hp | 115/230V AC | 30" | Wall | Non Oscillating | 80 dBA | €1,749.83 | |
|
1VCH3 | 1 | 1 | 3/4 hp | 115/230V AC | 36" | Wall | Non Oscillating | 82 dBA | €2,507.68 | |
 |
1ZCN7 | 1 | 1 | 1/15 hp | 115V AC | 18" | Ceiling, Wall | Non Oscillating | 59 dBA | €257.15 |
