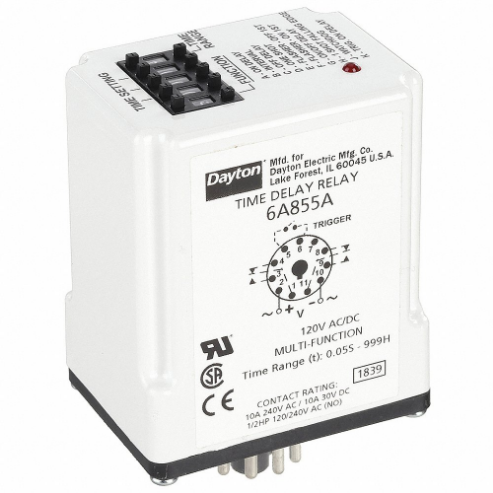

DAYTON 6A855 Timer Relay, 999 hrs, 11 Pin, Octal base, Plug-in Mounting

Dayton 6A855 time-delay relay is designed to control the opening or closing of contacts in a device and turn it On/Off at specific times. This multi-function relay features a DPDT contact form, an LED status indicator and plug-in mounting.

Features:

• It has a pushbutton thumbwheel to easily select one of the ten functions and seven time range options. It is also capable of digitally setting the time delay for specific requirements.
• This DPDT style unit is capable of delaying the time between 50ms and 999 hours and has a socket electrical connection for turning the device ON / OFF.
• It has an LED display that indicates timing mode & time-out condition and an octal-type mounting base for secure connection.
• This unit features silver alloy contacts for excellent thermal & electrical conductivity and has plug-type mounting facility for quick installation / removal.

Standards and Approvals:

• CE
• CSA
• UR

Frequently Asked Questions:

Q. What are the functions of the time delay relay?

A. The functions of Dayton 6A855 include on delay, interval on, off delay, single shot, on / off delay, flasher (on first), flasher (off first), triggered on delay, watchdog and single-shot falling edge.

Q. What is the DPDT contact form?

A. DPDT (double pole double throw) contact form enables the relay to control two circuits simultaneously.

Q. Which sockets can be accommodated by Dayton 6A855 multi-function time delay relay?

A. This time delay relay can accommodate Dayton 1EGP2, 1EGP4 and 6X156 units.
