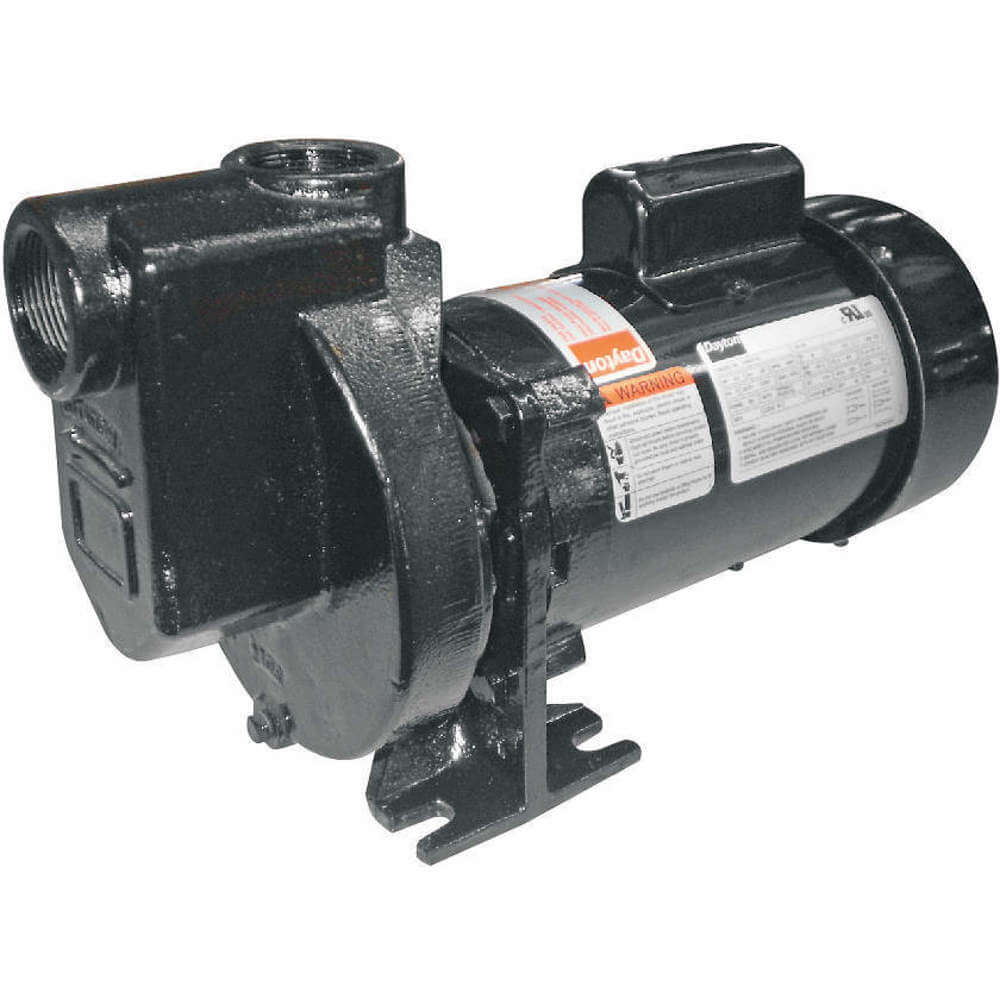

DAYTON 5WXU4 Pump Centrifugal Cast Iron 1/3 Hp 1 Ph
Get it by Tuesday, Dec 23
10.00% off
€737.26 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Centrifugal Pump |
| Amps | 3.5-4/8A |
| Bearing Type | Ball |
| Best Efficiency Flow | 14-34 GPM |
| Best Efficiency Flow Range @ Head | 34 to 14 GPM @ 20 to 36 ft. |
| Best Efficiency Flow Rate | 14-34 GPM |
| Best Efficiency Flow Rate @ Head | 23 GPM @ 30 ft. |
| Best Efficiency Head | 20 ft. to 36 ft. |
| Compatible Discharge Pipe Size | 1 1/2" |
| Compatible Intake Pipe Size | 1 1/2" |
| Connection Type | NPT |
| Discharge Type | NPT |
| Drain Plug | Easily Accessible At Bottom |
| Duty Cycle | Continuous |
| Flow Rate @ 10 Ft. | 42 GPM |
| Flow Rate @ 2 Ft. | 47 GPM |
| Flow Rate @ 20 Ft. | 34 GPM |
| Flow Rate @ 25 Ft. | 29 GPM |
| Flow Rate @ 30 Ft. | 23 GPM |
| Flow Rate @ 40 Ft. | 8 GPM |
| Flow Rate @ 5 Ft. | 45 GPM |
| Flow Rate Of Water @ 15 Ft. | 38 GPM |
| Flow Rate Of Water @ 25 Ft. | 29 GPM |
| For Use With Potable Systems | No |
| Frame | 56J |
| Frequency | 60 Hz |
| Gpm Of Water @ 10 Ft. | 42 GPM |
| Gpm Of Water @ 2 Ft. | 47 GPM |
| Gpm Of Water @ 2 Ft. Of Head | 47 |
| Gpm Of Water @ 20 Ft. | 34 GPM |
| Gpm Of Water @ 30 Ft. | 23 GPM |
| Gpm Of Water @ 40 Ft. | 8 GPM |
| Gpm Of Water @ 5 Ft. | 45 GPM |
| Height | 9 1/2" |
| Housing Material | Cast Iron |
| Hp | 1/3 hp |
| Impeller Material | Cast Iron |
| Impeller Type | Open |
| Inlet Pressure | 75 psi |
| Inlet Size | 1 1/2" |
| Length | 16" |
| Max. Case Pressure | 75 psi |
| Max. Flow Rate @ 15 Ft. | 38 GPM |
| Max. Flow Rate @ Head | 47 GPM @ 2 ft. |
| Max. Head | 45 ft. |
| Max. Media Temp. | 200°F |
| Max. Pressure | 19.4 psi |
| Max. Solid Dia. | 3/8" |
| Max. Suction Lift | 6 ft. |
| Maximum Flow Rate @ 10 Feet Of Head | 42 GPM |
| Maximum Flow Rate @ 20 Feet Of Head | 34 GPM |
| Maximum Flow Rate @ 30 Feet Of Head | 23 GPM |
| Maximum Flow Rate @ 40 Feet Of Head | 8 GPM |
| Maximum Flow Rate @ 5 Feet Of Head | 45 GPM |
| Min. Flow Rate @ Head | 2 GPM @ 44 ft. |
| Min. Gpm @ Head | 2 GPM @ 44 ft. |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Type | Single Phase |
| Nameplate Voltage | 115/208-230V AC |
| Outlet Size | 1 1/2" |
| Outlet Type | NPT |
| Overall Height | 9 1/2" |
| Overall Length | 16" |
| Overall Width | 6.1" |
| Phase | 1 |
| Port Rotation | Single |
| Pump Housing Material | Cast Iron |
| Rpm | 3450 RPM |
| Rpm (maximum) | 3450 RPM |
| Screw Finish | Zinc Plated |
| Seal Application | Long Life When Not Run Dry Or Pumping Abrasives |
| Seal Material | Buna N, Carbon Ceramic, Stainless Steel |
| Seal Type | Mechanical |
| Service Factor | 1.15 |
| Shaft Material | Stainless Steel |
| Solid Diameter (maximum) | 0.38" |
| Specific Gravity | 1 |
| Voltage | 115/208/230V AC |
| Volute Material | Cast Iron |
| Wetted Material | Buna N, Carbon, Cast Iron, Ceramic, Stainless Steel |
| Width | 6.1" |
Shipping Info:
| Ship weight (kg) | 22.12 |
| Ship height (cm) | 24.13 |
| Ship length (cm) | 40.64 |
| Ship width (cm) | 15.49 |
| HS code | 8413702005 |
| Country of Origin | IN |
Product Variants
| Product | Model | Hp | Phase | Max. Suction Lift | Max. Head | Pump Housing Material | Compatible Intake Pipe Size | Compatible Discharge Pipe Size | Motor Enclosure Design | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
12N810 | 3 hp | 3 | 20 ft. | 65 ft. | Cast Iron | 3" | 3" | - | €2,282.60 | |
 |
12N811 | 3 hp | 3 | 20 ft. | 65 ft. | Stainless Steel | 3" | 3" | Totally Enclosed Fan Cooled | €4,688.58 | |
|
12N812 | 5 hp | 3 | 20 ft. | 88 ft. | Cast Iron | 3" | 3" | Totally Enclosed Fan Cooled | €2,550.95 | |
|
12N813 | 5 hp | 3 | 20 ft. | 88 ft. | Stainless Steel | 3" | 3" | Totally Enclosed Fan Cooled | €4,549.58 | |
|
12N814 | 7 1/2 hp | 3 | 20 ft. | 90 ft. | Cast Iron | 3" | 3" | Totally Enclosed Fan Cooled | €3,106.03 | |
|
12N815 | 7 1/2 hp | 3 | 20 ft. | 90 ft. | Stainless Steel | 3" | 3" | Totally Enclosed Fan Cooled | €4,854.46 | |
 |
30SPM10 | 3 hp | 1 | 25 ft. | 92.4 ft. | Cast Iron | 2 1/2" | 2" | Open Dripproof | €4,538.21 |
