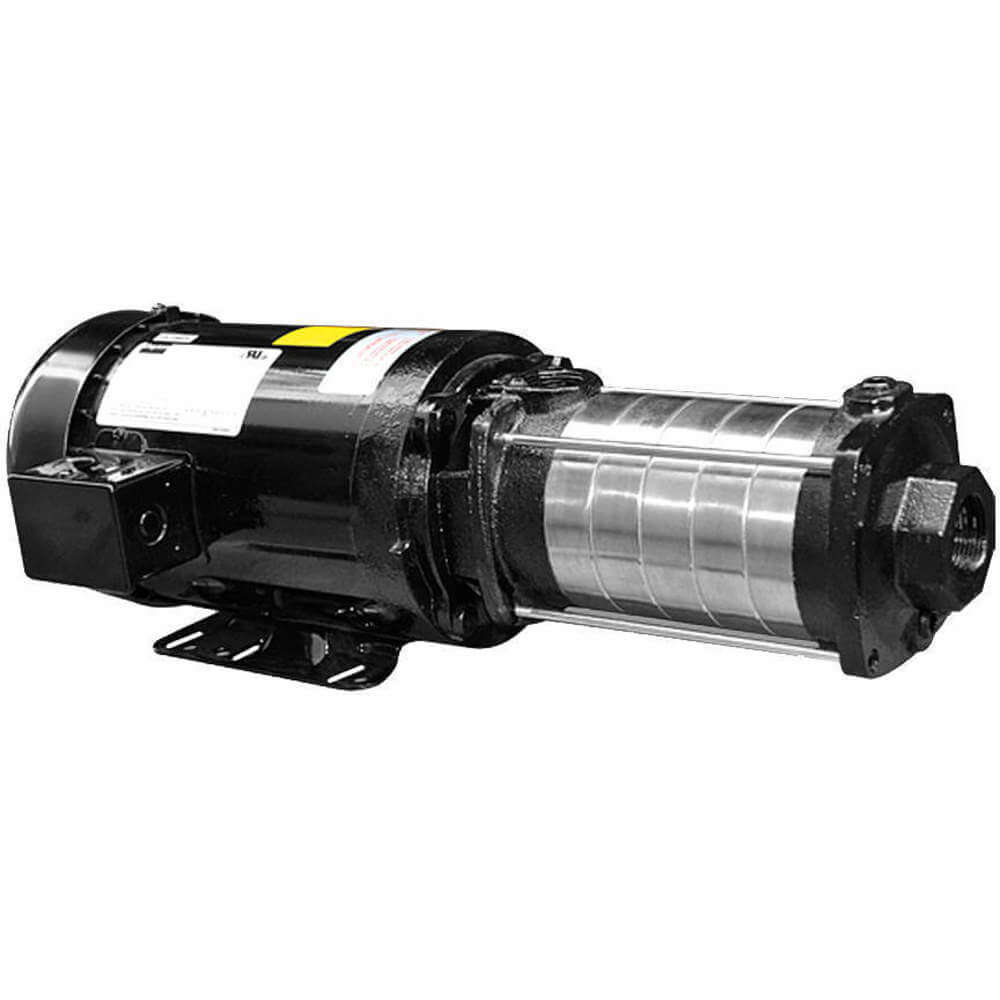

DAYTON 5UXG4 Booster Pump Multi-stage 3 Hp 6 Stages
Get it by Tuesday, Dec 23
10.00% off
€1,733.66 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Multi-Stage Booster Pump |
| Amps | 7.2/3.6A |
| Bearing Type | Ball |
| Best Efficiency Flow Range @ Head | 40 to 17 GPM @ 125 to 230 ft. |
| Best Efficiency Flow Rate @ Head | 30 GPM @ 180 ft. |
| Best Efficiency Flow Rate @ Psi | 30 GPM @ 78 Psi |
| Best Efficiency Gpm @ Psi | 30 @ 78 |
| Best Efficiency Pressure | 78 psi |
| Compatible Discharge Pipe Size | 1" |
| Compatible Intake Pipe Size | 1 1/4" |
| Compatible With Media Type | Non Flammable Liquids, Water |
| Connection Type | NPT |
| Discharge Type | NPT |
| Duty | Continuous |
| Duty Cycle | Continuous |
| Flow Rate @ 10 Psi | 54 GPM |
| Flow Rate @ 100 Psi | 17 GPM |
| Flow Rate @ 20 Psi | 51 GPM |
| Flow Rate @ 30 Psi | 48 GPM |
| Flow Rate @ 40 Psi | 45 GPM |
| Flow Rate @ 50 Psi | 41.5 GPM |
| Flow Rate @ 60 Psi | 38 GPM |
| Flow Rate @ 70 Psi | 34 GPM |
| Flow Rate @ 80 Psi | 29 GPM |
| Flow Rate @ 90 Psi | 23 GPM |
| For Media Type | Non-Flammable Liquids, Water |
| For Use With Potable Systems | No |
| Frame | 56J |
| Frequency | 60 Hz |
| Gpm @ 10 Psi | 54 |
| Gpm @ 100 Psi | 17 |
| Gpm @ 60 Psi | 38 |
| Gpm @ 80 Psi | 29 |
| Height | 7" |
| Housing Material | Cast Iron |
| Hp | 3 hp |
| Hp - Pumps | 3 hp |
| Impeller Design | Closed |
| Impeller Material | Cast Iron |
| Impeller Type | Closed |
| Includes | Manual |
| Inlet Size | 1 1/4" |
| Inlet Type | FNPT |
| Inlet/outlet | 1-1/4 x 1" FNPT |
| Intake And Discharge Size | 1 1/4", 1" |
| Intake Size | 1 1/4" |
| Length | 23" |
| Manufacturer Warranty Length | 1 yr. |
| Max. Ambient Temp. | 104°F |
| Max. Case Pressure | 150 psi |
| Max. Dia. Solids | 0.07" |
| Max. Media Temp. | 194°F |
| Max. Pressure | 121 psi |
| Max. Suction Lift | 5 ft. |
| Media Type | Non Flammable Liquids, Water |
| Min. Ambient Temp. | 40°F |
| Motor Ambient Temp. Rating | 40°C |
| Motor Ambient Temperature (maximum) | 104°F |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Speed | 3450 RPM |
| Motor Type | Three Phase |
| Mounting Orientation | Horizontal |
| Nameplate Voltage | 230/460V AC |
| No. Of Stages | 6 |
| Number Of Stages | 6 |
| Number Of Stages - Pumps | 6 |
| Outlet Size | 1" |
| Outlet Type | FNPT |
| Overall Height | 7" |
| Overall Length | 23" |
| Overall Width | 6 1/2" |
| Phase | 3 |
| Priming | Manual |
| Pump Housing Material | Cast Iron |
| Pumping Application | Dairy Walls And Floors, Lawn Sprinkling And Insecticide Spraying, Rinsing, Spray Cooling Equipment, Washing Buildings |
| Rpm (maximum) | 3450 RPM |
| Seal Application | Long Life When Not Run Dry Or Pumping Abrasives |
| Seal Material | Buna N, Carbon, Ceramic, Stainless Steel |
| Seal Type | Mechanical |
| Self Priming | Manual |
| Service Factor | 1.15 |
| Shaft Material | Stainless Steel |
| Shut Off Pressure | 121 psi |
| Shut Off Pressure (maximum) | 121 psi |
| Solid Diameter (maximum) | 0.07" |
| Stages | 6 |
| Suction Lift | 5 ft. |
| Type | Horizontal Multi Stage |
| Voltage | 208/230/460V AC |
| Wetted Material | Buna N, Carbon, Cast Iron, Ceramic, Stainless Steel |
| Wetted Materials | Buna N, Carbon, Cast Iron, Ceramic, Stainless Steel , Buna N, Cast Iron, Stainless Steel |
| Width | 6 1/2" |
Shipping Info:
| Ship weight (kg) | 30.6 |
| Ship height (cm) | 17.78 |
| Ship length (cm) | 58.42 |
| Ship width (cm) | 16.51 |
| HS code | 8413702040 |
| Country of Origin | IN |
Product Variants
| Product | Model | Hp | Phase | Compatible Intake Pipe Size | Compatible Discharge Pipe Size | Shut Off Pressure | Pump Housing Material | Number Of Stages | Connection Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
5UWH6 | 1/2 hp | 3 | 1 1/4" | 1 1/4" | 27 psi | Cast Iron | 2 | Flanged | €1,586.07 | |
|
5UWH8 | 3/4 hp | 3 | 1 1/4" | 1 1/4" | 27 psi | Cast Iron | 2 | Flanged | €1,643.68 | |
 |
5UWJ2 | 1 1/2 hp | 1 | 1 1/4" | 1 1/4" | 108 psi | Cast Iron | 8 | Flanged | €2,348.33 | |
 |
5UWJ3 | 2 hp | 1 | 1 1/4" | 1 1/4" | 148 psi | Cast Iron | 11 | Flanged | €2,928.32 | |
 |
5UWJ5 | 2 hp | 1 | 1 1/4" | 1 1/4" | 70 psi | Cast Iron | 5 | Flanged | €2,660.22 | |
 |
5UWJ7 | 1 hp | 3 | 1 1/4" | 1 1/4" | 66 psi | Cast Iron | 5 | Flanged | €1,892.80 | |
 |
5UWJ8 | 1 1/2 hp | 3 | 1 1/4" | 1 1/4" | 108 psi | Cast Iron | 8 | Flanged | €2,381.05 |
