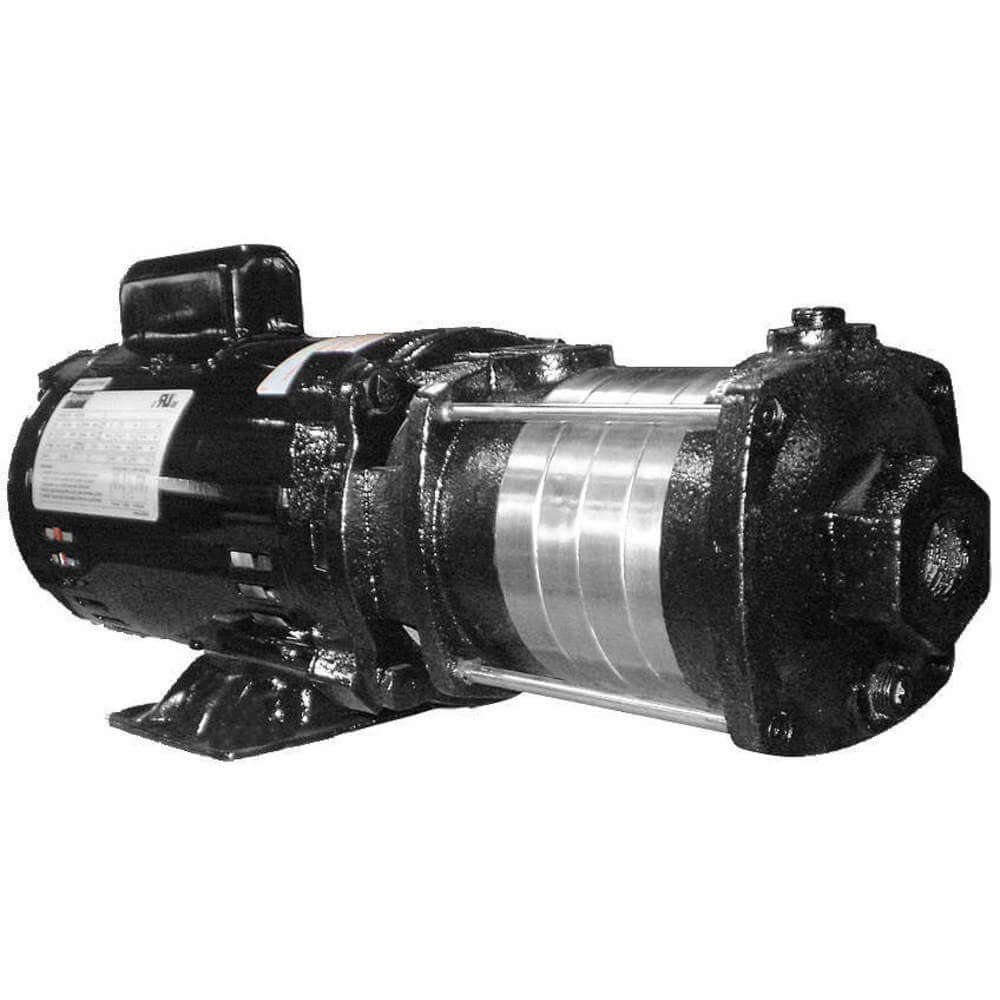

DAYTON 5UXF5 Booster Pump Multi-stage 3/4 Hp 5 Stages
Get it by Monday, Dec 22
10.00% off
€1,178.44 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Multi-Stage Booster Pump |
| Amps | 11.3/5.6A |
| Bearing Type | Ball |
| Best Efficiency Flow Range @ Head | 16 to 8 GPM @ 110 to 180 ft. |
| Best Efficiency Flow Rate @ Head | 12 GPM @ 150 ft. |
| Best Efficiency Flow Rate @ Psi | 12 GPM @ 64 Psi |
| Best Efficiency Gpm @ Psi | 12 @ 64 |
| Best Efficiency Pressure | 64 psi |
| Compatible Discharge Pipe Size | 3/4" |
| Compatible Intake Pipe Size | 3/4" |
| Compatible With Media Type | Non Flammable Liquids, Water |
| Connection Type | NPT |
| Discharge Type | NPT |
| Duty | Continuous |
| Duty Cycle | Continuous |
| Flow Rate @ 10 Psi | 20 GPM |
| Flow Rate @ 20 Psi | 19.5 GPM |
| Flow Rate @ 30 Psi | 18.6 GPM |
| Flow Rate @ 40 Psi | 17.5 GPM |
| Flow Rate @ 50 Psi | 15.7 GPM |
| Flow Rate @ 60 Psi | 13.5 GPM |
| Flow Rate @ 70 Psi | 10.5 GPM |
| Flow Rate @ 80 Psi | 7 GPM |
| Flow Rate @ 90 Psi | 2 GPM |
| For Media Type | Non-Flammable Liquids, Water |
| For Use With Potable Systems | No |
| Frame | 56J |
| Frequency | 60 Hz |
| Gpm @ 10 Psi | 20 |
| Gpm @ 60 Psi | 13.5 |
| Gpm @ 80 Psi | 7 |
| Height | 6 1/3" |
| Housing Material | Cast Iron |
| Hp | 3/4 hp |
| Hp - Pumps | 3/4 hp |
| Impeller Design | Closed |
| Impeller Material | Cast Iron |
| Impeller Type | Closed |
| Includes | Manual |
| Inlet Size | 3/4" |
| Inlet Type | FNPT |
| Inlet/outlet | 3/4" FNPT |
| Intake And Discharge Size | 3/4" |
| Intake Size | 3/4" |
| Length | 18 2/3" |
| Manufacturer Warranty Length | 1 yr. |
| Max. Ambient Temp. | 104°F |
| Max. Case Pressure | 150 psi |
| Max. Dia. Solids | 0.07" |
| Max. Media Temp. | 194°F |
| Max. Pressure | 93 psi |
| Max. Suction Lift | 5 ft. |
| Media Type | Non Flammable Liquids, Water |
| Min. Ambient Temp. | 40°F |
| Motor Ambient Temp. Rating | 40°C |
| Motor Ambient Temperature (maximum) | 104°F |
| Motor Enclosure - Pumps | Open Dripproof |
| Motor Enclosure Design | Open Dripproof |
| Motor Speed | 3450 RPM |
| Motor Type | Capacitor Start |
| Mounting Orientation | Horizontal |
| No. Of Stages | 5 |
| Number Of Stages | 5 |
| Number Of Stages - Pumps | 5 |
| Outlet Size | 3/4" |
| Outlet Type | FNPT |
| Overall Height | 6.31" |
| Overall Length | 18.69" |
| Overall Width | 6 1/2" |
| Phase | 1 |
| Priming | Manual |
| Pump Housing Material | Cast Iron |
| Pumping Application | City Water Mains, Cooling Water Systems, Irrigation |
| Rpm (maximum) | 3450 RPM |
| Seal Application | Long Life When Not Run Dry Or Pumping Abrasives |
| Seal Material | Buna N, Carbon, Ceramic, Stainless Steel |
| Seal Type | Mechanical |
| Self Priming | Manual |
| Shaft Material | Stainless Steel |
| Shut Off Pressure | 93 psi |
| Shut Off Pressure (maximum) | 93 psi |
| Solid Diameter (maximum) | 0.07" |
| Stages | 5 |
| Suction Lift | 5 ft. |
| Type | Horizontal Multi Stage |
| Voltage | 115/230V AC |
| Wetted Material | Buna N, Carbon, Cast Iron, Ceramic, Stainless Steel |
| Wetted Materials | Buna N, Carbon, Cast Iron, Ceramic, Stainless Steel , Buna N, Carbon, Ceramic, Cast Iron, Stainless Steel |
| Width | 6 1/2" |
Shipping Info:
| Ship weight (kg) | 19.06 |
| Ship height (cm) | 16.03 |
| Ship length (cm) | 47.47 |
| Ship width (cm) | 16.51 |
| HS code | 8413702040 |
| Country of Origin | IN |
Product Variants
| Product | Model | Hp | Phase | Compatible Intake Pipe Size | Compatible Discharge Pipe Size | Shut Off Pressure | Pump Housing Material | Number Of Stages | Connection Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
5UWH6 | 1/2 hp | 3 | 1 1/4" | 1 1/4" | 27 psi | Cast Iron | 2 | Flanged | €1,586.07 | |
|
5UWH8 | 3/4 hp | 3 | 1 1/4" | 1 1/4" | 27 psi | Cast Iron | 2 | Flanged | €1,643.68 | |
 |
5UWJ2 | 1 1/2 hp | 1 | 1 1/4" | 1 1/4" | 108 psi | Cast Iron | 8 | Flanged | €2,348.33 | |
 |
5UWJ3 | 2 hp | 1 | 1 1/4" | 1 1/4" | 148 psi | Cast Iron | 11 | Flanged | €2,928.32 | |
 |
5UWJ5 | 2 hp | 1 | 1 1/4" | 1 1/4" | 70 psi | Cast Iron | 5 | Flanged | €2,660.22 | |
 |
5UWJ7 | 1 hp | 3 | 1 1/4" | 1 1/4" | 66 psi | Cast Iron | 5 | Flanged | €1,892.80 | |
 |
5UWJ8 | 1 1/2 hp | 3 | 1 1/4" | 1 1/4" | 108 psi | Cast Iron | 8 | Flanged | €2,381.05 |
