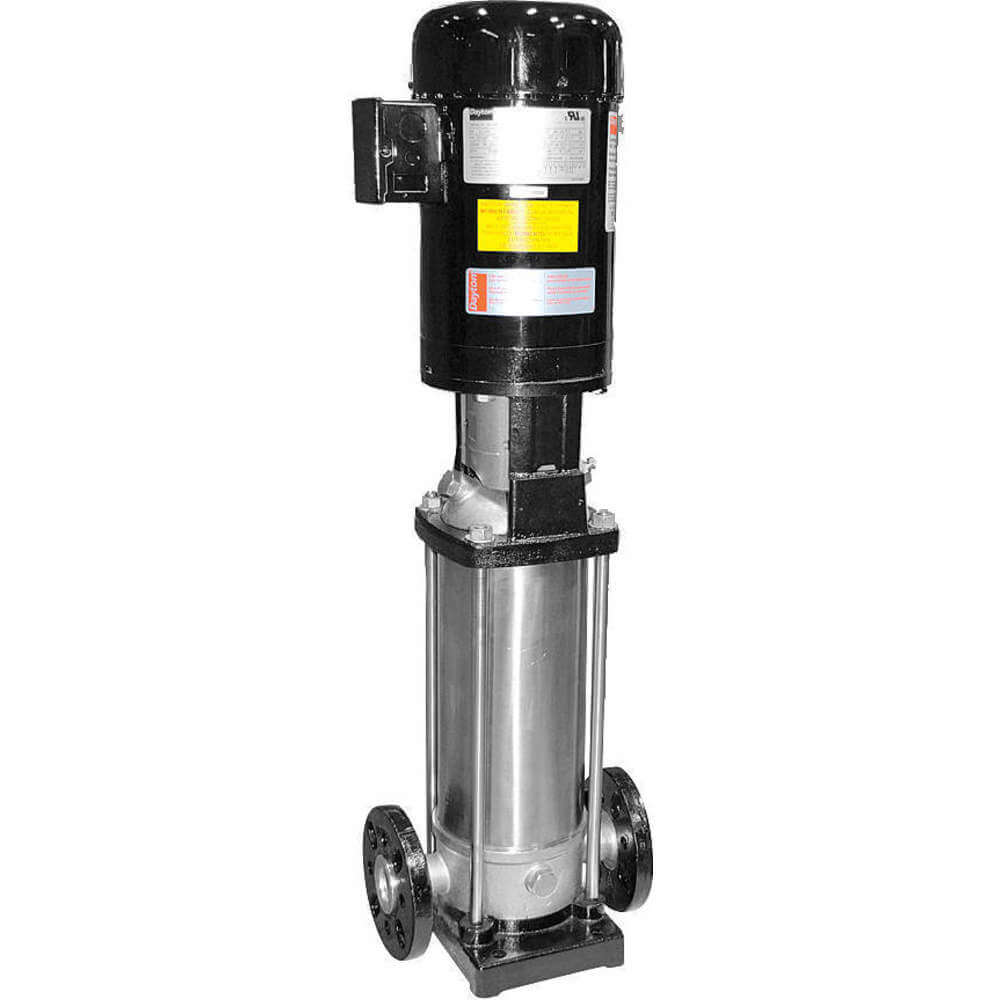

DAYTON 5UWL6 Booster Pump 3 Hp 3-phase 17 Stages
Get it by Tuesday, Dec 23
10.00% off
€3,763.36 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Multi-Stage Booster Pump |
| Amps | 8.4/4.2A |
| Bearing Type | Ball |
| Best Efficiency Flow Range @ Head | 23 to 6 GPM @ 225 to 507 ft. |
| Best Efficiency Flow Rate @ Head | 16 GPM @ 380 ft. |
| Best Efficiency Flow Rate @ Psi | 16 GPM @ 164 Psi |
| Best Efficiency Gpm @ Psi | 16 @ 164 |
| Best Efficiency Pressure | 164 psi |
| Compatible Discharge Pipe Size | 1 1/4" |
| Compatible Intake Pipe Size | 1 1/4" |
| Connection Type | Flange |
| Connector Size | 1/2" |
| Connector Type | BSP |
| Diffuser Material | Stainless Steel |
| Discharge Flange Size | 1 1/4" |
| Discharge Type | Flange |
| Duty | Continuous |
| Duty Cycle | Continuous |
| Flow Rate @ 100 Psi | 22 GPM |
| Flow Rate @ 120 Psi | 20 GPM |
| Flow Rate @ 140 Psi | 18 GPM |
| Flow Rate @ 160 Psi | 16 GPM |
| Flow Rate @ 180 Psi | 13 GPM |
| Flow Rate @ 200 Psi | 10 GPM |
| For Media Type | Non-Abrasive Liquids, Water |
| For Use With Potable Systems | No |
| Frame | 56C |
| Frequency | 60 Hz |
| Gpm @ 100 Psi | 22 |
| Gpm @ 120 Psi | 20 |
| Gpm @ 140 Psi | 18 |
| Gpm @ 160 Psi | 16 |
| Gpm @ 180 Psi | 13 |
| Gpm @ 200 Psi | 10 |
| Height | 33 5/8" |
| Housing Material | Stainless Steel |
| Hp | 3 hp |
| Hp - Pumps | 3 hp |
| Impeller Design | Closed |
| Impeller Material | Stainless Steel |
| Impeller Type | Closed |
| Includes | Manual |
| Inlet Size | 1 1/4" |
| Inlet Type | FNPT |
| Inlet/outlet | 1-1/4" FNPT |
| Intake Size | 1 1/4" |
| Intake Type | Flange |
| Length | 9 7/8" |
| Manufacturer Warranty Length | 1 yr. |
| Max. Ambient Temp. | 104°F |
| Max. Case Pressure | 245 psi |
| Max. Dia. Solids | 0.07" |
| Max. Media Temp. | 248°F |
| Max. Pressure | 230 psi |
| Min. Ambient Temp. | 40°F |
| Motor Ambient Temp. Rating | 40°C |
| Motor Ambient Temperature (maximum) | 104°F |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Frame Designation | 56C |
| Motor Speed | 3450 RPM |
| Motor Type | Three Phase |
| Mounting Orientation | Vertical |
| Nameplate Voltage | 230/460V AC |
| No. Of Stages | 17 |
| Number Of Stages | 17 |
| Number Of Stages - Pumps | 17 |
| Outlet Size | 1 1/4" |
| Outlet Type | FNPT |
| Overall Height | 33.63" |
| Overall Length | 9 22/25" |
| Overall Width | 9" |
| Phase | 3 |
| Plug Or Connector Type | 1/2" BSP THD. |
| Pump Housing Material | Stainless Steel |
| Pump Mounting Position | Horizontal |
| Pumping Application | City Water Mains, Cooling Water Systems, Irrigation |
| Rpm (maximum) | 3450 RPM |
| Seal Application | Non-Flammable Liquids Compatible With Pump Components |
| Seal Material | EPDM, Silicon Carbide, Stainless Steel |
| Seal Type | Balanced Cartridge |
| Service Factor | 1.15 |
| Shaft Material | Stainless Steel |
| Shut Off Pressure | 230 psi |
| Shut Off Pressure (maximum) | 230 psi |
| Solid Diameter (maximum) | 0.07" |
| Stages | 17 |
| Suction Lift | 0 ft. |
| Suction Lift (maximum) | 0 ft. |
| Type | Vertical Multi Stage |
| Voltage | 208/230/460V AC |
| Wetted Material | EPDM, Silicon Carbide, Stainless Steel |
| Width | 9" |
Shipping Info:
| Ship weight (kg) | 44.91 |
| Ship height (cm) | 85.42 |
| Ship length (cm) | 25.1 |
| Ship width (cm) | 22.86 |
| HS code | 8413702040 |
| Country of Origin | IN |
Product Variants
| Product | Model | Hp | Phase | Compatible Intake Pipe Size | Compatible Discharge Pipe Size | Shut Off Pressure | Pump Housing Material | Number Of Stages | Connection Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
5UWH6 | 1/2 hp | 3 | 1 1/4" | 1 1/4" | 27 psi | Cast Iron | 2 | Flanged | €1,586.07 | |
|
5UWH8 | 3/4 hp | 3 | 1 1/4" | 1 1/4" | 27 psi | Cast Iron | 2 | Flanged | €1,643.68 | |
 |
5UWJ2 | 1 1/2 hp | 1 | 1 1/4" | 1 1/4" | 108 psi | Cast Iron | 8 | Flanged | €2,348.33 | |
 |
5UWJ3 | 2 hp | 1 | 1 1/4" | 1 1/4" | 148 psi | Cast Iron | 11 | Flanged | €2,928.32 | |
 |
5UWJ5 | 2 hp | 1 | 1 1/4" | 1 1/4" | 70 psi | Cast Iron | 5 | Flanged | €2,660.22 | |
 |
5UWJ7 | 1 hp | 3 | 1 1/4" | 1 1/4" | 66 psi | Cast Iron | 5 | Flanged | €1,892.80 | |
 |
5UWJ8 | 1 1/2 hp | 3 | 1 1/4" | 1 1/4" | 108 psi | Cast Iron | 8 | Flanged | €2,381.05 |
