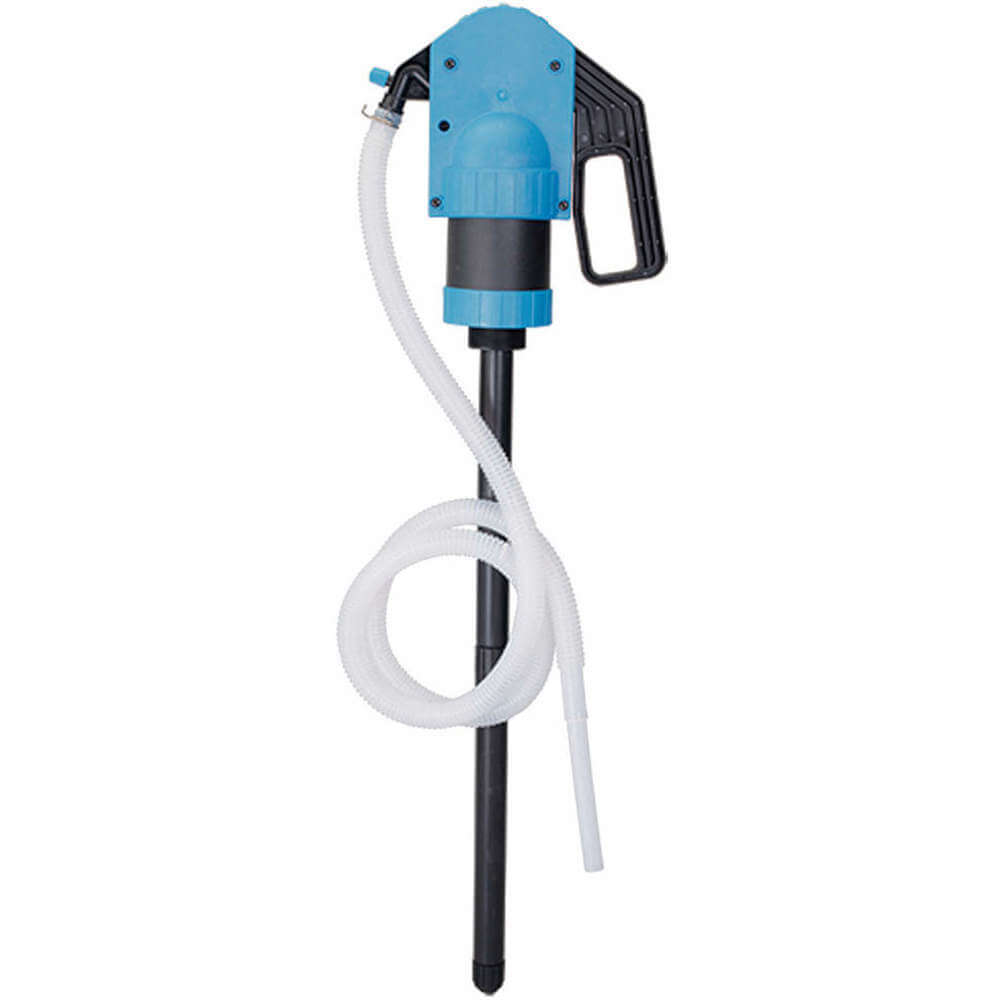

DAYTON 5UWG7 Drum Pump Lever 17 Ounce Per Stroke
Item: AE6TAFModel: 5UWG7
7 In Stock
Ships within 2 days via
10.00% off
€99.34 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Hand Operated Drum Pump |
| Action Type | Lever |
| Adapter Dia. | 2" |
| Adapter Material | Polyacetal |
| Adapter Size | 2" |
| Bung Connection Dia. | 2" |
| Compatible Chemicals | Antifreeze (Coolant), DEF, Deionized Water, Fertilizers, Fresh Water, Fungicides, Herbicides, Salt Water, Windshield Washer Fluid |
| Discharge Tube Inside Dia. | 3/4" |
| Discharge Tube Length | 78 3/4" |
| Discharge Tube Outlet I.d. | 3/4" |
| Discharge Tube Outlet Id Size | 3/4" |
| Discharge Tube Outlet O.d. | 1" |
| Discharge Tube Outlet Od Size | 1-3/64" |
| Discharge Tubing Material | Polyethylene |
| Features | Built-In Lock Nut For Positioning Pump Outlet In Any Direction. Pump Outlet Has Air Vent For Stopping Siphon Action. |
| Fits Container Size | 15 gal., 55 gal. |
| For Container Type | Bucket, Drum, Pail |
| For Use On | 15 To 55 Gal. Drums |
| For Use With | Antifreeze, Detergents, Herbicides, Lubricants, Pesticides, Soaps, Urea And DEF, Water Based Media, Windshield Washer |
| Gasket Material | Polyacetal |
| Height | 4" |
| Hose Inside Dia. | 1" |
| Hose Outside Dia. | 1 3/64" |
| Housing Material | Polyacetal |
| Includes | Telescopic Suction Tube And Discharge Hose |
| Includes Bung Adapter | Yes |
| Includes Discharge Hose | Yes |
| Includes Nozzle | No |
| Includes Suction Tube | Yes |
| Inlet Size | 3/4" |
| Inlet Type | FNPT |
| Length | 13" |
| Max. Head | 6 ft. |
| Max. Pressure | 10 psi |
| Max. Temp. | 113°F |
| Max. Viscosity | 1000 SUS |
| Metered | No |
| Not Recommended Chemicals | Diesel Fuel, Ethyl (Ethanol), Gasoline, Isopropyl (Isopropanol), Kerosene, Lithium Grease, Methyl Ethyl Ketone (Mek), Sodium Hypochlorite/Bleach (To 20%) |
| Ounces Per Stroke | 17 oz. |
| Outlet Material | Polyethylene |
| Overall Length | 13" |
| Piston Material | Polyacetal |
| Power Source | Hand Operated |
| Seal Material | Viton |
| Self Priming | Yes |
| Self-priming | Yes |
| Suction Tube Length | 13 3/4" to 38 1/2" |
| Suction Tube O.d. | 1 1/8" |
| Suction Tube Outlet O.d. Size | 1-1/8" |
| Suction Tube Outside Dia. | 1 1/8" |
| Suction Tube Type | Telescopic |
| Wetted Material | Polyacetal, Polypropylene, Polyethylene, Viton |
Shipping Info:
| Ship weight (kg) | 1.24 |
| Ship height (cm) | 39.37 |
| Ship length (cm) | 21.59 |
| Ship width (cm) | 16 |
| HS code | 8413200000 |
| Country of Origin | IN |
Product Variants
| Product | Model | Max. Viscosity | Includes Suction Tube | For Container Size | Diesel Exhaust Fluid Compatible | Includes Discharge Hose | Includes Nozzle | Includes Bung Adapter | Metered | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
2RUK2 | 1500 SUS | Yes | 15 gal., 30 gal., 55 gal. | - | Yes | Yes | Yes | No | €402.19 | |
 |
38Y792 | 2000 SUS | Yes | 15 gal., 30 gal., 55 gal. | - | No | No | Yes | No | €361.69 | |
 |
3BY44 | 4000 SUS | Yes | 15 gal., 30 gal., 55 gal. | - | Yes | No | Yes | No | €60.55 | |
 |
4HA26 | 1500 SUS | Yes | 15 gal., 30 gal., 55 gal. | - | No | No | Yes | No | €138.51 | |
 |
4HA33 | 4000 SUS | Yes | 15 gal., 30 gal., 55 gal. | - | No | No | Yes | No | €40.09 | |
 |
4VCR2 | 2000 SUS | Yes | 15 gal., 30 gal., 55 gal. | - | No | No | Yes | - | €182.42 | |
 |
4VCR3 | 2000 SUS | Yes | 15 gal., 30 gal., 55 gal. | - | Yes | Yes | Yes | No | €306.55 |
