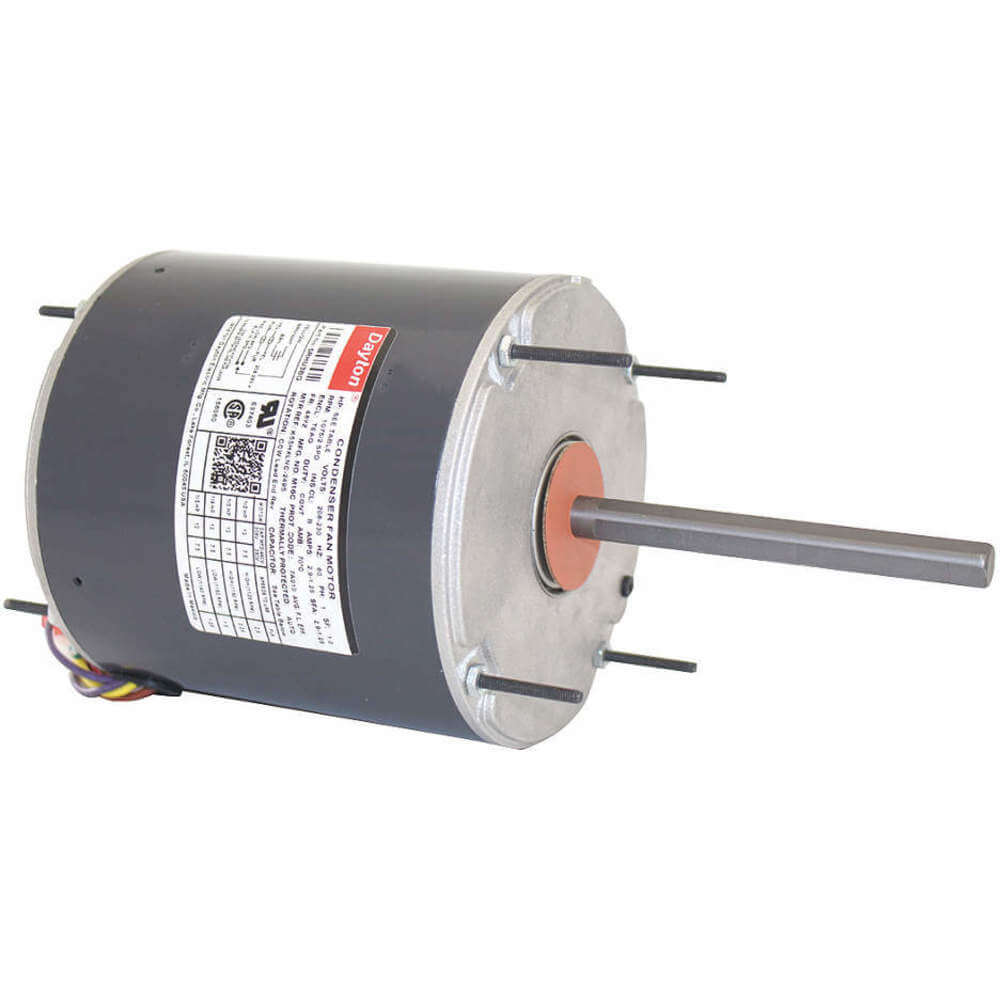

DAYTON 5RHU4 Condenser Fan Motor 1/3 1/6 Hp 825 Rpm
Get it by Wednesday, Dec 24
€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
10.00% off
€392.00 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Condenser Fan Motor |
| Ambient Temp. | 70°C |
| Bearing Type | Ball |
| Body Dia. | 5 5/8" |
| Bolt Circle Dia. | 5 1/8" |
| Capacitor Required | 2MDV6, 2MDV7 |
| Dia. | 5 5/8" |
| Diameter | 5 5/8" |
| Duty Cycle | Continuous |
| Efficiency | 62% |
| Enclosure Type | Totally Enclosed Air Over |
| Features | Reversing Plug, Totally Enclosed Endshields And Shell |
| Frame | 48YZ |
| Frequency | 60 Hz |
| Full Load Amps | 1-1.9A |
| Hp | 1/6 hp to 1/3 hp |
| Insulation Class | Class B |
| Lead Length | 48" |
| Length | 10 13/16" |
| Length Less Shaft | 5 1/4" |
| Max. Ambient Temp. | 70°C |
| Motor Application | HVAC/R |
| Motor Bearings | Ball |
| Motor Design | Permanent Split Capacitor |
| Motor Enclosure Design | Totally Enclosed Air Over |
| Motor Mounting Position | All Angle |
| Motor Mounting Type | Stud |
| Motor Mounting Type | Extended Studs |
| Motor Service Factor | 1 |
| Motor Shaft Design | Double Flat |
| Motor Shaft Rotation | Clockwise/Counter Clockwise |
| Motor Shaft Rotation | CW/CCW |
| Motor Sub Application | Condenser Fan |
| Motor Thermal Protection | Auto |
| Motor Type | Permanent Split Capacitor |
| Mounting Stud Length | 3/4", 1 1/4" |
| Mounting Stud Pattern | 3 5/8" x 3 5/8" |
| Mounting Stud Size | #8-32 |
| Mounting Type | Extended Studs |
| No. Of Speeds | 2 |
| No. Of Studs | 4 |
| Nominal Efficiency | 62% |
| Overall Length | 10 13/16" |
| Phase | 1 |
| Rpm | 825 RPM |
| Service Factor | 1 |
| Shaft Dia. | 1/2" |
| Shaft Length | 5" |
| Shaft Orientation | All Angle |
| Shaft Type | Double Flat |
| Stud Location | Shaft End, Opposite Shaft End |
| Stud Pattern | 3 5/8" x 3 5/8" |
| Stud Quantity | 4 |
| Stud Size | 8-32 UNF-2A x 1 1/4" (Shaft-End) & 3/4" (Opposite Shaft-End) |
| Thermal Protection | Automatic |
| Thread Fit | Class 2A |
| Thread Type | Fine |
| Voltage | 208-230V AC |
Shipping Info:
| Ship weight (kg) | 8.53 |
| Ship height (cm) | 18.54 |
| Ship length (cm) | 36.07 |
| Ship width (cm) | 18.8 |
| HS code | 8501404040 |
| Country of Origin | US |
Product Variants
| Product | Model | Voltage | Motor Design | Motor Mounting Type | Motor Mounting Position | Shaft Length | No. Of Speeds | Phase | Hp | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
FE1016SF | 208-230V AC | Permanent Split Capacitor | Stud | All Angle | 6" | 1 | 1 | 1/6 hp | €215.92 | |
 |
FE1018SF | 208-230V AC | Permanent Split Capacitor | Stud | All Angle | 6 1/2" | 1 | 1 | 1/6 hp | €353.82 | |
|
FE1028SF | 208-230V AC | Permanent Split Capacitor | Stud | All Angle | 6 1/2" | 1 | 1 | 1/4 hp | €363.43 | |
|
FE1058SF | 208-230V AC | Permanent Split Capacitor | Stud | All Angle | 6 1/2" | 1 | 1 | 1/2 hp | €469.51 | |
 |
FEH1056SF | 460V AC | Permanent Split Capacitor | Stud | All Angle | 6 1/2" | 1 | 1 | 1/2 hp | €338.83 | |
 |
FC3056F | 200-230/460V AC | 3-Phase | Band | Vertical Shaft Up | 3 7/8" | 1 | 3 | 1/2 hp | €611.12 | |
 |
3LU93 | 208-230V AC | Permanent Split Capacitor | Stud | All Angle | 6" | 2 | 1 | 1/6 hp | €315.80 |
