DAYTON 5RGV7 Pump Fountain 2 HP 230V
Get it by Tuesday, Dec 23
10.00% off
€2,754.62 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Fountain Pump |
| Amps | 11A |
| Cord Length | 12 ft. |
| Discharge Rotation | 90° Increments |
| Discharge Size | 1 1/4" |
| Discharge Type | NPT |
| Duty Cycle | Continuous |
| Electrical Connection Type | Plug In |
| Equivalent Psi | 29.3 |
| Flow Rate (maximum) | 132 GPM |
| Frequency | 60 Hz |
| Full Load Amps | 11A |
| Full Load Watts | 2530 W |
| Full Load Watts | 2530 |
| Gph Of Water @ 10 Ft. Of Head | 7920 GPH |
| Gph Of Water @ 20 Ft. Of Head | 6720 |
| Height | 8.9" |
| Housing Material | Brass |
| Hp | 2 hp |
| Impeller Material | Brass |
| Inlet Type | Screened |
| Intake Type | Screened |
| Length | 15 4/5" |
| Max. Flow Rate | 135 GPM |
| Max. Flow Rate @ 10 Ft. | 132 GPM |
| Max. Flow Rate @ 15 Ft. | 122 GPM |
| Max. Flow Rate @ 20 Ft. | 6720 GPH |
| Max. Flow Rate @ 30 Ft. | 103 GPM |
| Max. Flow Rate @ 5 Ft. | 135 GPM |
| Max. Gpm For Water | 135 |
| Max. Head | 68 ft. |
| Max. Solid Dia. | 1/8" |
| Maximum Flow Rate @ 20 Feet Of Head | 112 GPM |
| Maximum Flow Rate @ 5 Feet Of Head | 135 GPM |
| Min. Flow Rate | 103 GPM |
| Min. Head | 10 ft. |
| Motor Housing Material | Plated Steel |
| Motor Housing Material | Steel |
| Motor Type | Permanent Split Capacitor |
| Nameplate Voltage | 230V AC |
| Outlet Rotation | 90 Deg. Increments |
| Outlet Size | 1 1/4" |
| Outlet Type | FNPT |
| Overall Height | 8.9" |
| Overall Length | 15.8" |
| Overall Width | 8 1/2" |
| Overload Protection | Yes |
| Overload Thermal Protection | Yes |
| Port Rotation | 90 Deg. Increments |
| Pressure | 29.3 psi |
| Pump Housing Material | Brass |
| Pump Material | Brass |
| Pump Type | Fountain Pump |
| Rpm | 3450 RPM |
| Rpm (maximum) | 3450 RPM |
| Screen Material | Stainless Steel |
| Seal Material | Buna N, Carbon Ceramic |
| Shaft Material | Stainless Steel |
| Solid Diameter (maximum) | 0.13" |
| Submersible | Yes |
| Volute Material | Brass |
| Wattage | 2530 W |
| Width | 8 1/2" |
Shipping Info:
| Ship weight (kg) | 27.23 |
| Ship height (cm) | 22.61 |
| Ship length (cm) | 40.13 |
| Ship width (cm) | 21.59 |
| HS code | 8413702004 |
| Country of Origin | CN |
Product Details:
- Installation Position (Horizontal)
Product Variants
| Product | Model | Hp | Nameplate Voltage | Max. Head | Cord Length | Max. Flow Rate @ 5 Ft. | Max. Flow Rate @ 10 Ft. | Max. Flow Rate @ 15 Ft. | Impeller Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
|

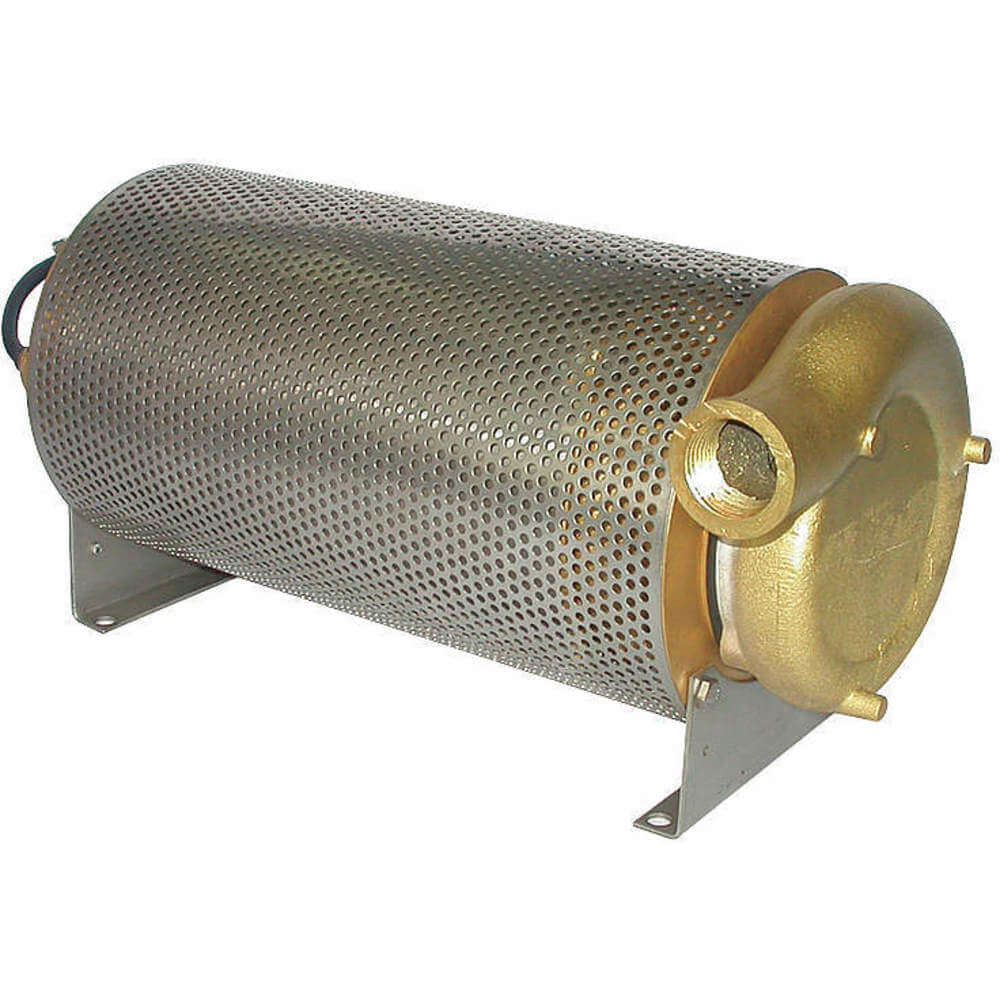

5RGV5 | 3/4 hp | 230V AC | 50 ft. | 12 ft. | 100 GPM | 98 GPM | 92 GPM | Brass | €1,910.11 | |
|
5RGV6 | 1 1/2 hp | 230V AC | 60 ft. | 12 ft. | 117 GPM | 115 GPM | 109 GPM | Brass | €2,742.04 | |
|
5RWG2 | 1/2 hp | 120V AC | 43 ft. | 12 ft. | 80 GPM | 78 GPM | - | Brass | €1,841.59 | |
|
5RWG3 | 3/4 hp | 120V AC | 50 ft. | 12 ft. | 100 GPM | 98 GPM | 92 GPM | Brass | €2,139.33 | |
|
5RWG4 | 1 hp | 230V AC | 55 ft. | 12 ft. | 108 GPM | 105 GPM | 99 GPM | Brass | €1,784.69 | |
 |

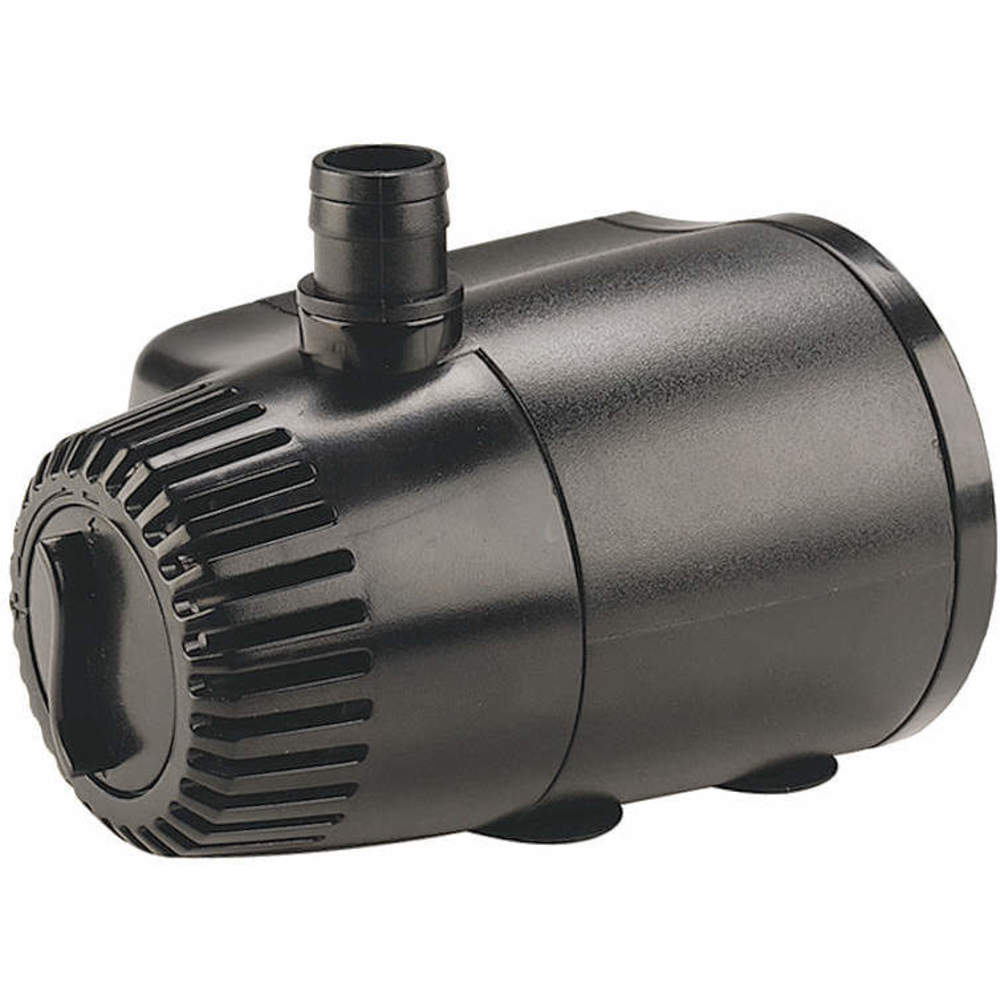

PF185AS | 1/64 hp | 120V AC | 4.1 ft. | 16 ft. | - | - | - | ABS | €100.77 | |
 |

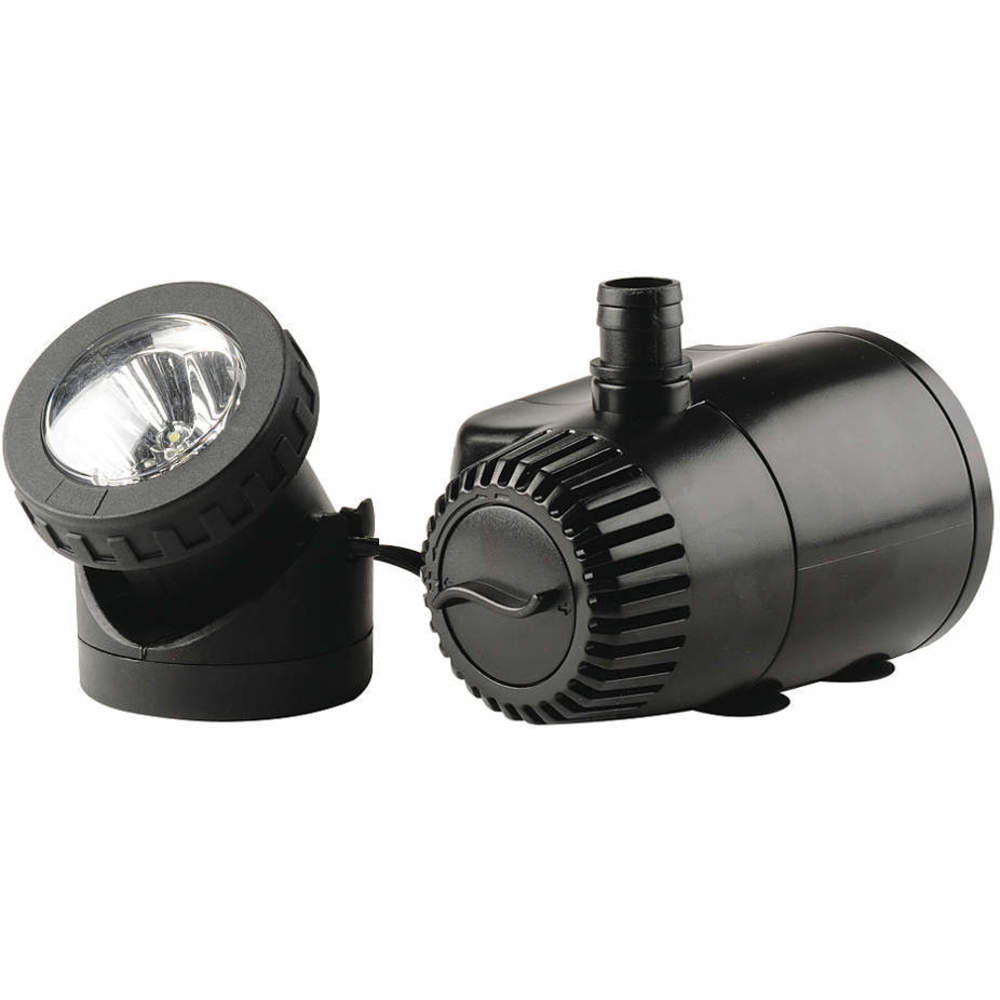

PF185ASL | 1/64 hp | 120V AC | 4.1 ft. | 16 ft. | - | - | - | ABS | €98.89 |
