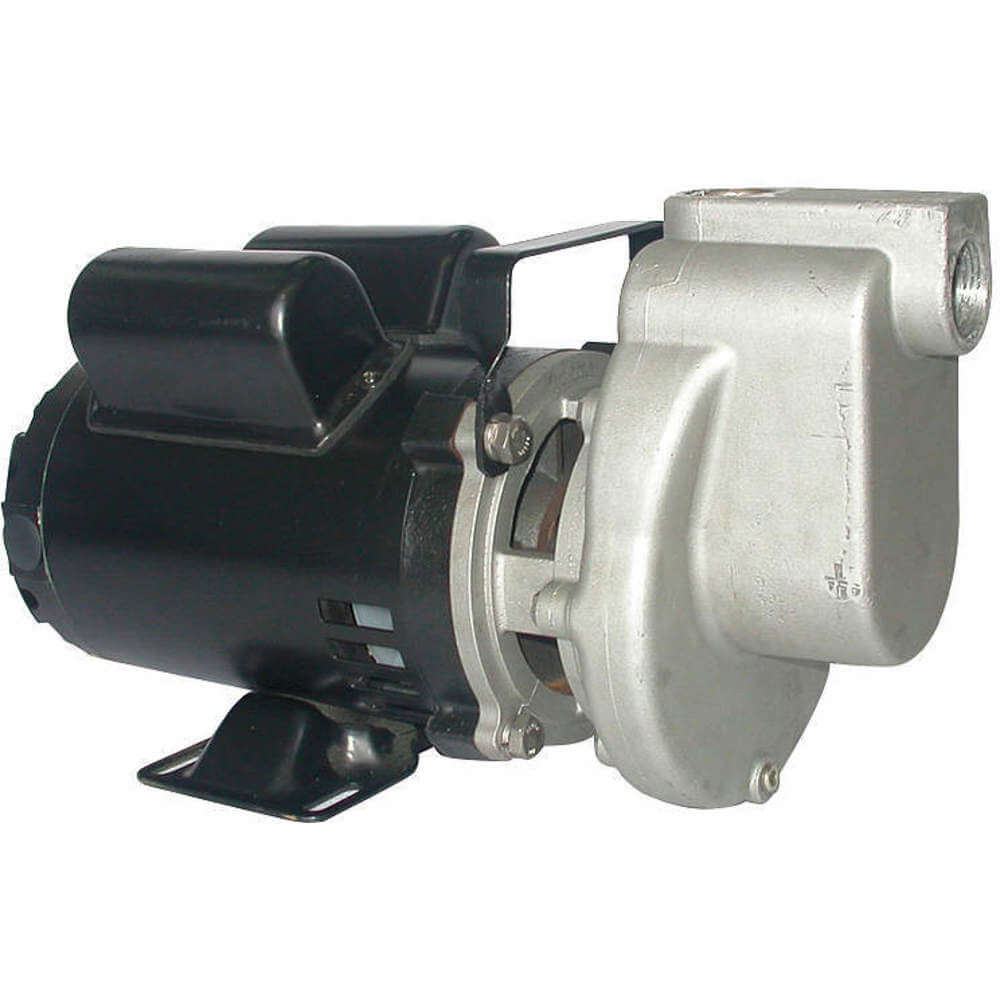

DAYTON 5PXY0 Portable Utility Pump 1/2 Hp 115v
Get it by Wednesday, Dec 24
10.00% off
€749.25 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Utility Pump |
| Amps | 7.5A |
| Bearing Type | Ball |
| Best Efficiency Flow | 15-24 GPM |
| Best Efficiency Flow Rate | 15-24 GPM |
| Best Efficiency Gpm @ Head | 17 GPM @ 37 ft. |
| Best Efficiency Head | 30 ft. to 40 ft. |
| Best Efficiency Range Gpm @ Head | 24 GPM @ 30-15 GPM @ 40 ft. |
| Compatible Discharge Pipe Size | 1" |
| Compatible Intake Pipe Size | 1" |
| Connection Type | NPT |
| Cord | 8 ft. |
| Discharge Type | NPT |
| Drain Plug | Yes |
| Duty Cycle | Continuous |
| Flow Rate @ 10 Ft. | 38 GPM |
| Flow Rate @ 20 Ft. | 32 GPM |
| Flow Rate @ 30 Ft. | 24 GPM |
| Flow Rate @ 35 Ft. | 20 GPM |
| Flow Rate @ 40 Ft. | 6 GPM |
| Flow Rate @ 5 Ft. | 41 GPM |
| For Use With Potable Systems | No |
| Frame | 56J |
| Frequency | 60 Hz |
| Gpm Of Water @ 35 Ft. Of Head | 20 |
| Housing Material | Aluminum |
| Hp | 1/2 hp |
| Impeller Material | Aluminum |
| Impeller Type | Open |
| Includes | (2) 1" NPT X 3/4" Thermoplastic Garden Hose Adapters |
| Inlet Pressure | 50 psi |
| Inlet Size | 1" |
| Max. Case Pressure | 75 psi |
| Max. Flow Rate @ 15 Ft. | 35 GPM |
| Max. Head | 46 ft. |
| Max. Liquid Temp. | 180°F |
| Max. Pressure | 25 psi |
| Max. Solid Dia. | 0.13" |
| Max. Suction Lift | 6 ft. |
| Maximum Flow Rate @ 10 Feet Of Head | 38 GPM |
| Maximum Flow Rate @ 20 Feet Of Head | 32 GPM |
| Maximum Flow Rate @ 30 Feet Of Head | 24 GPM |
| Maximum Flow Rate @ 40 Feet Of Head | 6 GPM |
| Maximum Flow Rate @ 5 Feet Of Head | 41 GPM |
| Media Temperature (maximum) | 180°F |
| Motor Enclosure Design | Open Dripproof |
| Motor Type | Capacitor Start |
| Outlet Size | 1" |
| Outlet Type | NPT |
| Overall Height | 8 1/2" |
| Overall Width | 7" |
| Phase | 1 |
| Power Cord Length | 8 ft. |
| Pump Housing Material | Aluminum |
| Rpm | 3450 RPM |
| Screw Material | Stainless Steel |
| Seal Application | Non-Flammable Liquids Compatible With Pump Components |
| Seal Material | Buna N, Carbon Ceramic, Stainless Steel |
| Seal Type | Mechanical |
| Self Priming | Yes |
| Service Factor | 1 |
| Shaft Material | Stainless Steel |
| Specific Gravity | 1 |
| Suction Lift | 6 ft. |
| Type | Self Priming |
| Voltage | 115V AC |
| Volute Material | Aluminum |
| Wetted Material | Aluminum, Buna N, Carbon Ceramic, Stainless Steel |
Shipping Info:
| Ship weight (kg) | 10.89 |
| Ship height (cm) | 21.59 |
| Ship length (cm) | 38.1 |
| Ship width (cm) | 17.78 |
| HS code | 8413702005 |
| Country of Origin | CN |
Product Variants
| Product | Model | Housing Material | Outlet Size | Impeller Material | Max. Suction Lift | Power Cord Length | Suction Lift | Max. Case Pressure | Inlet Size | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
3YU60 | Non Metallic | 1" | Thermoplastic | 25 ft. | 10 ft. | 25 ft. | 58 psi | 1" | €510.91 | |
 |
4CUK6 | Stainless Steel | 1" | Thermoplastic | 25 ft. | 6 ft. | 25 ft. | 96 psi | 1" | €431.44 | |
 |
33RW83 | Cast Iron | 3/4" | Fiberglass, Nylon | 15 ft. | 20 ft. | 20 ft. | 100 psi | 3/4" | €467.38 |
