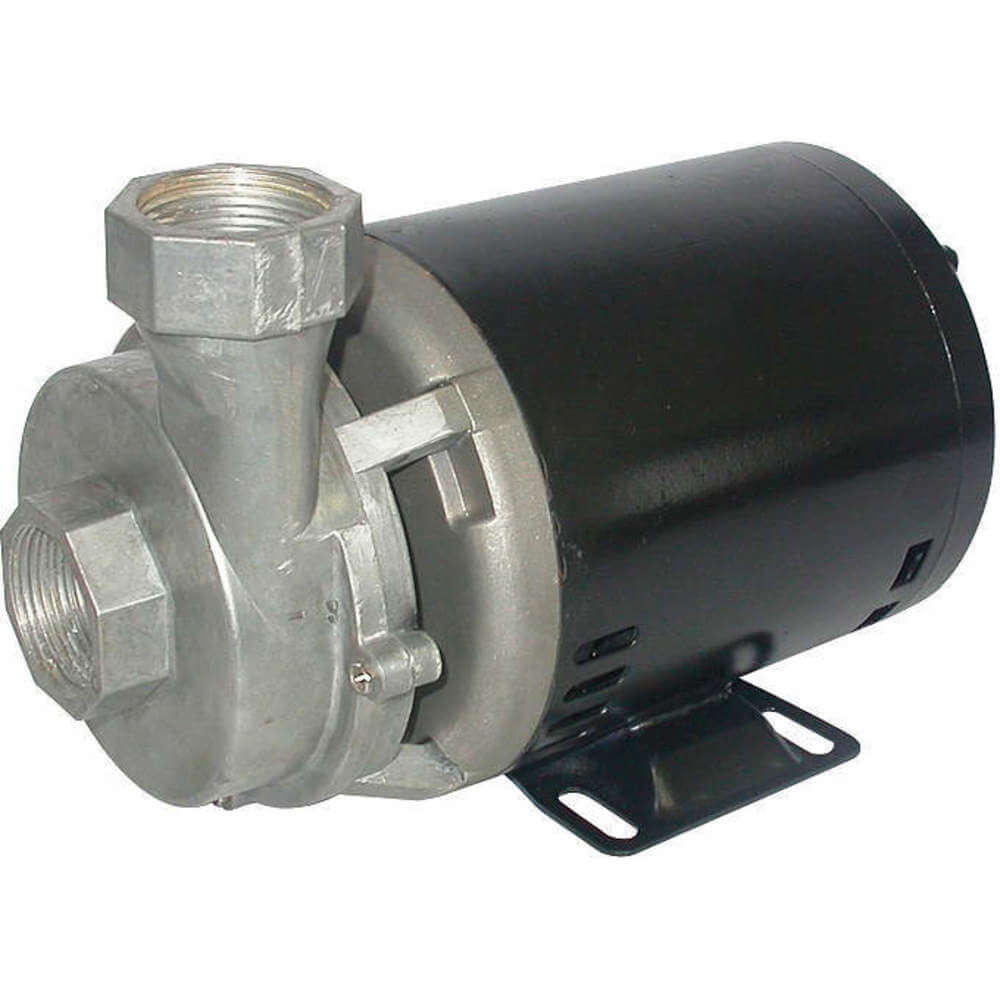

DAYTON 5PXX9 Centrifugal Pump 1/4 Hp 115/1/60
Get it by Thursday, Dec 25
€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
10.00% off
€437.66 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Centrifugal Pump |
| Amps | 4.5A |
| Bearing Type | Ball |
| Best Efficiency Flow | 10 GPM |
| Best Efficiency Flow Rate | 10 GPM |
| Best Efficiency Head | 8 ft. |
| Best Efficiency Range Gpm @ Head | 4-23 GPM @ 10-2 ft. |
| Compatible Discharge Pipe Size | 1 1/4" |
| Compatible Intake Pipe Size | 1 1/4" |
| Connection Type | NPT |
| Discharge Type | NPT |
| Duty | Continuous |
| Duty Cycle | Continuous |
| Flow Rate @ 1 Ft Of Head (maximum) | 24 GPM |
| Flow Rate @ 10 Ft Of Head (maximum) | 4 GPM |
| Flow Rate @ 100 Ft Of Head (maximum) | Not Applicable |
| Flow Rate @ 120 Ft Of Head (maximum) | Not Applicable |
| Flow Rate @ 140 Ft Of Head (maximum) | Not Applicable |
| Flow Rate @ 15 Ft Of Head (maximum) | Not Applicable |
| Flow Rate @ 160 Ft Of Head (maximum) | Not Applicable |
| Flow Rate @ 180 Ft Of Head (maximum) | Not Applicable |
| Flow Rate @ 20 Ft Of Head (maximum) | Not Applicable |
| Flow Rate @ 200 Ft Of Head (maximum) | Not Applicable |
| Flow Rate @ 220 Ft Of Head (maximum) | Not Applicable |
| Flow Rate @ 240 Ft Of Head (maximum) | Not Applicable |
| Flow Rate @ 260 Ft Of Head (maximum) | Not Applicable |
| Flow Rate @ 280 Ft Of Head (maximum) | Not Applicable |
| Flow Rate @ 30 Ft Of Head (maximum) | Not Applicable |
| Flow Rate @ 300 Ft Of Head (maximum) | Not Applicable |
| Flow Rate @ 40 Ft Of Head (maximum) | Not Applicable |
| Flow Rate @ 5 Ft Of Head (maximum) | 18 GPM |
| Flow Rate @ 50 Ft Of Head (maximum) | Not Applicable |
| Flow Rate @ 60 Ft Of Head (maximum) | Not Applicable |
| Flow Rate @ 70 Ft Of Head (maximum) | Not Applicable |
| Flow Rate @ 80 Ft Of Head (maximum) | Not Applicable |
| Flow Rate @ 90 Ft Of Head (maximum) | Not Applicable |
| For Use With Potable Systems | No |
| Frame | 48Z |
| Frequency | 60 Hz |
| Gph Of Water @ 5 Ft. Of Head | 18 GPH |
| Gpm @ 1 Ft. Of Head | 24 |
| Gpm Of Water @ 0 Ft. Of Head | 25 |
| Gpm Of Water @ 2 Ft. Of Head | 23 |
| Gpm Of Water @ 3 Ft. Of Head | 21 |
| Height | 7" |
| Housing Material | Aluminum |
| Hp | 1/4 hp |
| Hp - Pumps | 1/4 hp |
| Impeller Material | Cast Aluminum |
| Impeller Type | Open |
| Includes | Manual |
| Inlet Pressure | 45 psi |
| Intake Type | NPT |
| Length | 10" |
| Max. Case Pressure | 200 psi |
| Max. Feet Of Head | 11 ft. |
| Max. Flow Rate | 23 GPM |
| Max. Flow Rate @ 0 Ft. | 25 GPM |
| Max. Flow Rate @ 1 Ft. | 24 GPM |
| Max. Flow Rate @ 10 Ft. | 4 GPM |
| Max. Flow Rate @ 2 Ft. | 23 GPM |
| Max. Flow Rate @ 3 Ft. | 21 GPM |
| Max. Flow Rate @ 5 Ft. | 18 GPH |
| Max. Head | 11 ft. |
| Max. Liquid Temp. | 180°F |
| Max. Operating Pressure | 4.8 psi |
| Max. Solid Dia. | 1/8" |
| Max. Specific Gravity | 1 |
| Motor Enclosure - Pumps | Open Dripproof |
| Motor Enclosure Design | Open Dripproof |
| Motor Frame Designation | 48Z |
| Motor Type | Open Dripproof |
| Overall Height | 7" |
| Overall Length | 10" |
| Overall Width | 5 4/5" |
| Phase | 1 |
| Port Rotation | 90 Deg. Increments |
| Pump Housing Material | Aluminum |
| Rpm | 1725 RPM |
| Rpm (maximum) | 1725 RPM |
| Screw Material | Steel |
| Seal Material | Carbon, Ceramic, NBR |
| Seal Type | Mechanical |
| Service Factor | 1 |
| Shaft Material | Carbon Steel |
| Shut Off Pressure | 5 psi |
| Shut Off Pressure (maximum) | 5 psi |
| Solid Diameter (maximum) | 0.13" |
| Specific Gravity | 1 |
| Specific Gravity (maximum) | 1 |
| Voltage | 115V AC |
| Volute Material | Aluminum |
| Wetted Material | Aluminum, Buna N, Carbon Ceramic, Stainless Steel |
| Wetted Materials | Aluminum, Buna N, Carbon, Ceramic, Stainless Steel |
| Width | 5 4/5" |
Shipping Info:
| Ship weight (kg) | 5.09 |
| Ship height (cm) | 17.78 |
| Ship length (cm) | 25.4 |
| Ship width (cm) | 14.73 |
| HS code | 8413702005 |
| Country of Origin | CN |
Product Details:
- GPM @ 7 Feet of Head (13)
