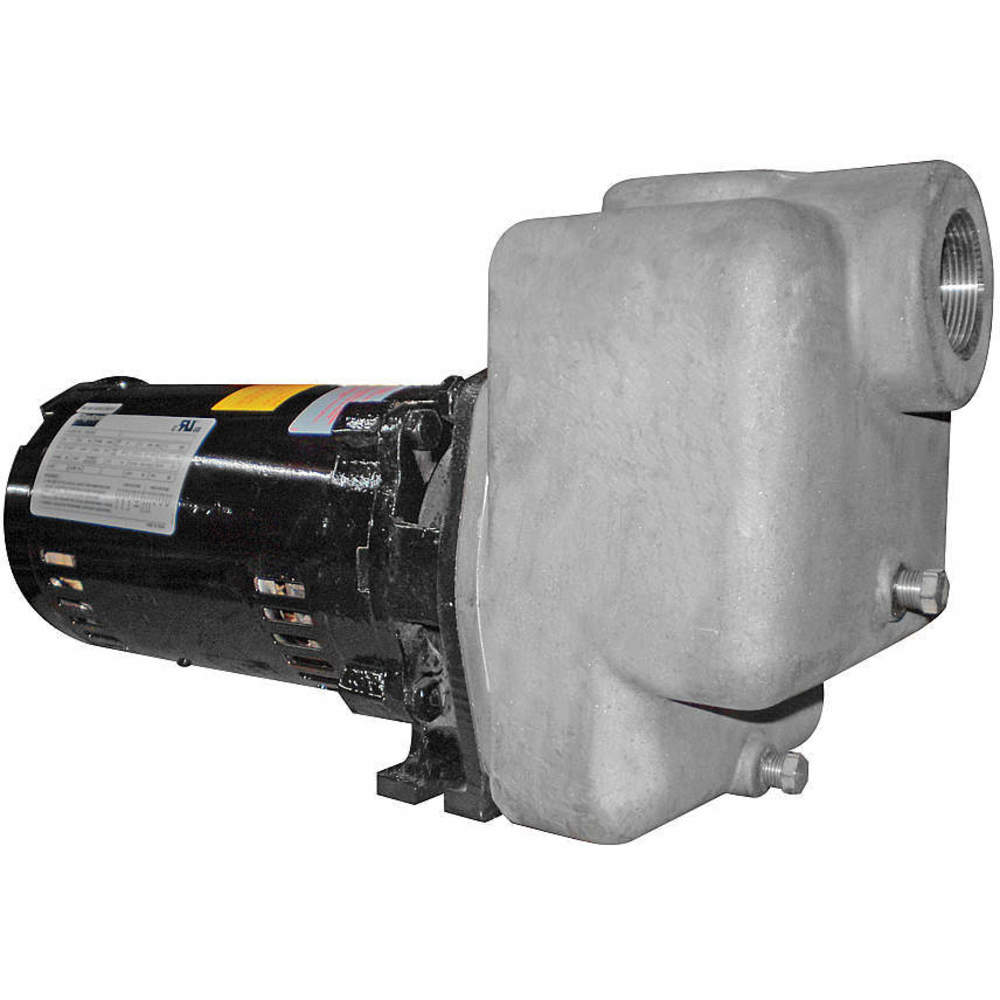

DAYTON 5GUP3 Centrifugal Pump 1 Hp Odp 3 Ph
Get it by Thursday, Dec 25
10.00% off
€1,616.41 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Centrifugal Pump |
| Amps | 1.6/3.2-3.7A |
| Bearing Type | Ball |
| Best Efficiency Flow | 39-51 GPM |
| Best Efficiency Flow Range @ Head | 39 to 51 GPM @ 70 to 58 ft. |
| Best Efficiency Flow Rate | 39-51 GPM |
| Best Efficiency Flow Rate @ Head | 45 GPM @ 66 ft. |
| Best Efficiency Head | 58 ft. to 70 ft. |
| Compatible Discharge Pipe Size | 1 1/2" |
| Compatible Intake Pipe Size | 1 1/2" |
| Compatible With Media Type | Non Flammable Liquids |
| Connection Type | NPT |
| Discharge Type | NPT |
| Duty Cycle | Continuous |
| Flow Rate @ 10 Ft. | 76 GPM |
| Flow Rate @ 25 Ft. | 73 GPM |
| Flow Rate @ 30 Ft. | 72 GPM |
| Flow Rate @ 40 Ft. | 67 GPM |
| Flow Rate @ 50 Ft. | 59 GPM |
| Flow Rate @ 60 Ft. | 49 GPM |
| Flow Rate @ 80 Ft. | 23 GPM |
| Flow Rate @ 90 Ft. | 0 GPM |
| Flow Rate Of Water @ 15 Ft. | 75 GPM |
| Flow Rate Of Water @ 25 Ft. | 73 GPM |
| Flow Rate Of Water @ 50 Ft. | 59 GPM |
| For Use With Potable Systems | No |
| Frame | 56J |
| Frequency | 60 Hz |
| Gpm Of Water @ 10 Ft. | 76 GPM |
| Gpm Of Water @ 20 Ft. | 74 GPM |
| Gpm Of Water @ 30 Ft. | 72 GPM |
| Gpm Of Water @ 40 Ft. | 67 GPM |
| Gpm Of Water @ 60 Ft. | 49 GPM |
| Gpm Of Water @ 70 Ft. | 39 GPM |
| Gpm Of Water @ 80 Ft. | 23 GPM |
| Height | 9.1" |
| Housing Material | Stainless Steel |
| Hp | 1 hp |
| Impeller Material | Stainless Steel |
| Impeller Type | Semi Open |
| Inlet Pressure | 100 psi |
| Inlet Size | 1 1/2" |
| Length | 16 4/5" |
| Max. Case Pressure | 165 psi |
| Max. Flow Rate | 76 GPM |
| Max. Flow Rate @ Head | 76 GPM @ 10 ft. |
| Max. Head | 90 ft. |
| Max. Media Temp. | 200°F |
| Max. Pressure | 38.9 psi |
| Max. Solid Dia. | 1/8" |
| Max. Suction Lift | 20 ft. |
| Maximum Flow Rate @ 10 Feet Of Head | 76 GPM |
| Maximum Flow Rate @ 15 Feet Of Head | 75 GPM |
| Maximum Flow Rate @ 20 Feet Of Head | 74 GPM |
| Maximum Flow Rate @ 30 Feet Of Head | 72 GPM |
| Maximum Flow Rate @ 40 Feet Of Head | 67 GPM |
| Maximum Flow Rate @ 50 Feet Of Head | 59 GPM |
| Maximum Flow Rate @ 60 Feet Of Head | 49 GPM |
| Maximum Flow Rate @ 70 Feet Of Head | 39 GPM |
| Maximum Flow Rate @ 80 Feet Of Head | 23 GPM |
| Maximum Flow Rate @ 90 Feet Of Head | 0 GPM |
| Media Type | Non Flammable Liquids |
| Min. Flow Rate | 23 GPM |
| Min. Flow Rate @ Head | 23 GPM @ 80 ft. |
| Min. Gpm @ Head | 23 GPM @ 80 ft. |
| Min. Head | 10 ft. |
| Min. Media Temp. | 40°F |
| Motor Enclosure Design | Open Dripproof |
| Motor Type | Three Phase |
| Nameplate Voltage | 208-230/460V AC |
| Outlet Size | 1 1/2" |
| Outlet Type | NPT |
| Overall Height | 9.1" |
| Overall Length | 16.8" |
| Overall Width | 6 4/5" |
| Phase | 3 |
| Port Rotation | None |
| Priming | Self Priming |
| Pump Housing Material | Stainless Steel |
| Pumping Application | Decorative Water, Dewatering, Irrigation, Liquid And Chemical Transfer |
| Rpm | 3500 RPM |
| Rpm (maximum) | 3500 RPM |
| Screw Finish | Zinc Plated |
| Seal Application | Non-Flammable And Non-Abrasive Liquids Compatible With Seal Component Materials Up To 200 Deg. F |
| Seal Material | Carbon Ceramic, Viton |
| Seal Type | Mechanical |
| Self Priming | Yes |
| Service Factor | 1.4 |
| Shaft Material | Stainless Steel |
| Solid Diameter (maximum) | 0.13" |
| Specific Gravity | 1 |
| Voltage | 208/230/460V AC |
| Volute Material | Stainless Steel |
| Wetted Material | Carbon Ceramic, Stainless Steel, Viton |
| Width | 6 4/5" |
Shipping Info:
| Ship weight (kg) | 26.1 |
| Ship height (cm) | 23.11 |
| Ship length (cm) | 42.67 |
| Ship width (cm) | 17.27 |
| HS code | 8413702005 |
| Country of Origin | IN |
Product Variants
| Product | Model | Hp | Phase | Max. Suction Lift | Max. Head | Pump Housing Material | Compatible Intake Pipe Size | Compatible Discharge Pipe Size | Motor Enclosure Design | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
12N810 | 3 hp | 3 | 20 ft. | 65 ft. | Cast Iron | 3" | 3" | - | €2,282.60 | |
 |
12N811 | 3 hp | 3 | 20 ft. | 65 ft. | Stainless Steel | 3" | 3" | Totally Enclosed Fan Cooled | €4,688.58 | |
|
12N812 | 5 hp | 3 | 20 ft. | 88 ft. | Cast Iron | 3" | 3" | Totally Enclosed Fan Cooled | €2,550.95 | |
|
12N813 | 5 hp | 3 | 20 ft. | 88 ft. | Stainless Steel | 3" | 3" | Totally Enclosed Fan Cooled | €4,549.58 | |
|
12N814 | 7 1/2 hp | 3 | 20 ft. | 90 ft. | Cast Iron | 3" | 3" | Totally Enclosed Fan Cooled | €3,106.03 | |
|
12N815 | 7 1/2 hp | 3 | 20 ft. | 90 ft. | Stainless Steel | 3" | 3" | Totally Enclosed Fan Cooled | €4,854.46 | |
 |
30SPM10 | 3 hp | 1 | 25 ft. | 92.4 ft. | Cast Iron | 2 1/2" | 2" | Open Dripproof | €4,538.21 |
