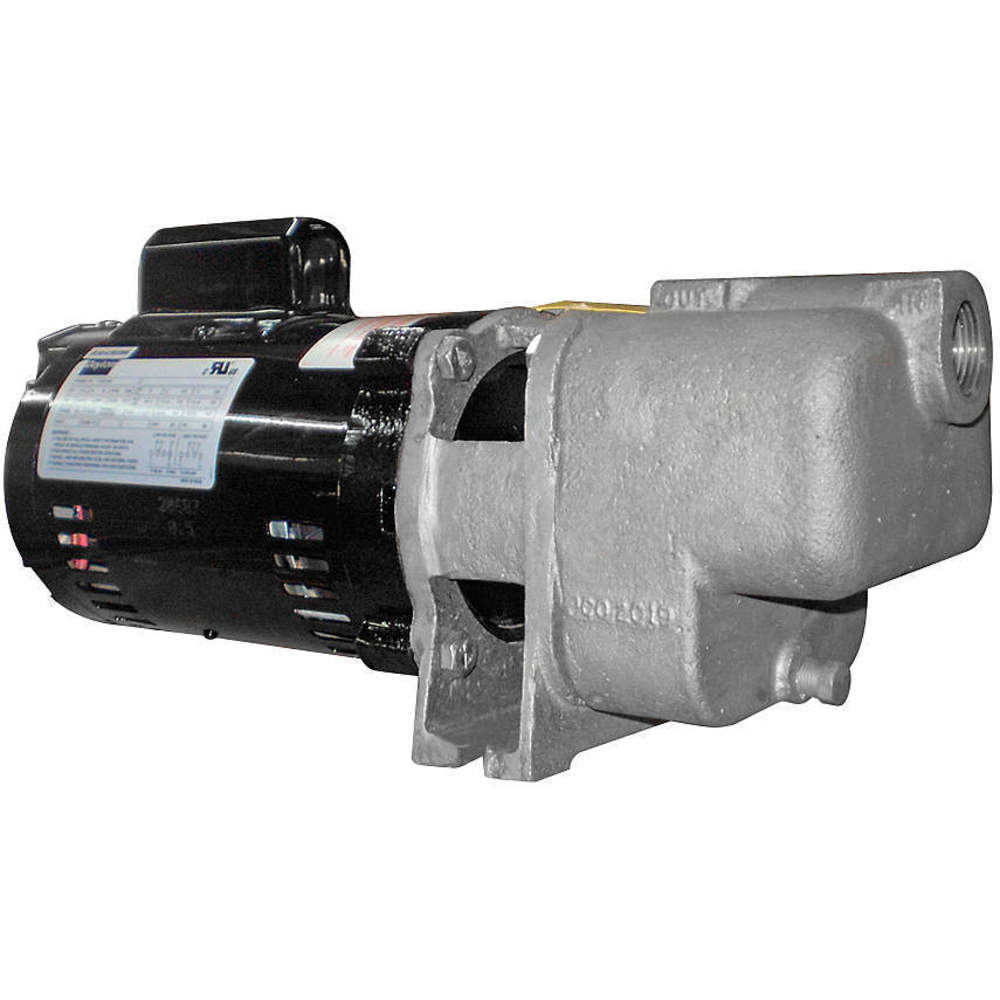

DAYTON 5GUP0 Centrifugal Pump 1/3 Hp Odp 1 Ph
Get it by Tuesday, Dec 23
10.00% off
€1,174.25 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Centrifugal Pump |
| Amps | 7.5/3.8A |
| Bearing Type | Ball |
| Best Efficiency Flow | 18-25 GPM |
| Best Efficiency Flow Range @ Head | 18 to 25 GPM @ 35 to 32 ft. |
| Best Efficiency Flow Rate | 18-25 GPM |
| Best Efficiency Flow Rate @ Head | 25 GPM @ 32 ft. |
| Best Efficiency Head | 32 ft. to 35 ft. |
| Compatible Discharge Pipe Size | 1" |
| Compatible Intake Pipe Size | 1" |
| Compatible With Media Type | Non Flammable Liquids |
| Connection Type | NPT |
| Discharge Type | NPT |
| Duty Cycle | Continuous |
| Flow Rate @ 10 Ft. | 43 GPM |
| Flow Rate @ 25 Ft. | 32 GPM |
| Flow Rate @ 30 Ft. | 27 GPM |
| Flow Rate @ 40 Ft. | 6 GPM |
| Flow Rate Of Water @ 15 Ft. | 40 GPM |
| Flow Rate Of Water @ 25 Ft. | 32 GPM |
| For Use With Potable Systems | No |
| Frame | 56J |
| Frequency | 60 Hz |
| Gpm Of Water @ 10 Ft. | 43 GPM |
| Gpm Of Water @ 20 Ft. | 36 GPM |
| Gpm Of Water @ 30 Ft. | 27 GPM |
| Gpm Of Water @ 40 Ft. | 6 GPM |
| Height | 8" |
| Housing Material | Stainless Steel |
| Hp | 1/3 hp |
| Impeller Material | Stainless Steel |
| Impeller Type | Semi Open |
| Inlet Pressure | 100 psi |
| Inlet Size | 1" |
| Length | 15 1/2" |
| Max. Case Pressure | 165 psi |
| Max. Flow Rate | 43 GPM |
| Max. Flow Rate @ Head | 43 GPM @ 10 ft. |
| Max. Head | 41 ft. |
| Max. Media Temp. | 200°F |
| Max. Pressure | 17.7 psi |
| Max. Solid Dia. | 1/8" |
| Max. Suction Lift | 7 ft. |
| Maximum Flow Rate @ 10 Feet Of Head | 43 GPM |
| Maximum Flow Rate @ 15 Feet Of Head | 40 GPM |
| Maximum Flow Rate @ 20 Feet Of Head | 36 GPM |
| Maximum Flow Rate @ 30 Feet Of Head | 27 GPM |
| Maximum Flow Rate @ 40 Feet Of Head | 6 GPM |
| Media Type | Non Flammable Liquids |
| Min. Flow Rate | 6 GPM |
| Min. Flow Rate @ Head | 6 GPM @ 40 ft. |
| Min. Gpm @ Head | 6 GPM @ 40 ft. |
| Min. Head | 10 ft. |
| Min. Media Temp. | 40°F |
| Motor Enclosure Design | Open Dripproof |
| Motor Type | Capacitor Start |
| Outlet Size | 1" |
| Outlet Type | NPT |
| Overall Length | 15.5" |
| Overall Width | 5 3/5" |
| Phase | 1 |
| Port Rotation | None |
| Priming | Self Priming |
| Pump Housing Material | Stainless Steel |
| Pumping Application | Decorative Water, Dewatering, Irrigation, Liquid And Chemical Transfer |
| Rpm | 3500 RPM |
| Rpm (maximum) | 3500 RPM |
| Screw Finish | Zinc Plated |
| Seal Application | Non-Flammable And Non-Abrasive Liquids Compatible With Seal Component Materials Up To 200 Deg. F |
| Seal Material | Carbon Ceramic, Viton |
| Seal Type | Mechanical |
| Self Priming | Yes |
| Service Factor | 1.75 |
| Shaft Material | Stainless Steel |
| Solid Diameter (maximum) | 0.13" |
| Specific Gravity | 1 |
| Voltage | 115/230V AC |
| Volute Material | Stainless Steel |
| Wetted Material | Carbon Ceramic, Stainless Steel, Viton |
| Width | 5 3/5" |
Shipping Info:
| Ship weight (kg) | 17.99 |
| Ship height (cm) | 20.32 |
| Ship length (cm) | 39.37 |
| Ship width (cm) | 14.22 |
| HS code | 8413702005 |
| Country of Origin | IN |
Product Variants
| Product | Model | Hp | Phase | Max. Suction Lift | Max. Head | Pump Housing Material | Compatible Intake Pipe Size | Compatible Discharge Pipe Size | Motor Enclosure Design | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
12N810 | 3 hp | 3 | 20 ft. | 65 ft. | Cast Iron | 3" | 3" | - | €2,282.60 | |
 |
12N811 | 3 hp | 3 | 20 ft. | 65 ft. | Stainless Steel | 3" | 3" | Totally Enclosed Fan Cooled | €4,688.58 | |
|
12N812 | 5 hp | 3 | 20 ft. | 88 ft. | Cast Iron | 3" | 3" | Totally Enclosed Fan Cooled | €2,550.95 | |
|
12N813 | 5 hp | 3 | 20 ft. | 88 ft. | Stainless Steel | 3" | 3" | Totally Enclosed Fan Cooled | €4,549.58 | |
|
12N814 | 7 1/2 hp | 3 | 20 ft. | 90 ft. | Cast Iron | 3" | 3" | Totally Enclosed Fan Cooled | €3,106.03 | |
|
12N815 | 7 1/2 hp | 3 | 20 ft. | 90 ft. | Stainless Steel | 3" | 3" | Totally Enclosed Fan Cooled | €4,854.46 | |
 |
30SPM10 | 3 hp | 1 | 25 ft. | 92.4 ft. | Cast Iron | 2 1/2" | 2" | Open Dripproof | €4,538.21 |
