DAYTON 71732462M Vibrator Motor 1/100 Hp 1625 Rpm 115 V
Item: AE3RZAModel: 71732462MCross Ref: 5FTT3
7 In Stock
Ships within 2 days via
10.00% off
€180.39 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Vibrator Motor |
| Ambient Temp. | 40°C |
| Bearing Type | Ball |
| Body Dia. | 3 3/8" |
| Conduit Box Position | F1 |
| Force | 5 lbf. |
| Frequency | 60 Hz |
| Full Load Amps | 0.65A |
| Hp | 1/100 hp |
| Includes | 9 ft. Long 3-Conductor Cord Set With In-Line On/Off Switch |
| Insulation Class | Class B |
| Length | 3 9/16" |
| Max. Ambient Temp. | 40°C |
| Motor Bearings | Ball |
| Motor Design | Shaded Pole |
| Motor Enclosure Design | Open |
| Motor Mounting Position | All Angle |
| Motor Mounting Type | Face |
| Motor Mounting Type | Band |
| Motor Thermal Protection | Auto |
| Motor Type | Shaded Pole |
| Mounting Type | C Face, Footless |
| Nameplate Rpm | 1625 RPM |
| No. Of Speeds | 1 |
| On/off Switch | Yes |
| Overall Length | 3 9/16" |
| Phase | 1 |
| Thermal Protection | Automatic |
| Velocity | 2.2 in./sec. |
| Voltage | 115V AC |
| Weight | 3.29 lbs. |
Shipping Info:
| Ship weight (kg) | 1.48 |
| Ship height (cm) | 9.4 |
| Ship length (cm) | 17.27 |
| Ship width (cm) | 11.43 |
| HS code | 8501104020 |
| Country of Origin | CN |
Product Variants
| Product | Model | Hp | Nameplate Rpm | Motor Enclosure Design | Force | Velocity | Voltage | Ambient Temp. | Motor Mounting Position | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

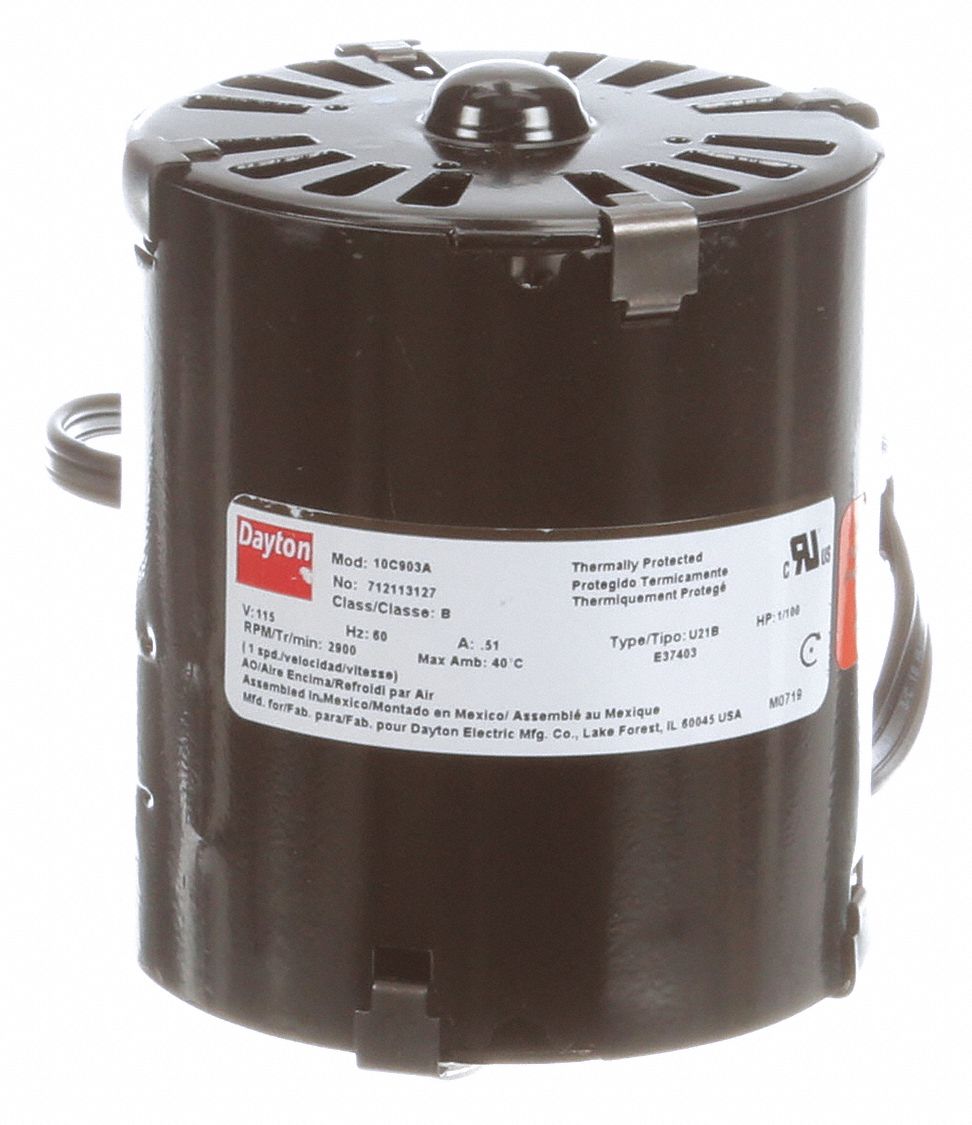

712113127M | 1/100 hp | 2900 RPM | Open | 8 lbf. | 7 in./sec. | 115V AC | 40°C | All Angle | €160.72 | |
 |
71732461M | 1/200 hp | 1550 RPM | Totally Enclosed Air Over | 2.5 lbf. | 1.33 in./sec. | 115V AC | 40°C | All Angle | €159.59 |
