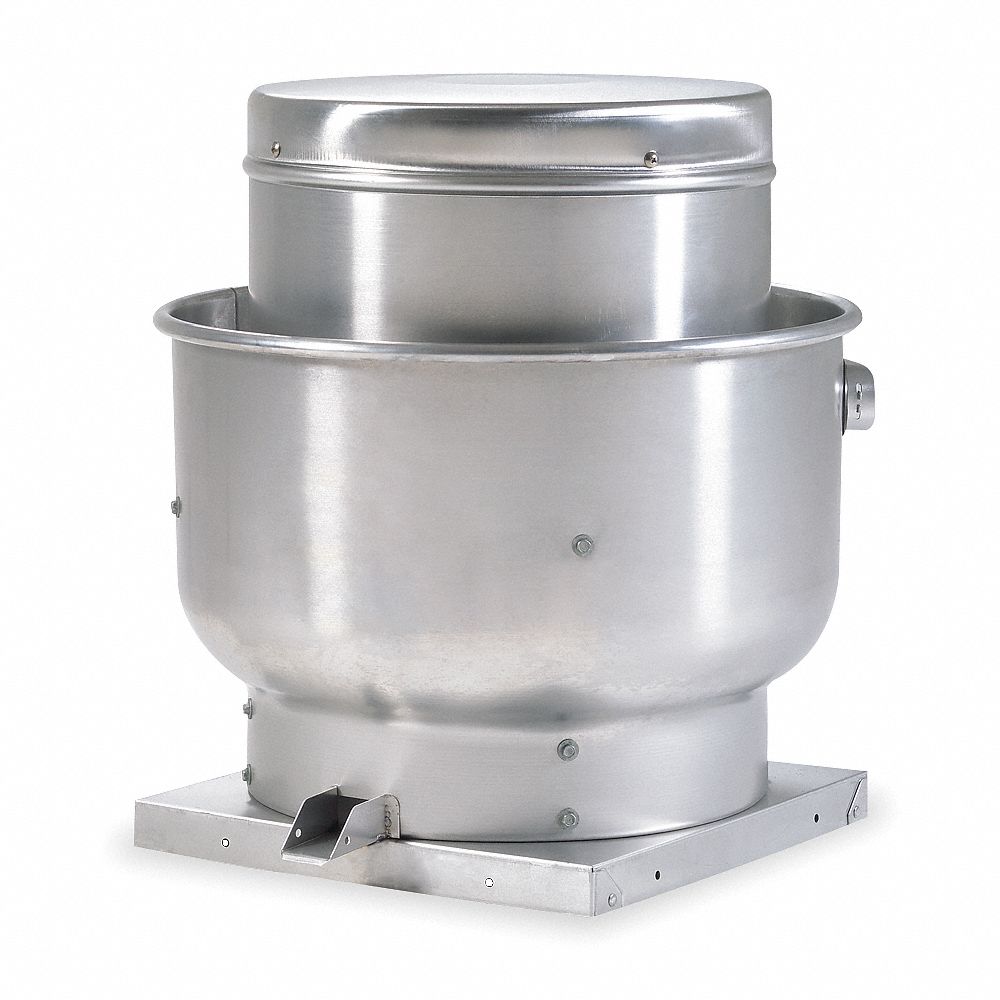

DAYTON 56MW72 Upblast Ventilator, Assembled, 16 Inch Wheel Diameter, Direct Drive
3277 CFM
Get it by Wednesday, Jul 1
5.00% off
€2,247.47 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Upblast Ventilator |
| Application | Industrial And Commercial Buildings, Restaurants, Schools |
| Assembled/unassembled | Assembled |
| Assembly | Assembled |
| Base Dia. | Not Applicable |
| Base Height | 1.8" |
| Base Length | 26" |
| Base Shape | Square |
| Base Size | 26" x 26" |
| Base Width | 26" |
| Cfm @ 0.000 In Sp | 3277 CFM |
| Cfm @ 0.125 In Sp | 3161 CFM |
| Cfm @ 0.250 In Sp | 3035 CFM |
| Cfm @ 0.375 In Sp | 2896 CFM |
| Cfm @ 0.500 In Sp | 2745 CFM |
| Cfm @ 0.625 In Sp | 2587 CFM |
| Cfm @ 0.750 In Sp | 2421 CFM |
| Cfm @ 0.875 In Sp | 1983 CFM |
| Compatible Curb Manufacturer Part Number | 24Y860, 2RB75 TO 2RB77, 2RB79 TO 2RB82, 2ZV82 TO 2ZV85 |
| Cut Out Length | 21 1/2" |
| Drive Package With Motor Included | Yes |
| Drive Type | Direct Drive |
| Duty Rating | Standard |
| Exhaust Airflow @ 0.000 In Sp | 3277 CFM |
| Exhaust Airflow @ 0.125 In Sp | 3161 CFM |
| Exhaust Airflow @ 0.375 In Sp | 2896 CFM |
| Exhaust Airflow @ 0.500 In Sp | 2745 CFM |
| For Air Type | Kitchen Air |
| For High-static Pressure Applications | No |
| High-efficiency Motor | No |
| Housing Material | Aluminum |
| Included Drive Package | Yes |
| Included Drive Package With Motor | Yes |
| Included Motor | Yes |
| Max. Ambient Temp. | 300°F |
| Max. Inlet Air Temp. | 300°F |
| Max. Static Pressure | 0.875 in. wc |
| Motor Enclosure | Open Dripproof |
| Motor Hp | 3/4 hp |
| Motor Location | Out Of Airstream |
| Mounting Location | Roof, Wall |
| Mounting Orientation | Horizontal, Vertical |
| Nameplate Voltage | 208-230/460V AC |
| No. Of Speed | 1 |
| Overall Height | 31 1/2" |
| Phase | 3 |
| Sound Level | 14.8 Sones @ 0.250 in Sp And 5 Ft, 15.2 Sones @ 0.125 in Sp And 5 Ft, Sones @ 0.500 in Sp And 5 Ft |
| Speed Controllable | No |
| Wheel Dia. | 16 1/2" |
| Wheel Material | Aluminum |
Shipping Info:
| Ship weight (kg) | 43.65 |
Product Variants
| Model | Wheel Material | Mounting Location | Overall Height | Housing Material | Drive Type | Motor Hp | Max. Inlet Temp. | Wheel Dia. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 16D522 | Aluminum | Roof | 26 7/8" | Aluminum | Belt Drive | 1/4 hp to 1/3 hp | 300°F | 11 1/4" | €1,328.38 | |
| 16D523 | Aluminum | Roof | 26 7/8" | Aluminum | Belt Drive | 1/4 hp to 1/2 hp | 300°F | 12 1/2" | €1,384.13 | |
| 16D524 | Aluminum | Roof | 28 1/8" | Aluminum | Belt Drive | 1/4 hp to 1 hp | 300°F | 14 3/4" | €1,565.66 | |
| 1DYK4 | Steel | Roof | 36 1/4" | Steel | Belt Drive | 1/4 hp to 1 hp | 400°F | 14 3/4" | €4,686.62 | |
| 1DYK5 | Steel | Roof | 36 1/4" | Steel | Belt Drive | 1/4 hp to 1 hp | 400°F | 16 1/2" | €4,393.56 | |
| 1DYK6 | Steel | Roof | 40 1/4" | Steel | Belt Drive | 1/4 hp to 2 hp | 400°F | 18 1/2" | €4,863.66 | |
| 1DYK7 | Steel | Roof | 40 1/4" | Steel | Belt Drive | 1/4 hp to 2 hp | 400°F | 21 1/4" | €5,178.20 |
