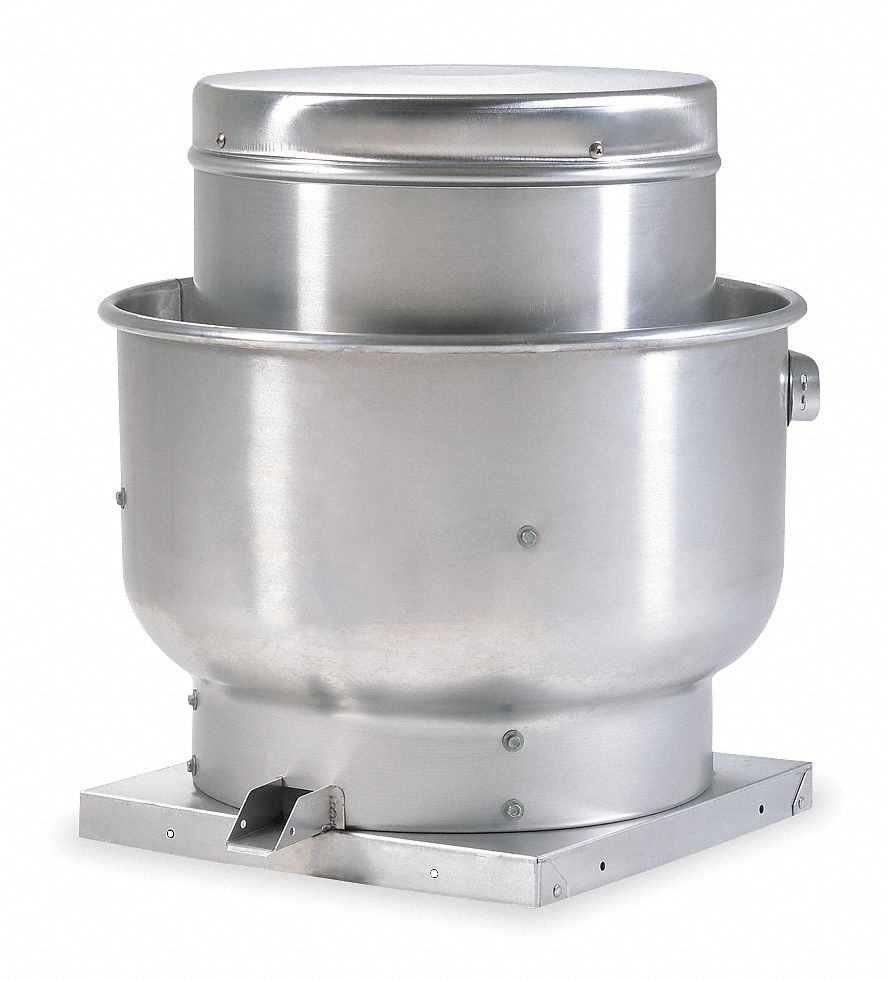

DAYTON 56MW61 Upblast Ventilator, 16 Inch Wheel Dia.
Get it by Friday, Feb 13
10.00% off
€2,090.07 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Upblast Ventilator |
| Application | Industrial And Commercial Buildings, Restaurants, Schools |
| Assembled/unassembled | Assembled |
| Assembly | Assembled |
| Base Dia. | Not Applicable |
| Base Height | 1.8" |
| Base Length | 26" |
| Base Shape | Square |
| Base Size | 26" x 26" |
| Base Width | 26" |
| Compatible Curb Manufacturer Part Number | 24Y860, 2RB75 TO 2RB77, 2RB79 TO 2RB82, 2ZV82 TO 2ZV85 |
| Cutout Length | 21 1/2" |
| Drive Package With Motor Included | Yes |
| Drive Type | Belt Drive |
| Duty Rating | Standard |
| Exhaust Airflow @ 0.000 In Sp | 3996 CFM |
| Exhaust Airflow @ 0.125 In Sp | 3901 CFM |
| Exhaust Airflow @ 0.250 In Sp | 3806 CFM |
| Exhaust Airflow @ 0.375 In Sp | 3698 CFM |
| Exhaust Airflow @ 0.500 In Sp | 3584 CFM |
| For Air Type | Kitchen Air |
| For High-static Pressure Applications | No |
| High-efficiency Motor | No |
| Housing Material | Aluminum |
| Includes | Nema 1 Junction Box |
| Includes Drive Package | Yes |
| Includes Drive Package With Motor | Yes |
| Includes Motor | Yes |
| Maximum Ambient Temperature | 300°F |
| Maximum Inlet Air Temperature | 300°F |
| Maximum Static Pressure | 1.5 in. wc |
| Motor Enclosure | Open Dripproof |
| Motor Horsepower | 1 hp |
| Motor Location | Out Of Airstream |
| Mount Type | Roof Curb |
| Mounting Location | Roof, Wall |
| Mounting Orientation | Horizontal, Vertical |
| Nameplate Voltage | 115/208/230V AC |
| Number Of Speeds | 1 |
| Overall Dia. | 28 7/8" |
| Overall Height | 31 1/2" |
| Overall Width | 28 7/8" |
| Phase | 1 |
| Sones @ 0.250-in. Sp @ 5 Ft. | 20 sones |
| Sound Level | 20 Sones @ 0.250 in Sp And 5 Ft, 21 Sones @ 0.125 in Sp And 5 Ft, Sones @ 0.500 in Sp And 5 Ft |
| Speed Controllable | No |
| Wheel Dia. | 16 1/2" |
| Wheel Material | Aluminum |
Shipping Info:
| Ship weight (kg) | 45 |
| Country of Origin | USA |
Product Variants
| Model | Wheel Material | Mounting Location | Housing Material | Overall Height | Drive Type | Max. Inlet Temp. | Motor Hp | Wheel Diameter | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 16D522 | Aluminum | Roof | Aluminum | 26 7/8" | Belt Drive | 300°F | 1/4 hp to 1/3 hp | - | €1,411.40 | |
| 16D523 | Aluminum | Roof | Aluminum | 26 7/8" | Belt Drive | 300°F | 1/4 hp to 1/2 hp | - | €1,470.64 | |
| 16D524 | Aluminum | Roof | Aluminum | 28 1/8" | Belt Drive | 300°F | 1/4 hp to 1 hp | - | €1,663.51 | |
| 1DYK4 | Steel | Roof | Steel | 36 1/4" | Belt Drive | 400°F | 1/4 hp to 1 hp | - | €4,979.54 | |
| 1DYK5 | Steel | Roof | Steel | 36 1/4" | Belt Drive | 400°F | 1/4 hp to 1 hp | - | €4,668.16 | |
| 1DYK6 | Steel | Roof | Steel | 40 1/4" | Belt Drive | 400°F | 1/4 hp to 2 hp | - | €5,167.64 | |
| 1DYK7 | Steel | Roof | Steel | 40 1/4" | Belt Drive | 400°F | 1/4 hp to 2 hp | - | €5,501.84 |
