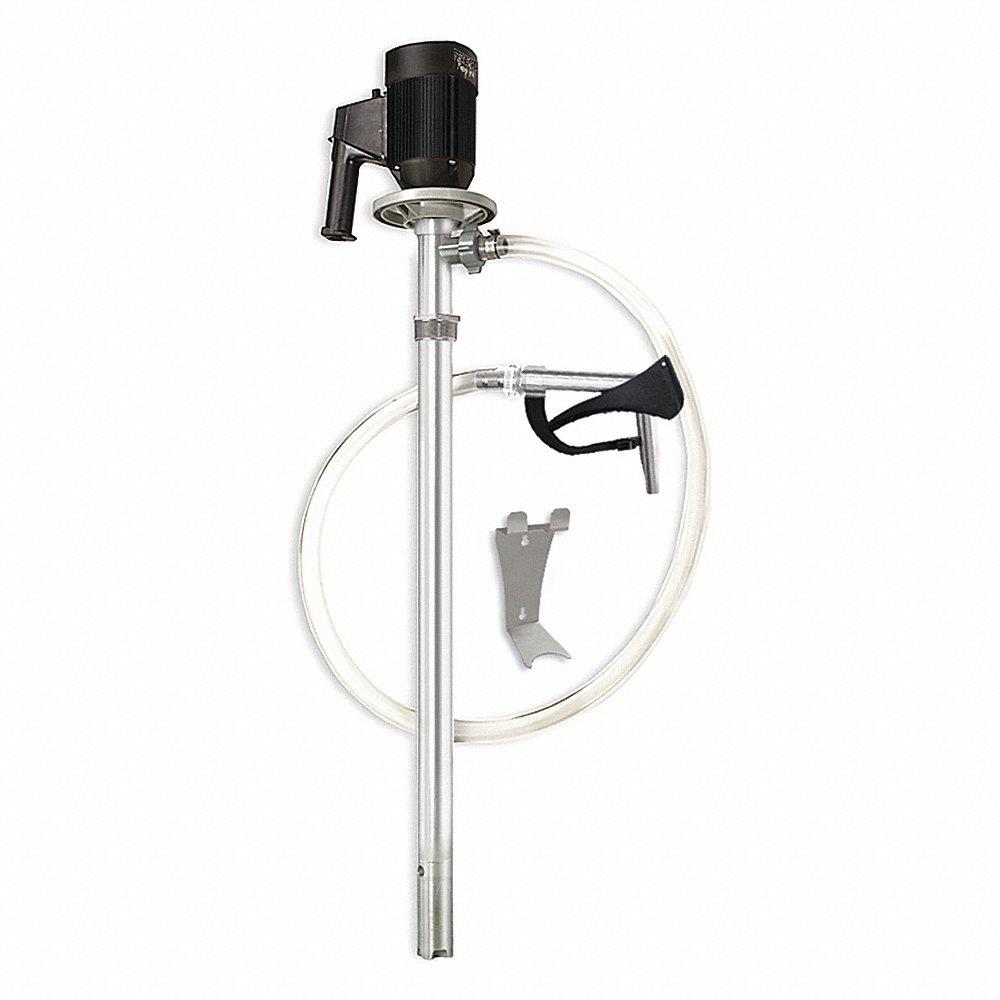

DAYTON 55EC79 Electric Operated Drum Pump, 1 1/10 HP, 55 Gal., 110V AC
Get it by Tuesday, Dec 23
10.00% off
€4,983.27 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Electric Operated Drum Pump |
| Cord Length | 16 ft. |
| Diesel Exhaust Fluid Compatible | No |
| Discharge Connection Type | Hose Barb |
| Discharge Tube Outlet I.d. | 1" |
| Discharge Tube Outlet O.d. | 1 1/2" |
| Display Qty | 1 |
| Display Sell Uom | EA |
| Duty Cycle | Intermittent |
| Food Grade | No |
| For Container Size | 55 gal. |
| For Container Type | Drum |
| For Media Type | General Purpose |
| For Use With | 9714 |
| Frequency | 50/60 Hz |
| Full Load Amps | 8.5A |
| Hose Cover Material | UHMW-PE |
| Hose I.d. | 1" |
| Hose Inside Dia. | 1" |
| Hose Length | 72" |
| Hose Outside Dia. | 1 1/2" |
| Hose Tube Material | UHMW-PE |
| Housing Material | Stainless Steel |
| Housing Material Grade | Grade 304 |
| Includes Bung Adapter | No |
| Includes Discharge Hose | Yes |
| Includes Nozzle | Yes |
| Includes Spout | No |
| Includes Suction Tube | Yes |
| Length | 51" |
| Material Grade | Grade 316 Stainless Steel |
| Max. Flow Rate | 15 GPM |
| Max. Fluid Temp. | 175°F |
| Max. Head | 36 ft. |
| Max. Head Pressure | 16 psi |
| Max. Oil Flow | 7 GPM |
| Max. Outlet Pressure | 16 psi |
| Max. Viscosity | 1500 cPS |
| Media Type | General Purpose |
| Metered | No |
| Motor Enclosure | Odp |
| Motor Hp | 1 1/10 hp |
| Motor Type | Electric AC Brush |
| Noise Level | 84 dB |
| Nominal Voltage | 110V AC |
| Nozzle Material | Stainless Steel |
| Nozzle Operation | Manual |
| Overall Length | 51" |
| Package Type | Unmetered Dispensing With Manual Shut Off |
| Phase | 1 |
| Plug Type | NEMA 5-15-P |
| Power Source | Electric |
| Pump Package Type | Unmetered Dispensing With Manual Shut-Off |
| Runs Dry | Yes |
| Seal Material | Sealless |
| Self Priming | Yes |
| Self-priming | Yes |
| Suction Tube I.d. | 1 3/8" |
| Suction Tube Inside Dia. | 1 3/8" |
| Suction Tube Length | 39" |
| Suction Tube Material | Stainless Steel |
| Suction Tube O.d. | 1 5/8" |
| Suction Tube Outside Dia. | 1 5/8" |
| Thermal Protection | Yes |
| Variable Speed | Yes |
| Voltage Rating | 120V AC |
| Wetted Material | Carbon Graphite, PTFE, Stainless Steel |
| Wetted Material Grade | Grade 316L |
| Wetted Materials | Carbon Graphite, PTFE, SS316L |
Shipping Info:
| Ship weight (kg) | 13.64 |
