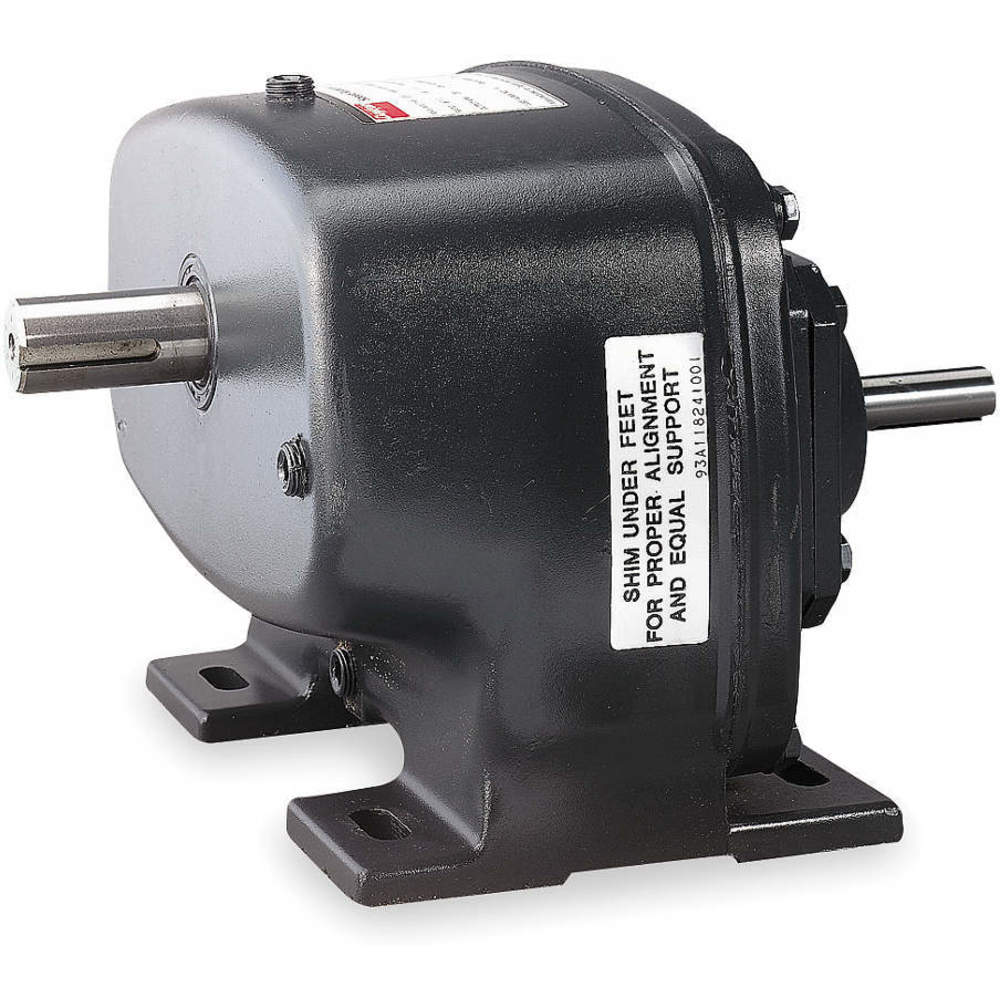

DAYTON 4Z856 Speed Reducer Indirect Drive 87 1
Get it by Friday, Dec 19
10.00% off
€1,106.90 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Speed Reducer |
| Application | General Purpose |
| Base To Center | 4 22/25" |
| Base To Shaft Center | 4.88" |
| Bearing Type | Ball |
| Dimension U | 1" |
| Duty | Standard |
| Finish | Epoxy Paint |
| For Location | Indoor, Outdoor |
| Gear Material | Hardened Steel |
| Gear Ratio | 871 |
| Gear Type | Helical |
| Housing Material | Cast Aluminum |
| Housing Material Finish | Powdered Epoxy Paint |
| Includes | Speed Reducer, Steel Key, Tube Anti-Seize Compound, Vent Plug |
| Input Connection Type | Indirect Drive |
| Input Rpm | 1750 RPM |
| Input Shaft Type | Keyed Shaft |
| Lubrication | Klubersynth UH1 6-460 |
| Max. Output Torque | 998 in.-lb. |
| Maximum Input Horsepower | 0.75 hp |
| Maximum Input Speed | 1725 RPM |
| Maximum Output Speed | 20 RPM |
| Maximum Output Torque | 998 lbs.-in. |
| Mount Hole Center-to-center Length | 4 1/2" |
| Mount Hole Center-to-center Width | 5 17/25" |
| Mount Type | Bolt On |
| Nominal Output Rpm | 20 RPM |
| Number Of Stages | 1 |
| Output Shaft Dia. | 1" |
| Output Shaft Height | 4 7/8" |
| Output Shaft Type | Keyed |
| Output Torque @ 1/40 Hp | 3600 lbs.-in. |
| Overall Height | 7.47" |
| Overall Length | 5.69" |
| Overall Width | 8.44" |
| Overhung Load | 1192 lbs. |
| Overhung Load Capacity | 1192 lbs.-ft. |
| Parallel/inline | Inline, Parallel |
| Pinion Material | Hardened Steel |
| Reducer Model No. | 84457 |
| Rotation | CW/CCW |
| Seal Type | Double Lip |
| Shaft Orientation | Parallel Inline |
| Single/double Output | Single Output |
| Solid/hollow Output Shaft | Solid |
| Speed Reducer Type | Indirect Drive |
| Standards | Agma |
Shipping Info:
| Ship weight (kg) | 14.85 |
| Ship height (cm) | 18.97 |
| Ship length (cm) | 14.45 |
| Ship width (cm) | 21.44 |
| HS code | 8483405010 |
| Country of Origin | US |
Product Variants
| Model | Gear Ratio | Overhung Load | Max. Input Hp | Nominal Output Rpm | Maximum Input Speed | Maximum Output Speed | Maximum Input Horsepower | Output Shaft Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 4Z857 | 57.5:1 | 885 lbs. | 1/2 hp | 30 RPM | 1725 RPM | 30 RPM | 0.5 hp | Keyed | €1,229.89 | |
| 4Z858 | 38.5:1 | 863 lbs. | 1/2 hp | 45 RPM | 1800 RPM | 45 RPM | 0.5 hp | Keyed | €1,229.89 | |
| 4Z859 | 311 | 712 lbs. | 3/4 hp | 56 RPM | 1725 RPM | 56 RPM | 0.75 hp | Keyed | €1,191.51 | |

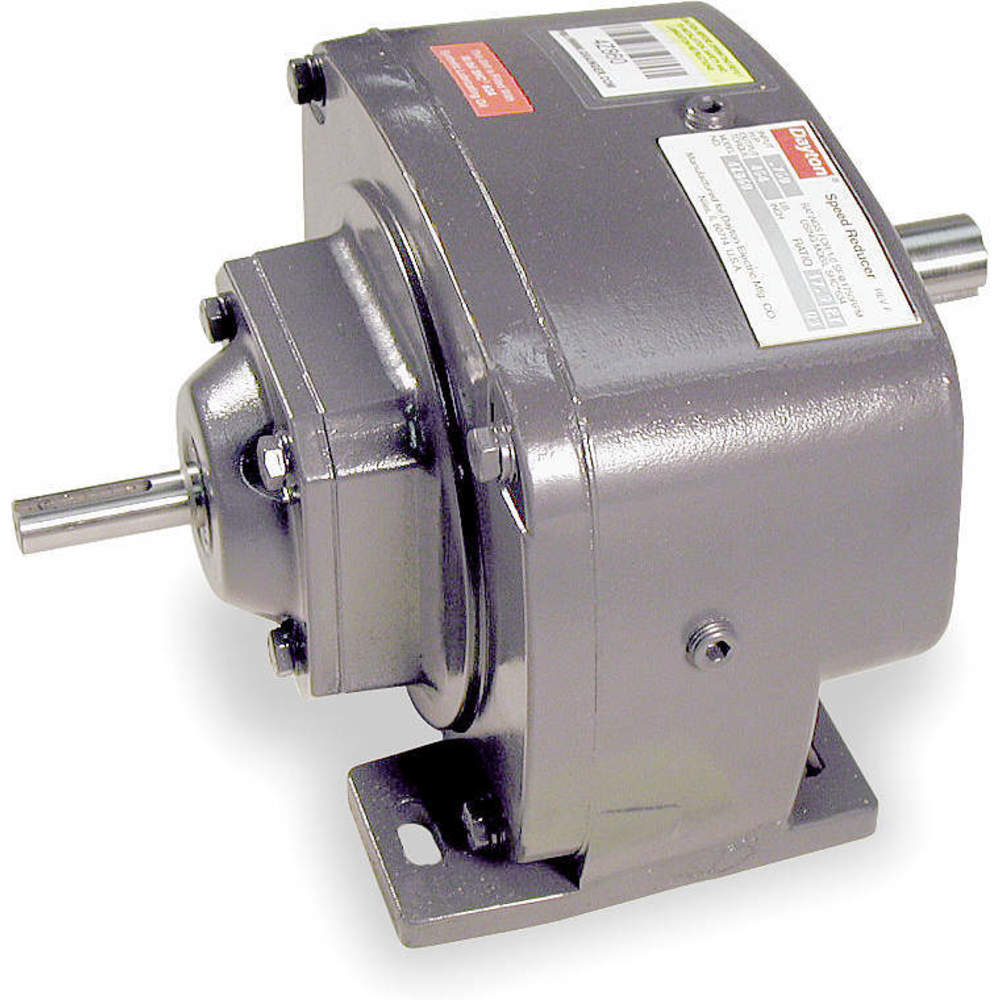

| 4Z860 | 17.5:1 | 773 lbs. | 3/4 hp | 100 RPM | 1725 RPM | 99 RPM | 0.75 hp | Keyed | €1,229.89 | |
| 4Z861 | 12.5:1 | 709 lbs. | 1 hp | 140 RPM | 1725 RPM | 140 RPM | - | Keyed | €1,229.89 |
