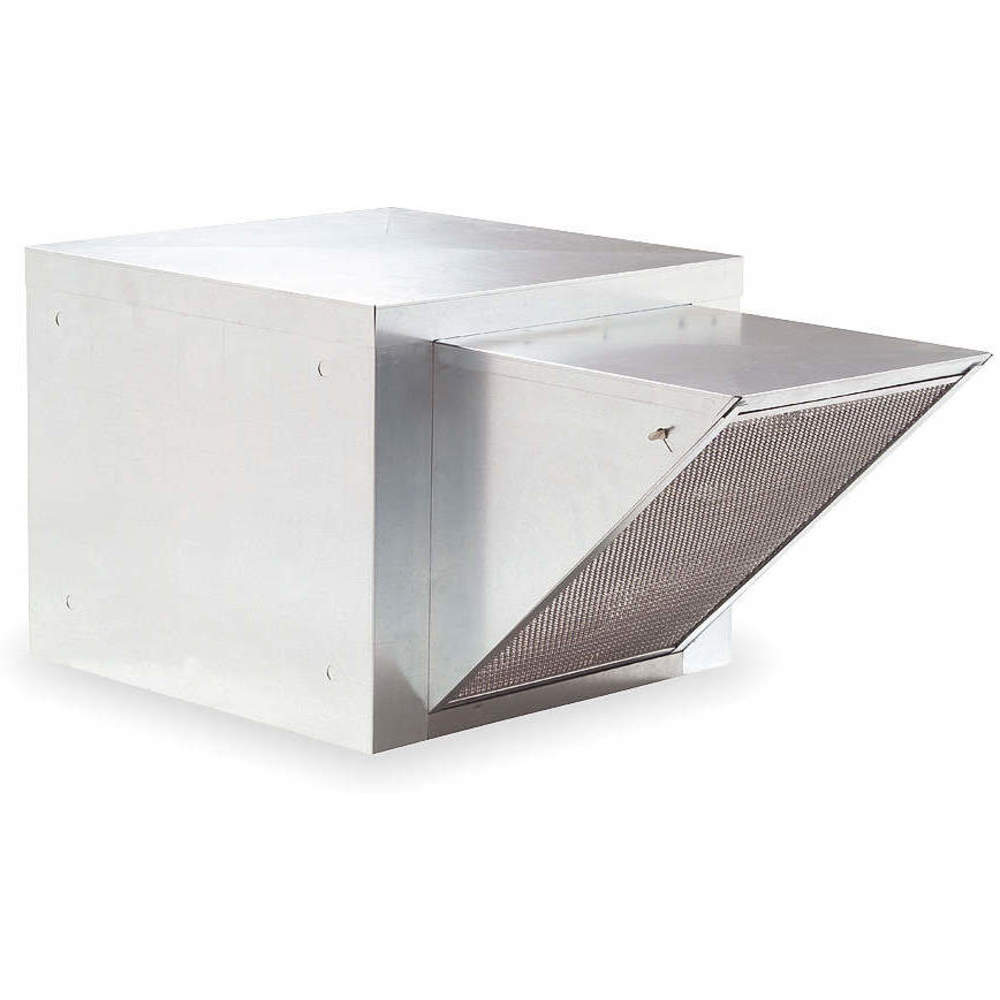

DAYTON 4YC83 Supply Vent 15 1/2 In
Get it by Wednesday, Dec 24
10.00% off
€2.23 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Supply Ventilator |
| Application | Commercial Kitchen, Institutional Buildings |
| Assembly | Unassembled |
| Base Diameter | Not Applicable |
| Base Height | 1 1/2" |
| Base Length | 34 1/2" |
| Base Shape | Square |
| Base Size - Roof Ventilators | 32 1/2" x 32 1/2" |
| Base Width | 34 1/2" |
| Bearing Type | Sealed Pillow Block |
| Brake Horsepower | 35/64 hp |
| Cfm Range | 3050-5050 CFM |
| Compatible Curb Grainger Part No. | 2RB80, 2ZV84, 3C438, 4C455, 4HX42, 4HX50 |
| Cutout Length | 16" |
| Dimension C | 27 1/2" |
| Discharge Length | 16" |
| Discharge Length (in.) | 16 |
| Discharge Width | 18 5/8" |
| Drive Package Included | No |
| Drive Package With Motor Included | No |
| Drive Type | Belt Drive |
| Drive Type - Roof Ventilators | Belt Drive |
| Electrical Connection | Power Cord |
| Features | Air Handling Quality Bearings Meet Minimum Of L10-100, 000 Hours, Neoprene Isolators Minimize Vibration And Noise |
| Filter Area | 3.75 sq. ft. |
| Filter Area (square-ft.) | 3 3/4 |
| Filter Depth | 7/8" |
| Filter Height | 19 5/8" |
| Filter Height (in.) | 19 5/8 |
| Filter Housing Depth | 29 1/4" |
| Filter Housing Depth (in.) | 29 1/4 |
| Filter Housing Height | 27 1/2" |
| Filter Housing Height (in.) | 27 1/2 |
| Filter Housing Width | 28 1/8" |
| Filter Housing Width (in.) | 28 1/8 |
| Filter Material | Aluminium |
| Filter Material | Aluminum |
| Filter Width | 27 5/8" |
| Filter Width (in.) | 27 5/8 |
| Flow Rate | 3050-5050 CFM |
| Hood Height | 32" |
| Hood Length | 63 4/5" |
| Hood Width | 64 1/2" |
| Housing Finish | Galvanized |
| Housing Height | 32" |
| Housing Length | 34 1/2" |
| Housing Material | Steel |
| Housing Width | 63 4/5" |
| Includes | Washable Aluminum Filters |
| Includes Drive Package | No |
| Includes Drive Package With Motor | No |
| Includes Motor | No |
| Max. Inlet Temp. | 120°F |
| Max. Motor Hp | 2 hp |
| Max. Motor Speed | 820 RPM |
| Maximum Airflow | 5284 CFM |
| Maximum Ambient Temperature | 120°F |
| Maximum Fan Speed | 820 RPM |
| Maximum Static Pressure | 1 in. wc |
| Min. Motor Hp | 1/2 hp |
| Min. Motor Speed | 535 RPM |
| Minimum Airflow | 1065 CFM |
| Motor Hp | 3/4 hp to 2 hp |
| Motor Location | Out Of Airstream |
| Mount Type | Roof Curb |
| Mounting Location | Roof |
| Mounting Orientation | Horizontal |
| Number Of Filters | 2 |
| Number Of Filters Required | 2 |
| Outlet Width | 18 5/8" |
| Overall Dia. | 63 3/4" |
| Overall Height | 32" |
| Overall Length | 34 1/2" |
| Overall Width | 63 3/4" |
| Propeller Shaft Dia. | 1" |
| Requires | Roof Curb For New Installations |
| Resistance Properties | Spark Resistant |
| Rpm Range | 535-820 RPM |
| Shaft Dia. Sheave End | 1" |
| Shaft Dia. Wheel End | 1" |
| Shaft Dia. Wheel End (in.) | 1" |
| Sound Level | Fan Rpm 535- 15.3 Sones @ 0.000 in Sp And 5 Ft, 13.3 Sones @ 0.125 in Sp And 5 Ft, 11.2 Sones @ 0.250 in Sp And 5 Ft, 10.2 Sones @ 0.375 in Sp And 5 Ft, 9.3 Sones @ 0.500 in Sp And 5 Ft, Fan Rpm 605- 19.2 Sones @ 0.000 in Sp And 5 Ft, 17.8 Sones @ 0.125 in Sp And 5 Ft, 15.8 Sones @ 0.250 in Sp And 5 Ft, 14.1 Sones @ 0.375 in Sp And 5 Ft, 11.9 Sones @ 0.500 in Sp And 5 Ft, 10.9 Sones @ 0.625 in Sp And 5 Ft |
| Spark Resistant Construction Type | A |
| Speed Controllable | No |
| Type | Centrifugal Belt Drive Less Drive Package |
| Wheel Bore | 1" |
| Wheel Dia. | 15 1/2" |
| Wheel Material | Steel |
| Wheel Type | Forward Curved |
Shipping Info:
| Ship weight (kg) | 104.4 |
| Ship height (cm) | 81.28 |
| Ship length (cm) | 87.63 |
| Ship width (cm) | 161.93 |
| HS code | 8414596060 |
| Country of Origin | US |
Product Details:
- Filter Depth (In.) (7/8)
