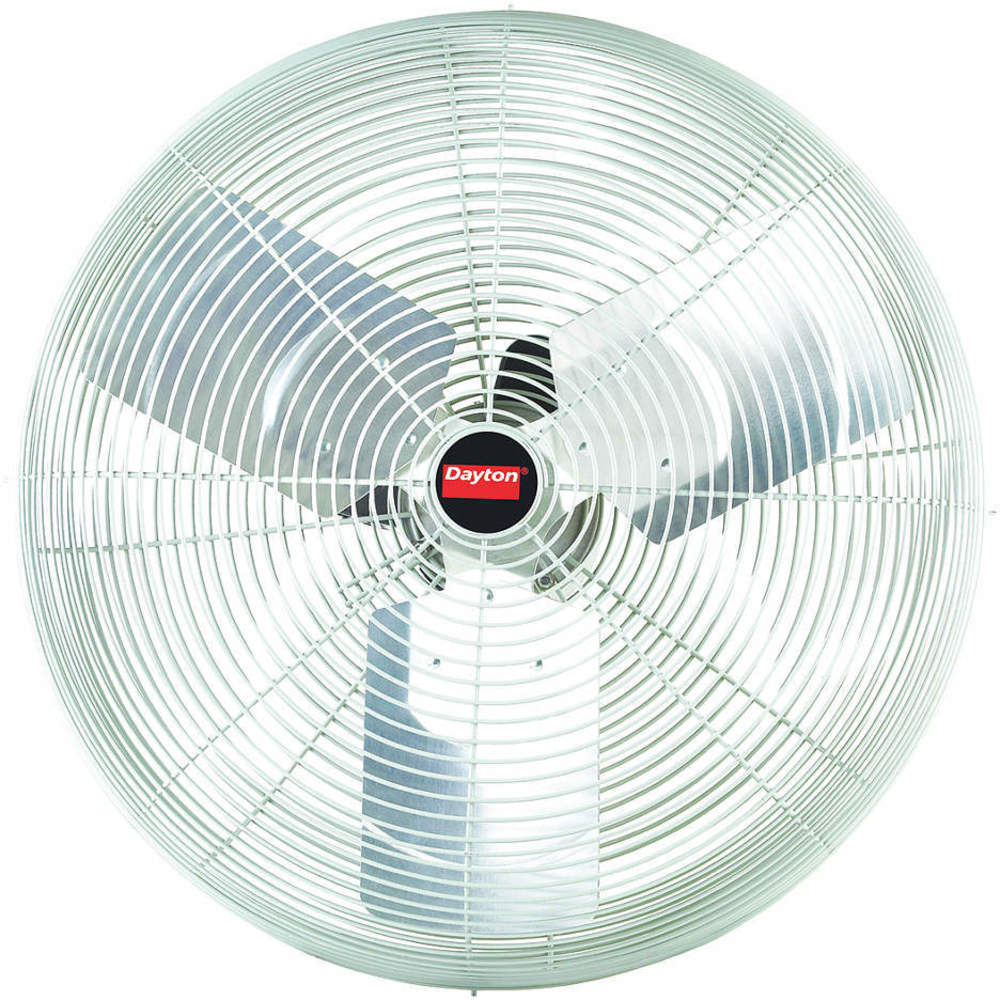

DAYTON 4VAC4 High Ambient Air Circulator 24 Inch 6400 Cfm 115v
Get it by Tuesday, Dec 23
10.00% off
€745.61 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | High Ambient Air Circulator |
| Air Flow | 6400 CFM |
| Air Velocity (fpm) @ 10 Ft. | 631 |
| Air Velocity (fpm) @ 20 Ft. | 465 |
| Air Velocity (fpm) @ 40 Ft | 150 FPM |
| Air Velocity (fpm) @ 40 Ft | 150 |
| Air Velocity (fpm) @ 60 Ft. | 78 FPM |
| Air Velocity (fpm) @ 60 Ft. | 78 |
| Air Velocity @ 10 Ft. | 650 FPM |
| Air Velocity @ 20 Ft. | 465 FPM |
| Amps | 3.6A |
| Application | High Temp. Spot Cooling |
| Assembled | Yes |
| Assembly Required | No |
| Bearing Type | Ball |
| Blade Dia. | 24" |
| Blade Material | Aluminum |
| Color | Gray |
| Depth | 13 3/4" |
| Drive Type | Direct Drive |
| Environmental Applications | Industrial |
| Fan Accessory Style | High Ambient |
| Fan Housing Material | Steel |
| Fan Mounting Location | Fan Head Only |
| Fan Style | High Ambient |
| Guard Material | Steel |
| Height | 27" |
| Height Adjustment | Fixed Height |
| Housing Material | Steel |
| Hz | 60 Hz |
| Includes | Mounting Bolts, Conduit Box |
| Max. Ambient Temp. | 140°F |
| Max. Depth | 12 1/4" |
| Mobile/stationary | Stationary |
| Motor Enclosure Design | Totally Enclosed Air Over |
| Motor Hp | 1/3 hp |
| Motor Insulation | Class B |
| Motor Insulation Class | Class B |
| Motor Speed | 1120 RPM |
| Motor Type | Permanent Split Capacitor |
| Mounting Location | Ceiling, I Beam, Pedestal, Wall |
| Nema Plug Configuration | Hardwired |
| Number Of Blades | 3 |
| Number Of Speeds | 1 |
| Operating Amps | 4.2A |
| Oscillating | No |
| Oscillating/non-oscillating | Non Oscillating |
| Oscillation | Non Oscillating |
| Outside Dia. | 27" |
| Phase | 1 |
| Product Type | High-Temperature Industrial Fan |
| Rpm | 1100 RPM |
| Shaft Dia. | 1/2" |
| Sound Level | 71 dBA |
| Thermal Protection | Automatic Reset |
| Voltage | 115V AC |
| Watts | 400 W |
| Wheeled Base | Stationary |
| Width | 27" |
| Wire Guard Finish | Polyester Powder Coat |
Shipping Info:
| Ship weight (kg) | 17.5 |
| Ship height (cm) | 45.72 |
| Ship length (cm) | 69.85 |
| Ship width (cm) | 68.58 |
| HS code | 8414596090 |
| Country of Origin | CN |
Product Details:
- Mobile/Stationary (Stationary)
Product Variants
| Model | Blade Dia. | Voltage | Motor Hp | Sound Level | Drive Type | Thermal Protection | Max. Depth | Height | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 4VAC3 | 20" | 115V AC | 1/4 hp | 73 dBA | Direct Drive | Automatic Reset | 12 1/4" | 23" | €388.03 | |
| 4VAC5 | 30" | 115V AC | 1/2 hp | 75 dBA | Direct Drive | Automatic Reset | 14 1/4" | 33" | €964.47 | |
| 4VAC6 | 20" | 115/230V | 1/2 hp | 76 dBA | Direct | Automatic | 12 1/4" | 23" | €427.18 | |
| 4VAC7 | 24" | 115/230V AC | 1/2 hp | 74 dBA | Direct Drive | Automatic Reset | 12 1/4" | 27" | €517.39 |
