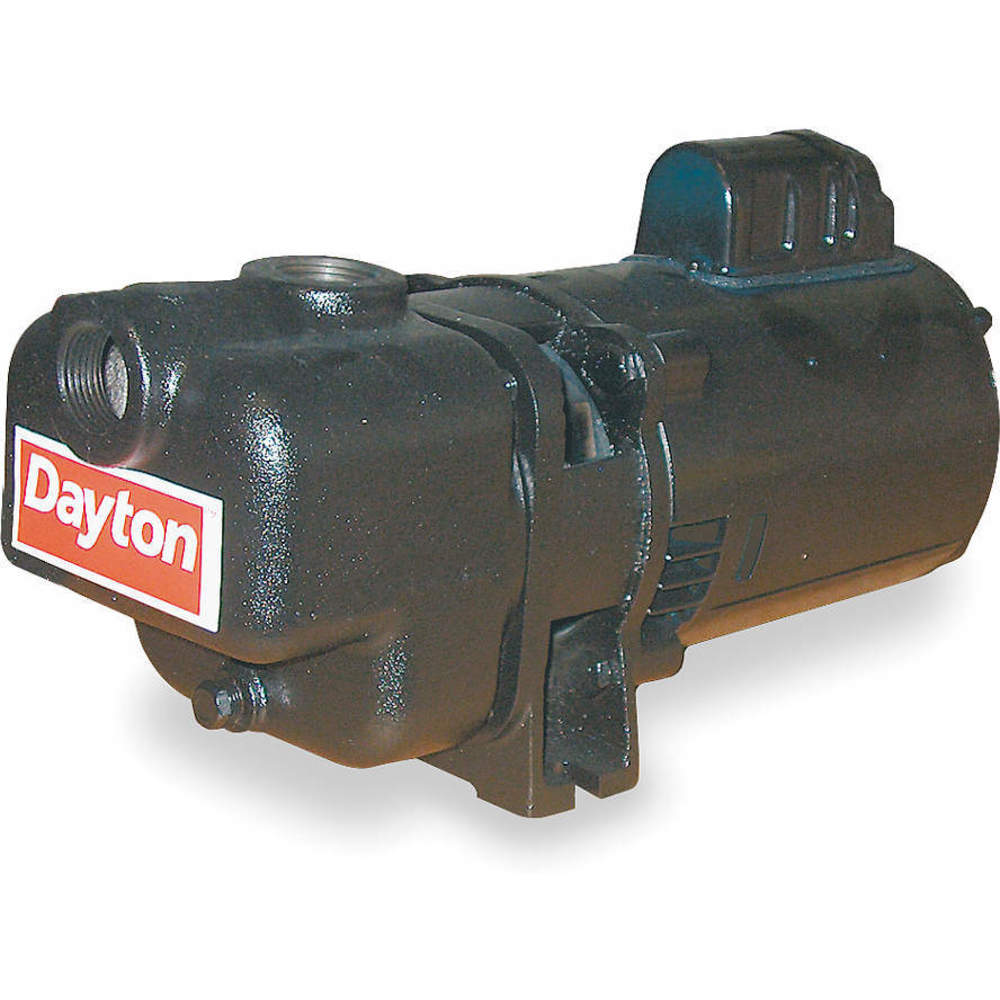

DAYTON 4UA76 Pump Centrifugal 2 Hp
Get it by Tuesday, Dec 23
10.00% off
€1,555.59 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Centrifugal Pump |
| Amps | 20/10A |
| Bearing Type | Ball |
| Best Efficiency Flow | 63-100 GPM |
| Best Efficiency Flow Range @ Head | 63 to 100 GPM @ 60 to 46 ft. |
| Best Efficiency Flow Rate | 63-100 GPM |
| Best Efficiency Flow Rate @ Head | 76 GPM @ 56 ft. |
| Best Efficiency Head | 46 ft. to 60 ft. |
| Compatible Discharge Pipe Size | 2" |
| Compatible Intake Pipe Size | 2" |
| Connection Type | NPT |
| Discharge Type | NPT |
| Duty Cycle | Continuous |
| Flow Rate @ 20 Ft. | 115 GPM |
| Flow Rate @ 25 Ft. | 132 GPM |
| Flow Rate @ 30 Ft. | 108 GPM |
| Flow Rate @ 40 Ft. | 99 GPM |
| Flow Rate @ 50 Ft. | 89 GPM |
| Flow Rate @ 60 Ft. | 64 GPM |
| Flow Rate @ 70 Ft. | 13 GPM |
| Flow Rate Of Water @ 15 Ft. | 145 GPM |
| Flow Rate Of Water @ 25 Ft. | 132 GPM |
| Flow Rate Of Water @ 50 Ft. | 92 GPM |
| For Use With Potable Systems | No |
| Frame | 56J |
| Frequency | 60 Hz |
| Gpm Of Water @ 20 Ft. | 138 GPM |
| Gpm Of Water @ 30 Ft. | 124 GPM |
| Gpm Of Water @ 40 Ft. | 109 GPM |
| Gpm Of Water @ 60 Ft. | 63 GPM |
| Gpm Of Water @ 70 Ft. | 13 GPM |
| Height | 9.1" |
| Housing Material | Cast Iron |
| Hp | 2 hp |
| Impeller Material | Cast Iron |
| Impeller Type | Semi Open |
| Inlet Pressure | 100 psi |
| Inlet Size | 2" |
| Length | 19 1/3" |
| Max. Case Pressure | 165 psi |
| Max. Flow Rate @ 15 Ft. | 118 GPM |
| Max. Flow Rate @ Head | 118 GPM @ 15 ft. |
| Max. Head | 72 ft. |
| Max. Media Temp. | 200°F |
| Max. Pressure | 31.1 psi |
| Max. Solid Dia. | 1/8" |
| Max. Suction Lift | 20 ft. |
| Maximum Flow Rate @ 20 Feet Of Head | 115 GPM |
| Maximum Flow Rate @ 30 Feet Of Head | 108 GPM |
| Maximum Flow Rate @ 40 Feet Of Head | 99 GPM |
| Maximum Flow Rate @ 50 Feet Of Head | 89 GPM |
| Maximum Flow Rate @ 60 Feet Of Head | 64 GPM |
| Min. Flow Rate @ Head | 24 GPM @ 70 ft. |
| Min. Gpm @ Head | 24 GPM @ 70 ft. |
| Min. Media Temp. | 40°F |
| Motor Enclosure Design | Open Dripproof |
| Motor Type | Capacitor Start |
| Outlet Size | 2" |
| Outlet Type | NPT |
| Overall Height | 9.1" |
| Overall Length | 19.3" |
| Overall Width | 6 4/5" |
| Phase | 1 |
| Port Rotation | None |
| Pump Housing Material | Cast Iron |
| Rpm | 3500 RPM |
| Rpm (maximum) | 3500 RPM |
| Screw Finish | Zinc Plated |
| Seal Application | Non-Flammable And Non-Abrasive Liquids Compatible With Seal Component Materials Up To 180 Deg. F |
| Seal Material | Buna N, Carbon Ceramic |
| Seal Type | Mechanical |
| Service Factor | 1.2 |
| Shaft Material | Stainless Steel |
| Solid Diameter (maximum) | 0.13" |
| Specific Gravity | 1 |
| Voltage | 115/230V AC |
| Volute Material | Cast Iron |
| Wetted Material | Buna N, Carbon, Cast Iron, Ceramic |
| Width | 6 4/5" |
Shipping Info:
| Ship weight (kg) | 28.33 |
| Ship height (cm) | 23.11 |
| Ship length (cm) | 49.02 |
| Ship width (cm) | 17.27 |
| HS code | 8413702015 |
| Country of Origin | IN |
Product Variants
| Product | Model | Hp | Phase | Max. Suction Lift | Max. Head | Pump Housing Material | Compatible Intake Pipe Size | Compatible Discharge Pipe Size | Motor Enclosure Design | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
12N810 | 3 hp | 3 | 20 ft. | 65 ft. | Cast Iron | 3" | 3" | - | €2,282.60 | |
 |
12N811 | 3 hp | 3 | 20 ft. | 65 ft. | Stainless Steel | 3" | 3" | Totally Enclosed Fan Cooled | €4,688.58 | |
|
12N812 | 5 hp | 3 | 20 ft. | 88 ft. | Cast Iron | 3" | 3" | Totally Enclosed Fan Cooled | €2,550.95 | |
|
12N813 | 5 hp | 3 | 20 ft. | 88 ft. | Stainless Steel | 3" | 3" | Totally Enclosed Fan Cooled | €4,549.58 | |
|
12N814 | 7 1/2 hp | 3 | 20 ft. | 90 ft. | Cast Iron | 3" | 3" | Totally Enclosed Fan Cooled | €3,106.03 | |
|
12N815 | 7 1/2 hp | 3 | 20 ft. | 90 ft. | Stainless Steel | 3" | 3" | Totally Enclosed Fan Cooled | €4,854.46 | |
 |
30SPM10 | 3 hp | 1 | 25 ft. | 92.4 ft. | Cast Iron | 2 1/2" | 2" | Open Dripproof | €4,538.21 |
