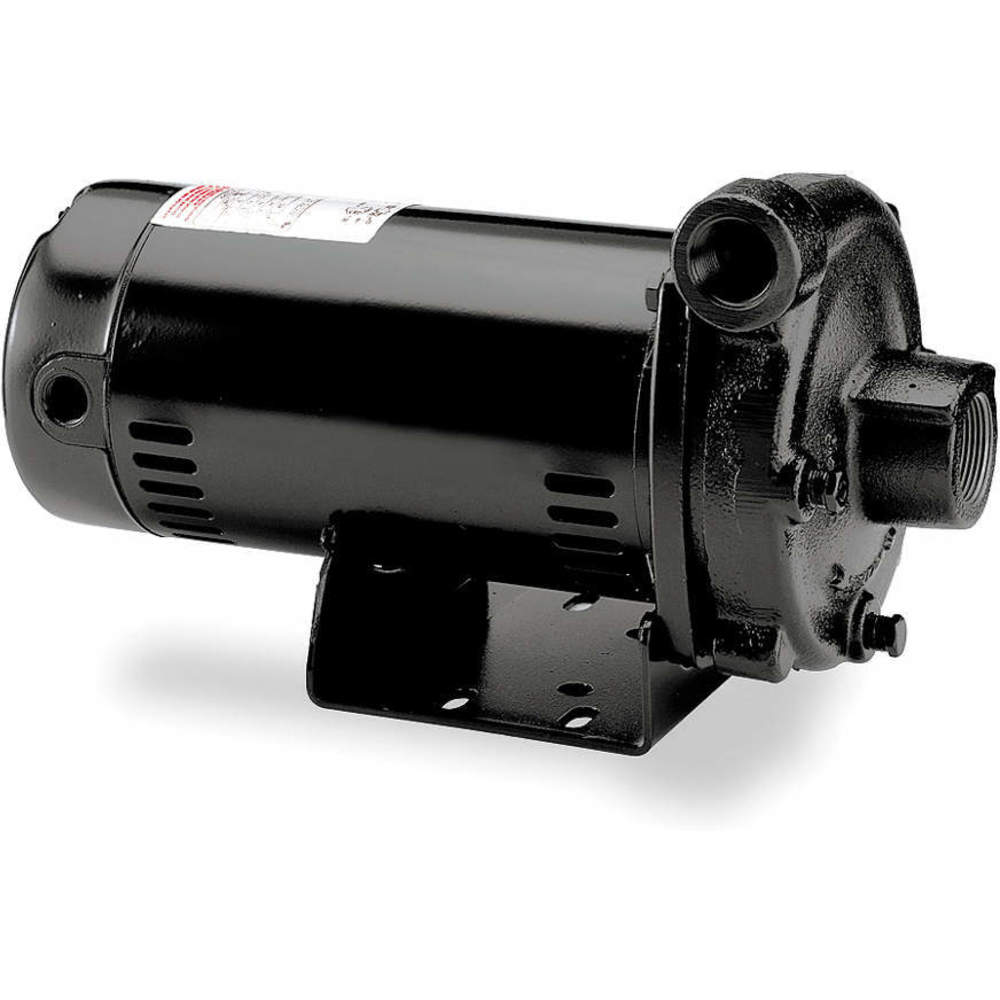

DAYTON 4RJ71 Pump Centrifugal 1/2hp
Get it by Tuesday, Feb 17
10.00% off
€645.26 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Centrifugal Pump |
| Amps | 2.3/1.15A |
| Bearing Type | Sealed |
| Best Efficiency Flow | 17 GPM |
| Best Efficiency Flow Range @ Head | 8 to 30 GPM @ 75 to 42 ft. |
| Best Efficiency Flow Rate @ Head | 17 GPM @ 58 ft. |
| Best Efficiency Head | 58 ft. |
| Compatible Discharge Pipe Size | 1" |
| Compatible Intake Pipe Size | 1 1/4" |
| Design | P |
| Drain Plug | Easily Accessible |
| Duty Cycle | Continuous |
| Flow Rate @ 1 Ft Of Head (maximum) | Not Applicable |
| Flow Rate @ 10 Ft Of Head (maximum) | Not Applicable |
| Flow Rate @ 100 Ft Of Head (maximum) | Not Applicable |
| Flow Rate @ 120 Ft Of Head (maximum) | Not Applicable |
| Flow Rate @ 140 Ft Of Head (maximum) | Not Applicable |
| Flow Rate @ 15 Ft Of Head (maximum) | Not Applicable |
| Flow Rate @ 160 Ft Of Head (maximum) | Not Applicable |
| Flow Rate @ 180 Ft Of Head (maximum) | Not Applicable |
| Flow Rate @ 20 Ft Of Head (maximum) | 37 GPM |
| Flow Rate @ 200 Ft Of Head (maximum) | Not Applicable |
| Flow Rate @ 220 Ft Of Head (maximum) | Not Applicable |
| Flow Rate @ 240 Ft Of Head (maximum) | Not Applicable |
| Flow Rate @ 260 Ft Of Head (maximum) | Not Applicable |
| Flow Rate @ 280 Ft Of Head (maximum) | Not Applicable |
| Flow Rate @ 30 Ft Of Head (maximum) | Not Applicable |
| Flow Rate @ 300 Ft Of Head (maximum) | Not Applicable |
| Flow Rate @ 40 Ft Of Head (maximum) | 31 GPM |
| Flow Rate @ 5 Ft Of Head (maximum) | Not Applicable |
| Flow Rate @ 50 Ft Of Head (maximum) | Not Applicable |
| Flow Rate @ 60 Ft Of Head (maximum) | 19 GPM |
| Flow Rate @ 70 Ft Of Head (maximum) | Not Applicable |
| Flow Rate @ 80 Ft Of Head (maximum) | 3 GPM |
| Flow Rate @ 90 Ft Of Head (maximum) | Not Applicable |
| For Use With Potable Systems | No |
| Frame | 48Y |
| Grade | Grade 316 |
| Height | 8 3/5" |
| Housing Material | Cast Iron |
| Hp | 1/2 hp |
| Hp - Pumps | 1/2 hp |
| Impeller Design | Closed |
| Impeller Material | Noryl |
| Impeller Type | Closed |
| Length | 13 3/5" |
| Max. Case Pressure | 100 psi |
| Max. Feet Of Head | 83 ft. |
| Max. Flow Rate | 37 GPM |
| Max. Flow Rate @ 20 Ft. | 37 GPM |
| Max. Flow Rate @ 40 Ft. | 31 GPM |
| Max. Flow Rate @ 60 Ft. | 19 GPM |
| Max. Flow Rate @ 80 Ft. | 3 GPM |
| Max. Flow Rate @ Head | 37 GPM @ 20 ft. |
| Max. Head | 83 ft. |
| Max. Liquid Temp. | 140°F |
| Max. Operating Pressure | 60 psi |
| Max. Specific Gravity | 1 |
| Max. Suction Lift | 25 ft. |
| Max. Viscosity | 1 cP |
| Min. Flow Rate @ Head | 3 GPM @ 80 ft. |
| Motor Enclosure - Pumps | Open Dripproof |
| Motor Enclosure Design | Open Dripproof |
| Motor Frame Designation | 48Y |
| Motor Type | P |
| Overall Height | 8 3/5" |
| Overall Length | 13 3/5" |
| Overall Width | 7 4/5" |
| Phase | 3 |
| Port Rotation | 90 Deg. Increments |
| Priming | Manual |
| Pump Housing Material | Cast Iron |
| Rpm | 3450 RPM |
| Seal Application | Water |
| Seal Material Grade | Grade 316 , Stainless Steel, Buna N, Carbon, Ceramic |
| Seal Type | Type 21 |
| Self Priming | Manual |
| Shut Off Pressure | 60 psi |
| Shut Off Pressure (maximum) | 60 psi |
| Specific Gravity | 1 |
| Specific Gravity (maximum) | 1 |
| Type | Close Coupled, High Head |
| Voltage | 208-230/460V AC |
| Wetted Material | Buna N, Carbon, Cast Iron, Ceramic, Noryl, Stainless Steel |
| Wetted Materials | Buna N, Carbon, Cast Iron, Ceramic, Noryl, Stainless Steel |
| Width | 7 4/5" |
Shipping Info:
| Ship weight (kg) | 13.34 |
| Ship height (cm) | 21.84 |
| Ship length (cm) | 34.54 |
| Ship width (cm) | 19.81 |
| HS code | 8413702090 |
| Country of Origin | US |
Product Variants
| Product | Model | Hp | Phase | Shut Off Pressure | Motor Enclosure Design | Voltage | Housing Material | Compatible Intake Pipe Size | Compatible Discharge Pipe Size | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
12A075 | 7 1/2 hp | 3 | 65 psi | Totally Enclosed Fan Cooled | 208-230/460V AC | Cast Iron | 2 1/2" | 2" | €2,706.50 | |
 |
12A076 | 7 1/2 hp | 3 | 65 psi | Totally Enclosed Fan Cooled | 208-230/460V AC | Stainless Steel | 2 1/2" | 2" | €3,919.52 | |
|
12A079 | 10 hp | 3 | 82 psi | Totally Enclosed Fan Cooled | 208-230/460V AC | Cast Iron | 2 1/2" | 2" | €3,620.22 | |
|
12A080 | 10 hp | 3 | 82 psi | Totally Enclosed Fan Cooled | 208-230/460V AC | Stainless Steel | 2 1/2" | 2" | €4,295.12 | |
 |
2ZWN9 | 1/3 hp | 1 | 19 psi | Open Dripproof | 115/230V AC | Cast Iron | 1" | 3/4" | €569.70 | |
 |
2ZWP1 | 1/2 hp | 1 | 19 psi | Open Dripproof | 115/230V AC | Cast Iron | 1 1/4" | 1" | €594.07 | |
|
2ZWP2 | 1/2 hp | 3 | 19 psi | Open Dripproof | 208-230/460V AC | Cast Iron | 1 1/4" | 1" | €634.81 |
