DAYTON 4RJ69 Pump Centrifugal 2.5hp | AD9FND 4291K57

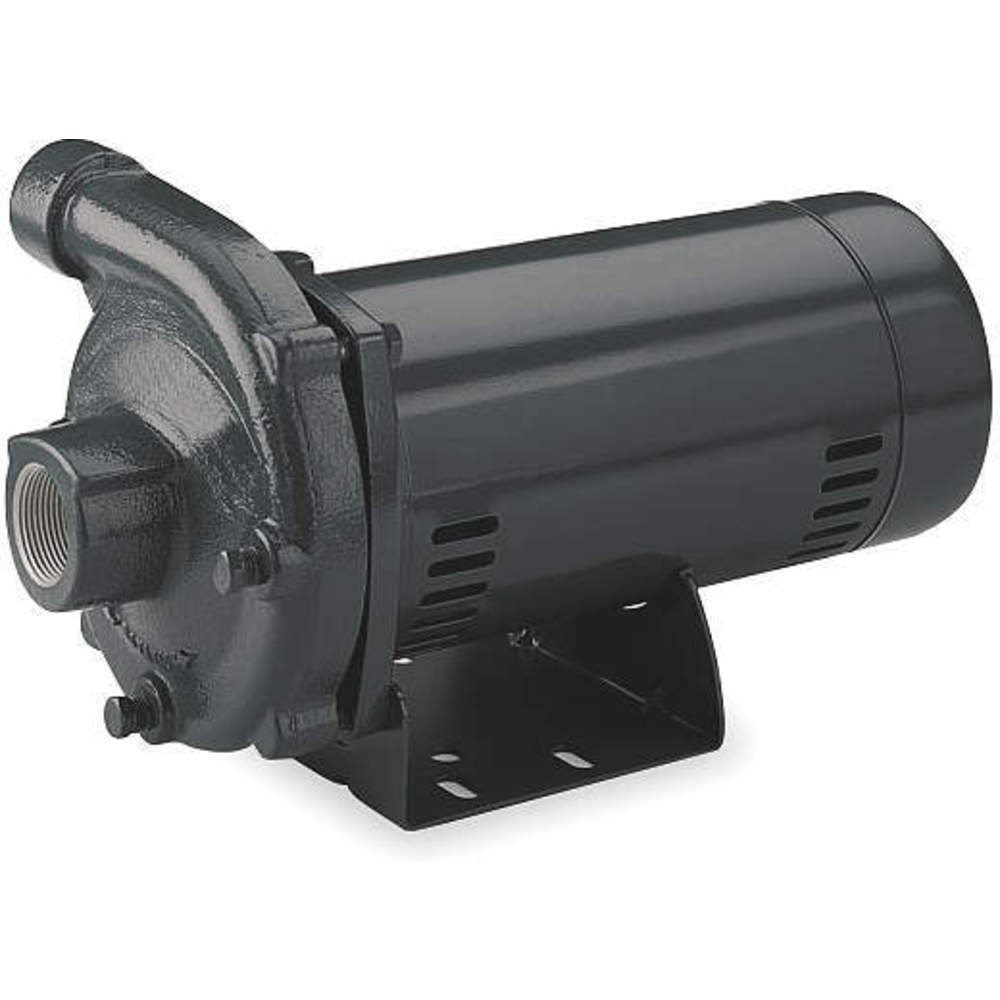

DAYTON 4RJ69 Pump Centrifugal 2.5hp

Item: AD9FNDModel: 4RJ69
Check Availability
In Stock

Get it by Tuesday, Feb 17

€3,308.06
10.00% off
€2,977.25 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

Item Centrifugal Pump
Amps 11.7A
Bearing Type Sealed
Best Efficiency Flow 75 GPM
Best Efficiency Flow Range @ Head 55 to 65 GPM @ 115 to 75 ft.
Best Efficiency Flow Rate @ Head 75 GPM @ 85 ft.
Best Efficiency Head 85 ft.
Compatible Discharge Pipe Size 1 1/2"
Compatible Intake Pipe Size 2"
Connection Type NPT
Design K
Discharge Type NPT
Drain Plug Easily Accessible
Duty Cycle Continuous
Flow Rate @ 1 Ft Of Head (maximum) Not Applicable
Flow Rate @ 10 Ft Of Head (maximum) Not Applicable
Flow Rate @ 100 Ft Of Head (maximum) 53 GPM
Flow Rate @ 120 Ft Of Head (maximum) 37 GPM
Flow Rate @ 140 Ft Of Head (maximum) Not Applicable
Flow Rate @ 15 Ft Of Head (maximum) Not Applicable
Flow Rate @ 160 Ft Of Head (maximum) Not Applicable
Flow Rate @ 180 Ft Of Head (maximum) Not Applicable
Flow Rate @ 20 Ft Of Head (maximum) 92 GPM
Flow Rate @ 200 Ft Of Head (maximum) Not Applicable
Flow Rate @ 220 Ft Of Head (maximum) Not Applicable
Flow Rate @ 240 Ft Of Head (maximum) Not Applicable
Flow Rate @ 260 Ft Of Head (maximum) Not Applicable
Flow Rate @ 280 Ft Of Head (maximum) Not Applicable
Flow Rate @ 30 Ft Of Head (maximum) Not Applicable
Flow Rate @ 300 Ft Of Head (maximum) Not Applicable
Flow Rate @ 40 Ft Of Head (maximum) 85 GPM
Flow Rate @ 5 Ft Of Head (maximum) Not Applicable
Flow Rate @ 50 Ft Of Head (maximum) Not Applicable
Flow Rate @ 60 Ft Of Head (maximum) 77 GPM
Flow Rate @ 70 Ft Of Head (maximum) Not Applicable
Flow Rate @ 80 Ft Of Head (maximum) 67 GPM
Flow Rate @ 90 Ft Of Head (maximum) Not Applicable
For Use With Potable Systems No
Frame 56Y
Frequency 60 Hz
Gpm Of Water @ 100 Ft. Of Head 53
Gpm Of Water @ 120 Ft. Of Head 37
Grade Grade 316
Height 8.9"
Housing Material Cast Iron
Hp 2 1/2 hp
Hp - Pumps 2 1/2 hp
Impeller Design Closed
Impeller Material Silicon Brass
Impeller Type Closed
Length 17 2/3"
Max. Case Pressure 100 psi
Max. Feet Of Head 142 ft.
Max. Flow Rate 92 GPM
Max. Flow Rate @ 100 Ft. 53 GPM
Max. Flow Rate @ 120 Ft. 37 GPM
Max. Flow Rate @ 20 Ft. 92 GPM
Max. Flow Rate @ 40 Ft. 85 GPM
Max. Flow Rate @ 60 Ft. 77 GPM
Max. Flow Rate @ 80 Ft. 67 GPM
Max. Flow Rate @ Head 92 GPM @ 20 ft.
Max. Head 142 ft.
Max. Liquid Temp. 225°F
Max. Operating Pressure 60 psi
Max. Specific Gravity 1
Max. Suction Lift 25 ft.
Max. Viscosity 1 cP
Min. Flow Rate @ Head 37 GPM @ 120 ft.
Motor Enclosure Design Totally Enclosed Fan Cooled
Motor Frame Designation 56Y
Motor Type K
Overall Height 8.9"
Overall Length 17.7"
Overall Width 8 3/5"
Phase 1
Port Rotation 90 Deg. Increments
Priming Manual
Pump Housing Material Cast Iron
Rpm 3450 RPM
Rpm (maximum) 3450 RPM
Seal Application Water
Seal Material Grade Grade 316 , Stainless Steel, Buna N, Carbon, Ceramic
Seal Type Type 21
Self Priming Manual
Shut Off Pressure 60 psi
Shut Off Pressure (maximum) 60 psi
Specific Gravity 1
Specific Gravity (maximum) 1
Type Close Coupled, High Head
Voltage 230V AC
Wetted Material Buna N, Carbon, Cast Iron, Ceramic, Silicon Brass, Stainless Steel
Wetted Materials Buna N, Carbon, Cast Iron, Ceramic, Silicon Brass, Stainless Steel
Width 8 3/5"

Shipping Info:

Ship weight (kg) 32.85
Ship height (cm)22.61
Ship length (cm)44.96
Ship width (cm)21.84
HS code8413702090
Country of OriginUS
