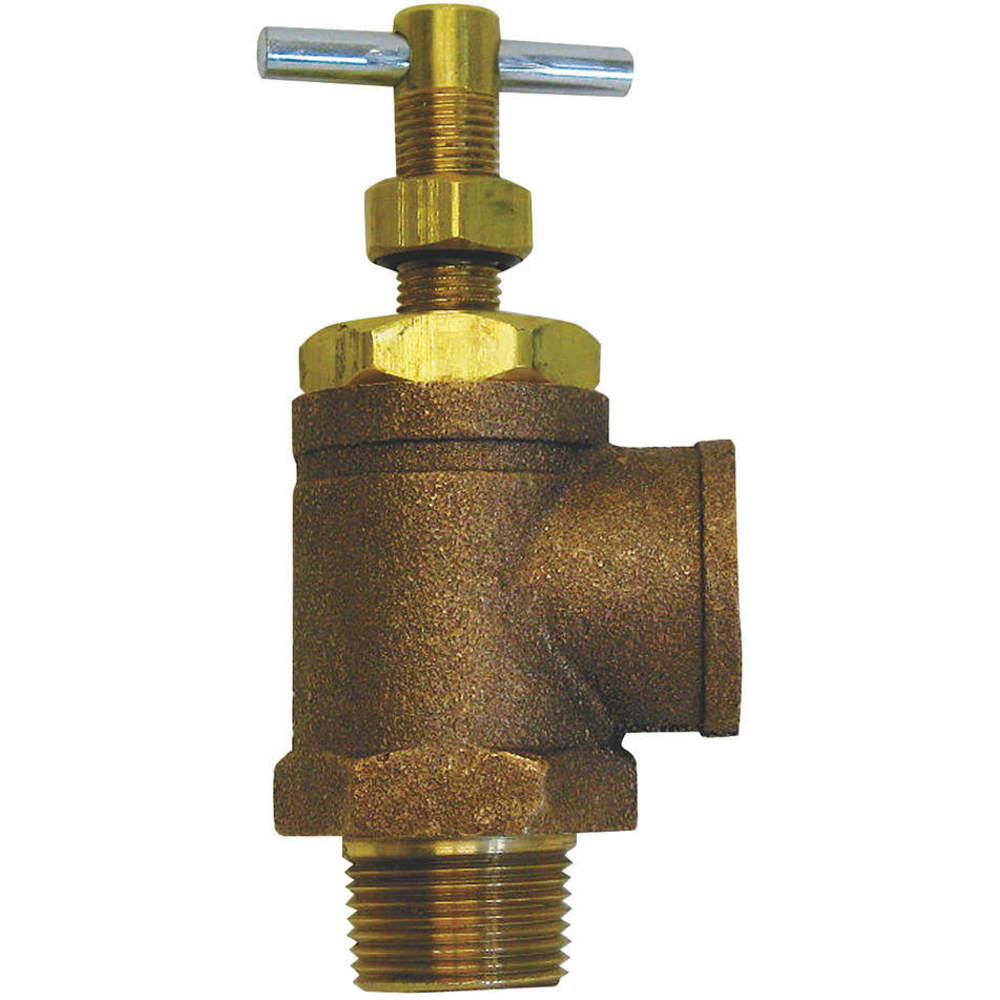

DAYTON 4KGZ8 Relief Valve 6 Gpm 1/2 Npt x 1/2 Npt
Item: AD8HEVModel: 4KGZ8
7 In Stock
Ships within 2 days via
5.00% off
€109.91 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Valve |
| Application | For Prevention Of Damage To Positive Displacement Pumps |
| Connection Type | MNPT x FNPT |
| Factory Set Pressure | 600 psi |
| For Media | Oil, Water |
| For Use With | Postive Displacement Pumps |
| Inlet Port | 1/2 (M)NPT |
| Inlet Port Size | 1/2" |
| Inlet Port Type | MNPT |
| Max. Flow Gpm | 6 |
| Max. Flow Rate | 6 GPM |
| Max. Fluid Temp. | 180°F |
| Max. Pressure | 650 psi |
| Operating Pressure | 300 psi to 650 psi |
| Operating Temp. | 41°F to 180°F |
| Outlet Connection Size | 1/2" |
| Outlet Port | 1/2 (F)NPT |
| Outlet Port Size | 1/2" |
| Outlet Port Type | FNPT |
| Overall Height | 4" |
| Overall Width | 1 5/8" |
| Pressure | 300 psi to 600 psi |
| Pressure Adjustment Range | 15 psi to 150 psi |
| Product Type | Pressure Relief Valve |
| Seat Material | Stainless Steel |
| Seat Material Grade | Grade 304 |
| Spring Material | 304 Stainless Steel |
| Type | Pressure Relief |
| Wetted Material | Stainless Steel |
Shipping Info:
| Ship weight (kg) | 0.32 |
| Ship height (cm) | 7.62 |
| Ship length (cm) | 12.7 |
| Ship width (cm) | 6.35 |
| HS code | 8481400000 |
| Country of Origin | IN |
Product Variants
| Model | Outlet Connection Size | Inlet Port Size | Max. Pressure | Overall Height | Outlet Port Size | Max. Flow Rate | Pressure | Overall Width | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 4KGZ7 | 3/4" | 3/4" | 600 psi | 4 1/2" | 3/4" | 6 GPM | 300 psi to 600 psi | 2 1/8" | €99.93 | |
| 4KHA1 | 3/4" | 3/4" | 650 psi | 4 1/2" | 3/4" | 25 GPM | 0 psi to 300 psi | 2 1/8" | €110.72 | |
| 4KHA2 | 3/4" | 1" | 650 psi | 4 3/4" | 3/4" | 40 GPM | 0 psi to 400 psi | 2 1/2" | €265.75 |
