DAYTON 4JPF4 Turbine Pump 1/2 Hp 3-phase 1.7/0.9 Amp | AD8EXW

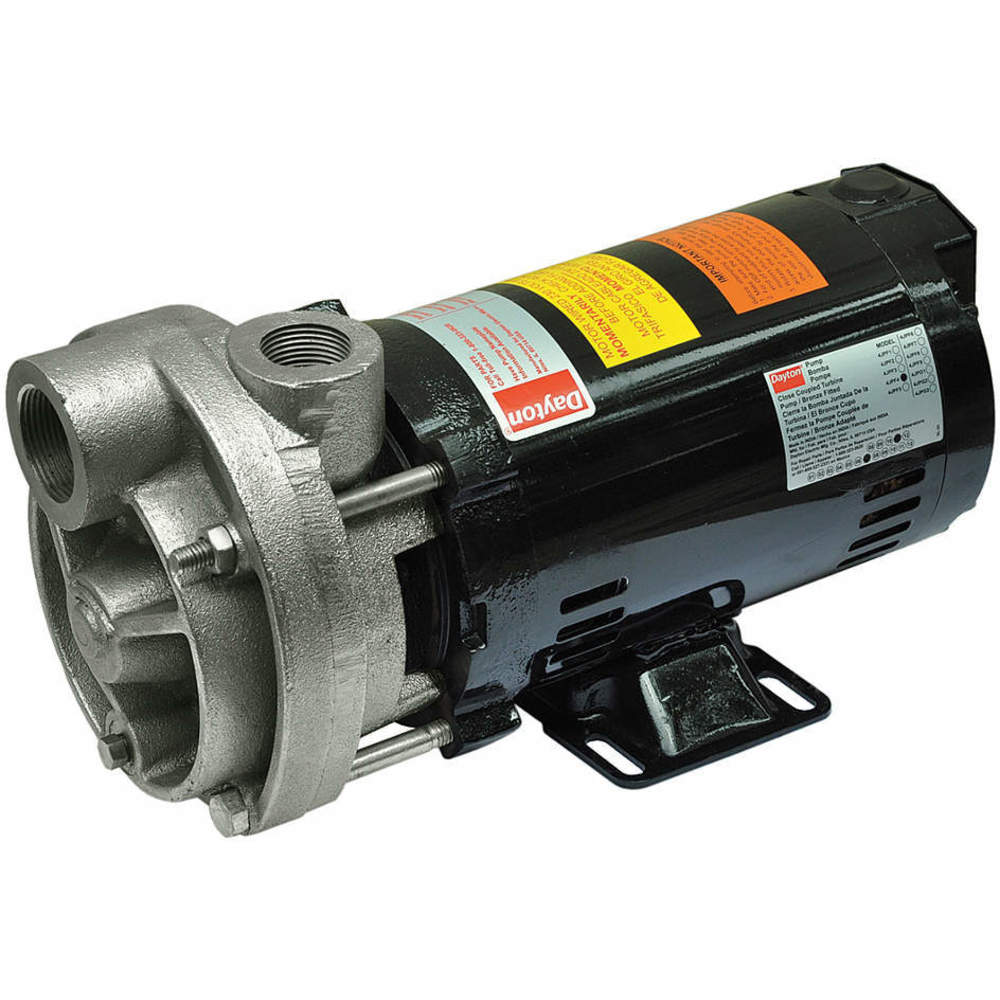

DAYTON 4JPF4 Turbine Pump 1/2 Hp 3-phase 1.7/0.9 Amp

Item: AD8EXWModel: 4JPF4
Check Availability
In Stock

Get it by Wednesday, Dec 24

€1,339.41
10.00% off
€1,205.47 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

Item Turbine pump
Amps 1.8-1.7/0.9A
Bearing Type Ball
Best Efficiency Flow Range @ Head 60 to 100 GPM @ 2.3 to 1.3 to ft.
Best Efficiency Flow Rate @ Head 1.9 GPM @ 75 ft.
Best Efficiency Head 75 ft.
Bracket Finish Nickel Plated
Compatible Discharge Pipe Size 1"
Compatible Intake Pipe Size 1 1/4"
Connection Type NPT
Cover Material Cast Iron
Drain Plug Easily Accessible At Bottom
Duty Continuous
Duty Cycle Continuous
Face Seal Material Buna N, Carbon, Ceramic
Features Designed To Handle Liquids With Entrained Air
Finish Zinc Plated
Flow Rate @ 10 Psi 3.8 GPM
Flow Rate @ 100 Psi 1.3 GPM
Flow Rate @ 120 Psi 0 GPM
Flow Rate @ 140 Psi Not Applicable
Flow Rate @ 15 Psi Not Applicable
Flow Rate @ 160 Psi Not Applicable
Flow Rate @ 180 Psi Not Applicable
Flow Rate @ 20 Psi 3.4 GPM
Flow Rate @ 200 Psi Not Applicable
Flow Rate @ 220 Psi Not Applicable
Flow Rate @ 240 Psi Not Applicable
Flow Rate @ 260 Psi Not Applicable
Flow Rate @ 30 Psi 3.1 GPM
Flow Rate @ 40 Psi 2.8 GPM
Flow Rate @ 50 Psi 2.6 GPM
Flow Rate @ 60 Psi 2.3 GPM
Flow Rate @ 70 Psi Not Applicable
Flow Rate @ 75 Psi 1.9 GPM
Flow Rate @ 80 Psi 1.7 GPM
Flow Rate @ 90 Psi 1.5 GPM
Frame 56J
Frequency 60 Hz
Gasket Material Buna N
Gpm @ 10 Psi 3.8
Gpm @ 100 Psi 1.3
Gpm @ 30 Psi 3.1
Gpm @ 50 Psi 2.6
Gpm @ 60 Psi 2.3
Gpm @ 75 Psi 1.9
Gpm @ 80 Psi 1.7
Grade Grade 304, Grade 316
Height 7 5/8"
Housing Material Cast Iron
Hp 1/2 hp
Impeller Design Open
Impeller Material Bronze
Impeller Type Open
Inlet Pressure 85 psi
Inlet Size 1 1/4"
Intake And Discharge Size 1 1/4", 1"
Length 14 3/8"
Material Stainless Steel
Max. Case Pressure 200 psi
Max. Flow Rate 3.8 GPM
Max. Media Temp. 230°F
Max. Pressure 120 psi
Max. Specific Gravity 1
Min. Flow Rate 1.3 GPM
Min. Media Temp. -20°F
Motor Enclosure Design Open Dripproof
Motor Frame Designation 56J
Motor Type Three Phase
Nameplate Voltage 208-230/460V AC
Npshr 85 psi
Operation Manual
Outlet 1"
Outlet Size 1"
Outlet Type NPT
Overall Height 7.63"
Overall Width 6 3/4"
Phase 3
Priming Self Priming
Pump Housing Material Cast Iron
Rpm 3450 RPM
Rpm (maximum) 3450 RPM
Seal Application Long Life When Not Run Dry Or Pumping Abrasives
Seal Type Mechanical Seal
Seat Material Carbon Ceramic
Self Priming Yes
Service Factor 1.6
Shaft Material Bronze, Stainless Steel
Shaft Size 5/8"
Shut Off Pressure 120 psi
Shut Off Pressure (maximum) 120 psi
Specific Gravity 1
Specific Gravity (maximum) 1
Type Centrifugal
Voltage 208/230/460V AC
Volute Material Cast Iron
Wetted Material Grade Grade 316 , Stainless Steel, Bronze, Buna N, Carbon, Cast Iron, Ceramic
Width 6 3/4"

Shipping Info:

Ship weight (kg) 19.57
Ship height (cm)34.8
Ship length (cm)56.13
Ship width (cm)28.7
HS code8413702005
Country of OriginIN

Product Variants

ProductModelFlow Rate @ 10 PsiFlow Rate @ 20 PsiFlow Rate @ 30 PsiCompatible Intake Pipe SizeCompatible Discharge Pipe SizeMax. Flow RateMin. Flow RateFlow Rate @ 40 PsiPrice

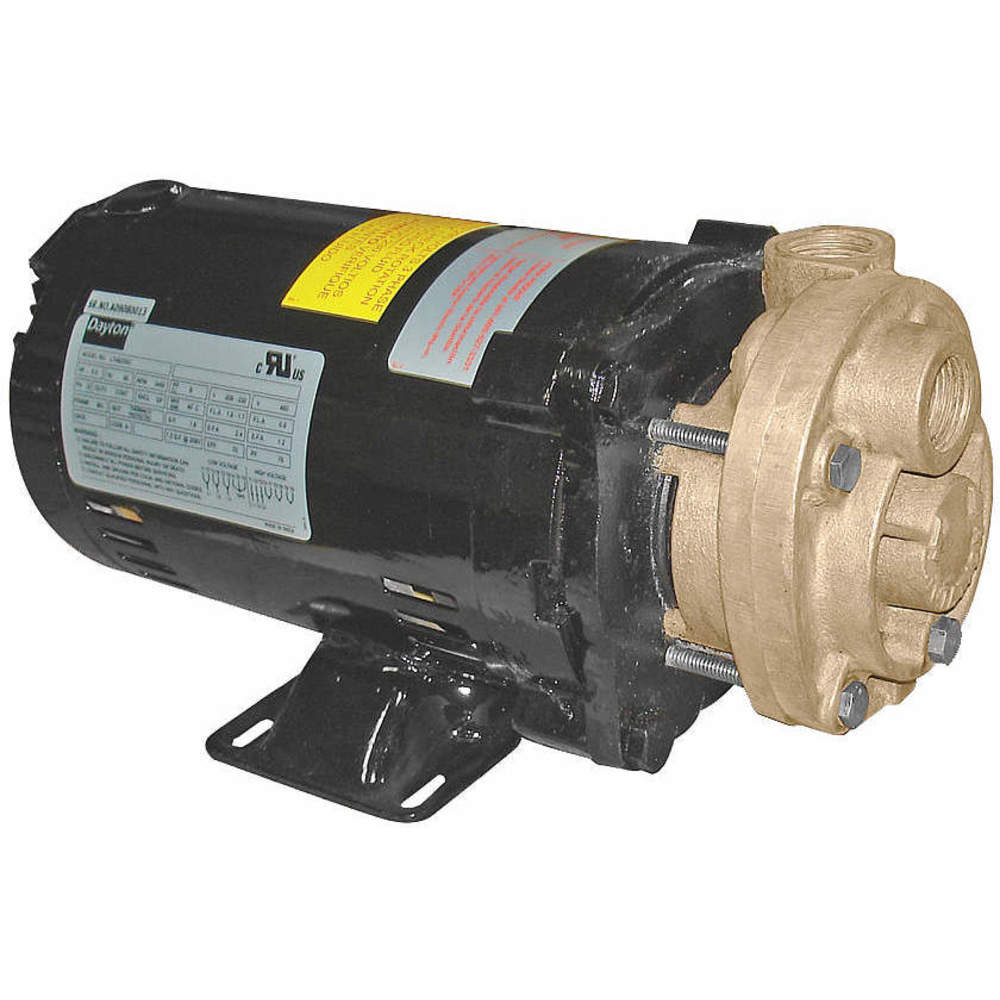

DAYTON 4JPD6 Turbine Pump 1/2 Hp 3-phase 1.7/0.9 Amp | AD8EXD 4JPD66 GPM5.4 GPM4.9 GPM3/4"3/4"6 GPM1.2 GPM4.3 GPM€1,606.07
