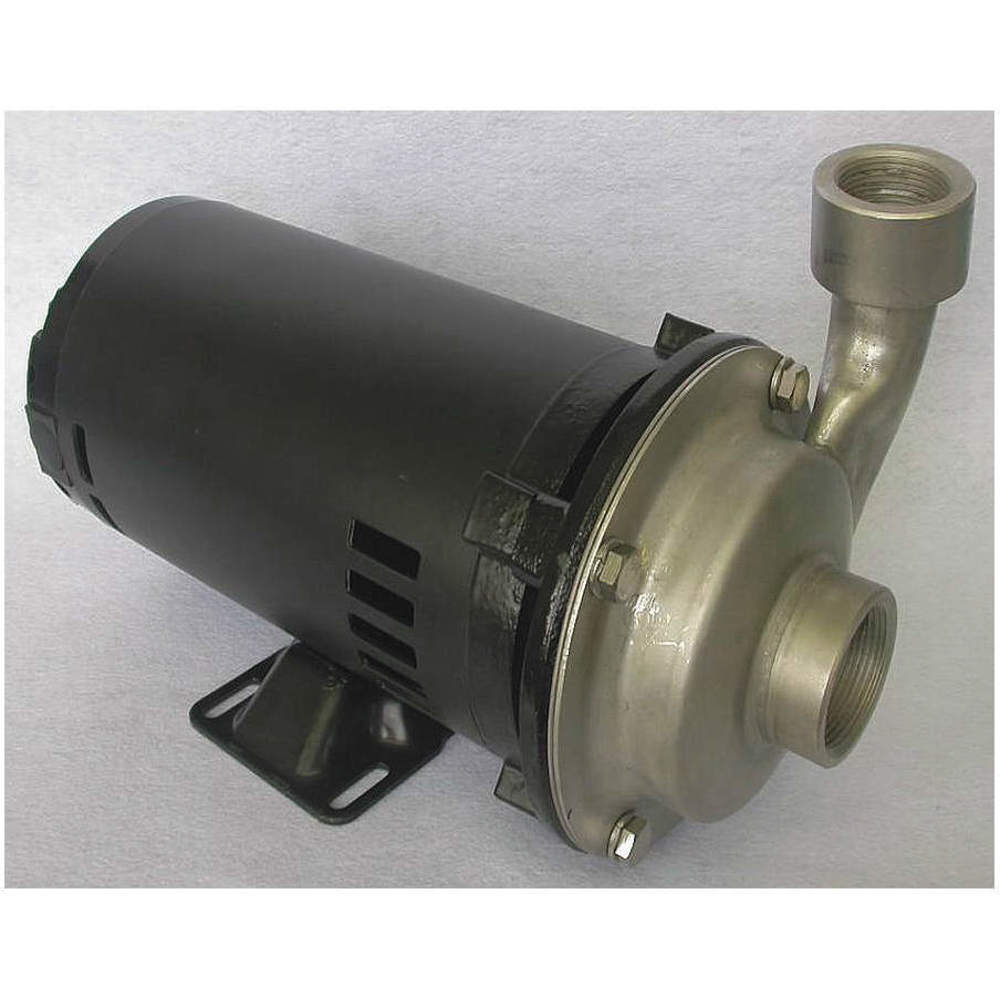

DAYTON 4JMV8 Pump 1 Hp 230/460v 4.8/2.4 Amp
Get it by Tuesday, Dec 23
10.00% off
€1,378.03 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Centrifugal Pump |
| Amps | 4.8/2.4A |
| Application | Chemical Processing, Circulating, Cooling, Liquid Transfer, Pressure Boosting, Recirculation |
| Bearing Type | Ball |
| Best Efficiency Flow | 48 GPM |
| Best Efficiency Flow Range @ Head | 21 to 66 GPM @ 50 to 20 ft. |
| Best Efficiency Flow Rate | 48 GPM |
| Best Efficiency Flow Rate @ Head | 48 GPM @ 40 ft. |
| Best Efficiency Head | 40 ft. |
| Compatible Motor Frame | 56J NEMA |
| Discharge Pipe Size | 1 1/4" |
| Discharge Pipe Type | NPT |
| Discharge Port Size | 1 1/4" |
| Discharge Port Type | NPT |
| Discharge Rotation | 90° Increments |
| Drain Plug | None |
| Duty Cycle | Continuous |
| Feet Of Head (maximum) | 65 ft. |
| Flow Rate @ 1 Ft. | 82 GPM |
| Flow Rate @ 10 Ft. | 75 GPM |
| Flow Rate @ 20 Ft. | 65 GPM |
| Flow Rate @ 25 Ft. | 56 GPM |
| Flow Rate @ 30 Ft. | 48 GPM |
| Flow Rate @ 40 Ft. | 26 GPM |
| Flow Rate @ 5 Ft. | 79 GPM |
| Flow Rate @ 50 Ft. | 24 GPM |
| Flow Rate @ 60 Ft. | 3 GPM |
| For Use With Potable Systems | No |
| Frame | 56J |
| Frequency | 60 Hz |
| Grade | Grade 304 |
| Height | 7 7/8" |
| Horsepower (maximum) | 1 hp |
| Housing Material | Stainless Steel |
| Hp | 1 hp |
| Impeller Design | Closed |
| Impeller Material | Stainless Steel |
| Impeller Type | Closed |
| Includes | Manual |
| Inlet Pressure | 121 psi |
| Inlet Size | 1 1/2" |
| Inlet Type | NPT |
| Intake Pipe Size | 1 1/2" |
| Intake Pipe Type | NPT |
| Length | 14 1/4" |
| Manufacturers Warranty Length | 1 yr. |
| Max. Ambient Temp. | 104°F |
| Max. Case Pressure | 150 psi |
| Max. Flow @ 1 Ft Of Head | 82 GPM |
| Max. Flow @ 10 Ft Of Head | 75 GPM |
| Max. Flow @ 20 Ft Of Head | 65 GPM |
| Max. Flow @ 25 Ft Of Head | 56 GPM |
| Max. Flow @ 30 Ft Of Head | 48 GPM |
| Max. Flow @ 40 Ft Of Head | 26 GPM |
| Max. Flow @ 5 Ft Of Head | 79 GPM |
| Max. Flow @ 60 Ft Of Head | 3 GPM |
| Max. Flow Rate | 90 GPM |
| Max. Flow Rate @ 15 Ft. | 70 GPM |
| Max. Head | 65 ft. |
| Max. Media Temp. | 200°F |
| Max. Solid Dia. | 1/8" |
| Max. Viscosity | 31 SUS |
| Min. Ambient Temp. | 40°F |
| Min. Flow Rate | 8 GPM |
| Min. Flow Rate @ Head | 8 GPM @ 60 ft. |
| Min. Media Temp. | 40°F |
| Motor Enclosure Design | Open Dripproof |
| Motor Speed (maximum) | 3450 RPM |
| Motor Type | Three Phase Induction |
| Nameplate Voltage | 230/460V AC |
| Outlet Size | 1 1/4" |
| Outlet Type | NPT |
| Overall Height | 7.9" |
| Overall Length | 14.3" |
| Overall Width | 6 3/5" |
| Phase | 3 |
| Port Rotation | 90 Deg. Increments |
| Priming | Manual |
| Screw Material | Stainless Steel |
| Seal Material | Carbon Ceramic, Stainless Steel, Viton |
| Seal Type | Mechanical |
| Self Priming | Manual |
| Service Factor | 1.15 |
| Shaft Material | Stainless Steel |
| Shaft Outside Dia. | 7/16" |
| Shut Off Pressure (maximum) | 150 psi |
| Solid Diameter (maximum) | 0.13" |
| Specific Gravity | 1 |
| Specific Gravity (maximum) | 1 xg |
| Standards | Cus |
| Suction Port | 1 1/2" NPT |
| Type | Chemical Resistant |
| Voltage | 230/460V AC |
| Volute Material | Stainless Steel |
| Volute Material Grade | Grade 304 |
| Wetted Material | Stainless Steel, Carbon, Ceramic, Viton |
| Width | 6 5/9" |
Shipping Info:
| Ship weight (kg) | 15.75 |
| Ship height (cm) | 20.07 |
| Ship length (cm) | 36.32 |
| Ship width (cm) | 16.76 |
| HS code | 8413702005 |
| Country of Origin | CN |
Product Variants
| Model | Hp | Housing Material | Nameplate Voltage | Max. Head | Outlet Size | Phase | Max. Flow Rate | Max. Flow Rate @ 15 Ft. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 2YER2 | 1/3 hp | Polypropylene | 115/230V AC | 62 ft. | 1 1/2" | 1 | 22 GPM | 20 GPM | €1,283.93 | |
| 2YER3 | 1/2 hp | Polypropylene | 115/230V AC | 68 ft. | 1 1/2" | 1 | 26 GPM | 24 GPM | €1,284.96 | |
| 2YER4 | 1/2 hp | Polypropylene | 208-230/460V AC | 68 ft. | 1 1/2" | 3 | 26 GPM | 24 GPM | €1,290.98 | |
| 2YER5 | 3/4 hp | Polypropylene | 115/230V AC | 72 ft. | 1 1/2" | 1 | 37 GPM | 35 GPM | €1,278.16 | |
| 2YER6 | 3/4 hp | Polypropylene | 208-230/460V AC | 72 ft. | 1 1/2" | 3 | 37 GPM | 35 GPM | €1,442.31 | |
| 2YER7 | 1 hp | Polypropylene | 115/230V AC | 79 ft. | 1 1/2" | 1 | 55 GPM | 54 GPM | €1,478.57 | |
| 2YER8 | 1 hp | Polypropylene | 208-230/460V AC | 79 ft. | 1 1/2" | 3 | 55 GPM | 54 GPM | €1,543.11 |
