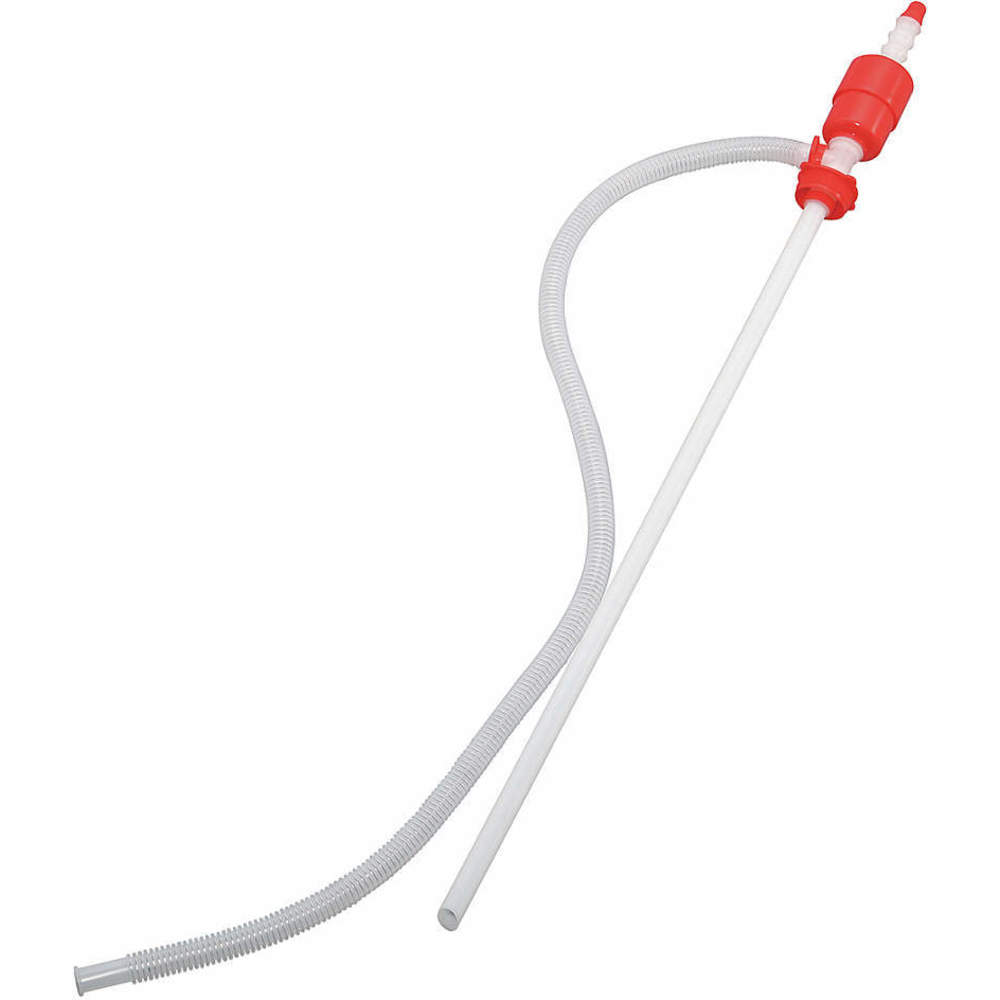

DAYTON 4HA27 Pump Siphon 5 GPM
Item: AD7XNCModel: 4HA27
7 In Stock
Ships within 2 days via
10.00% off
€16.87 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Hand Operated Drum Pump |
| Action Type | Piston |
| Adapter Dia. | 2" |
| Adapter Material | Polyethylene |
| Adapter Size | 2" |
| Application | Low-Viscosity Fluids |
| Bung Connection Dia. | 2" |
| Compatible Chemicals | Antifreeze (Coolant), Automatic Transmission Fluid, DEF, Deionized Water, Ethyl (Ethanol), Fresh Water, Isopropyl (Isopropanol), Motor Oil, Salt Water, Sodium Hypochlorite/Bleach (To 20%) |
| Discharge Tube Inside Dia. | 1" |
| Discharge Tube Length | 54" |
| Discharge Tube Outlet I.d. | 1" |
| Discharge Tube Outlet Id Size | 15/16" |
| Discharge Tube Outlet O.d. | 1" |
| Discharge Tube Outlet Od Size | 1" |
| Discharge Tubing Material | Corrugated Flexible Polyethylene |
| Features | Light Weight |
| Fits Container Size | 15 gal., 30 gal., 55 gal. |
| Flow Rate | 5 GPM |
| For Container Size | 55 gal. |
| For Container Type | Drum |
| For Media Type | Antifreeze, Automatic Transmission Fluid, Bleach, Def, Ethanol, Isopropanol, Motor Oil, Water |
| For Use On | 15, 30 And 55 Gal. Drums |
| For Use With | Low-Viscosity Fluids |
| Hose Inside Dia. | 15/16" |
| Hose Outside Dia. | 1" |
| Housing Material | Polyethylene |
| Housing Material - Pumps | Polyethylene |
| Includes | Discharge Tubing |
| Includes Bung Adapter | Yes |
| Includes Discharge Hose | Yes |
| Includes Nozzle | No |
| Includes Suction Tube | Yes |
| Inlet Size | 1" |
| Length | 43 1/2" |
| Max. Flow Rate | 5 gal. @ 120 Strokes |
| Max. Temp. | 140°F |
| Max. Viscosity | 500 SUS |
| Metered | No |
| Not Recommended Chemicals | Diesel Fuel, Gasoline, Kerosene, Lithium Grease, Methyl Ethyl Ketone (Mek) |
| Outlet Material | Polyethylene |
| Overall Length | 43 1/2" |
| Piston Material | Polyethylene |
| Power Source | Hand Operated |
| Promotional Badge | Best Seller |
| Pump Body Material | Polyethylene |
| Pump Package Type | Basic Pump With Discharge Hose |
| Self Priming | Yes |
| Self-priming | Yes |
| Suction Tube Length | 34" |
| Suction Tube O.d. | 7/8" |
| Suction Tube Outlet O.d. Size | 7/8" |
| Suction Tube Outside Dia. | 7/8" |
| Suction Tube Type | Tube |
| Wetted Material | Polyethylene |
| Wetted Materials | Polyethylene, Polypropylene |
Shipping Info:
| Ship weight (kg) | 0.63 |
| Ship height (cm) | 8.13 |
| Ship length (cm) | 113.03 |
| Ship width (cm) | 12.19 |
| HS code | 8413200000 |
| Country of Origin | US |
Product Variants
| Product | Model | Max. Viscosity | Includes Suction Tube | For Container Size | Diesel Exhaust Fluid Compatible | Includes Discharge Hose | Includes Nozzle | Includes Bung Adapter | Metered | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
2RUK2 | 1500 SUS | Yes | 15 gal., 30 gal., 55 gal. | - | Yes | Yes | Yes | No | €402.19 | |
 |
38Y792 | 2000 SUS | Yes | 15 gal., 30 gal., 55 gal. | - | No | No | Yes | No | €361.69 | |
 |
3BY44 | 4000 SUS | Yes | 15 gal., 30 gal., 55 gal. | - | Yes | No | Yes | No | €60.55 | |
 |
4HA26 | 1500 SUS | Yes | 15 gal., 30 gal., 55 gal. | - | No | No | Yes | No | €138.51 | |
 |
4HA33 | 4000 SUS | Yes | 15 gal., 30 gal., 55 gal. | - | No | No | Yes | No | €40.09 | |
 |
4VCR2 | 2000 SUS | Yes | 15 gal., 30 gal., 55 gal. | - | No | No | Yes | - | €182.42 | |
 |
4VCR3 | 2000 SUS | Yes | 15 gal., 30 gal., 55 gal. | - | Yes | Yes | Yes | No | €306.55 |
