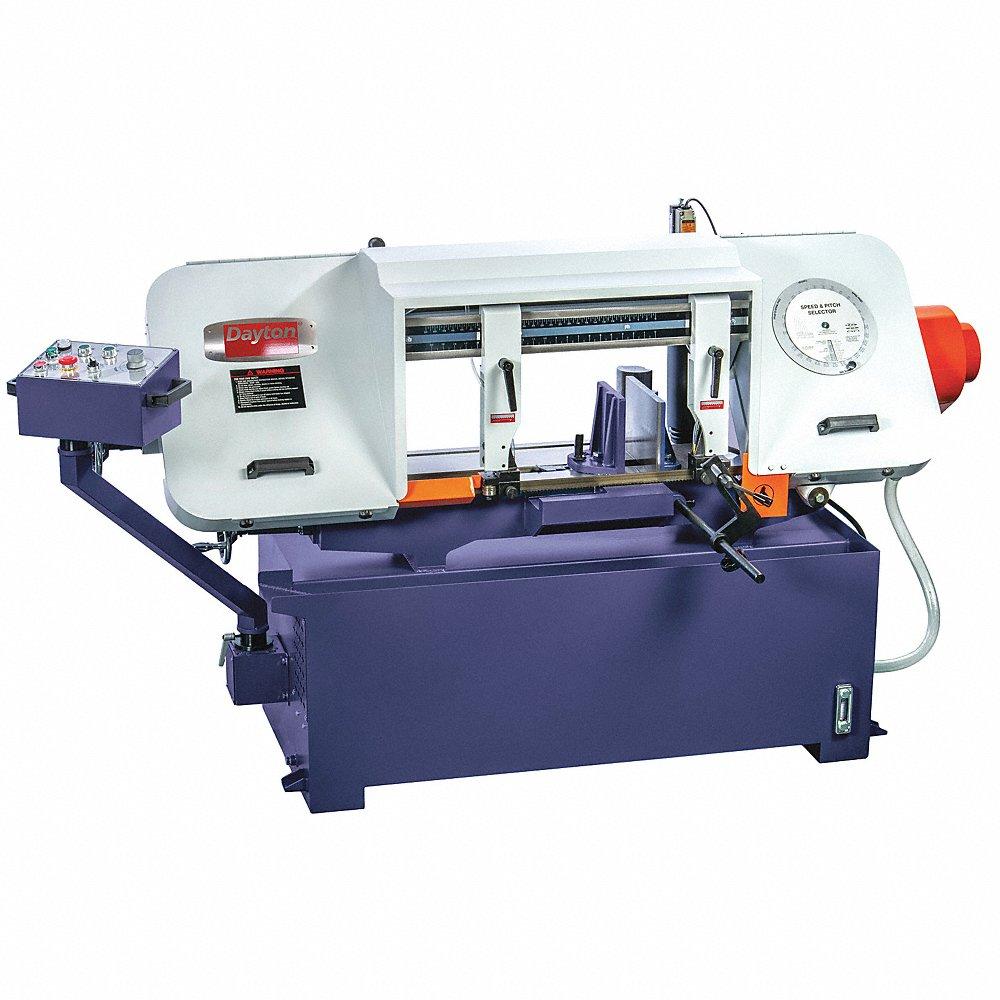

DAYTON 499F36 Band Saw, 12 x 18 1/2 Inch Size, 0 To 45 Deg., 3 Phase
Get it by Wednesday, Dec 24
10.00% off
€20,561.54 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Band Saw |
| Amps Ac | 8.6A |
| Band Saw Operation | Semi-Automatic |
| Band Saw Type | Horizontal |
| Blade Length | 13 ft. |
| Blade Thickness | 0.035" |
| Blade Wheels Dia. | 14" |
| Current | 8.6A |
| Cutting Capacity Square | 12" |
| Features | Heavy Duty Transmission, Hydraulic Down Feed Control, Rapid Action Vise For Miter Cuts, Semi Automatic Cycle, Swing Away Control Panel, Tungsten Carbide And Precision Ball Bearing Blade Guides, Variable Speed Drive |
| Horizontal Rectangular Cutting Capacity | 12" x 18 1/2" |
| Hp | 3 hp |
| Hz | 60 Hz |
| Includes | Cast Iron Adjustable Guide Arms, Blade Speed And Pitch Selector, Coolant System |
| Material Application | Metal |
| Max. Blade Length | 156 1/2" |
| Max. Blade Width | 1" |
| Min. Blade Length | 154 1/2" |
| Min. Blade Width | 1" |
| Miter Angle Range | 0° to 45° |
| Number Of Speed Settings | Continuous |
| Overall Depth | 53" |
| Overall Height | 53 3/16" |
| Overall Width | 87 13/16" |
| Phase | 3 |
| Round Cutting Capacity - Horizontal | 12" |
| Sfpm Range | 85 SFPM to 370 SFPM |
| Voltage | 230V AC |
Shipping Info:
| Ship weight (kg) | 594 |
Product Variants
| Product | Model | Voltage | Material Application | Phase | Sfpm Range | Amps Ac | Blade Length | Max. Blade Length | Max. Blade Width | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
48WE33 | 115/230V AC | Metal | 1 | 75 SFPM to 385 SFPM | 18/9A | 10 ft. | 120 3/4" | 5/8" | €9,272.31 | |
 |
499F32 | - | - | - | - | - | - | - | - | €10,280.76 | |
 |

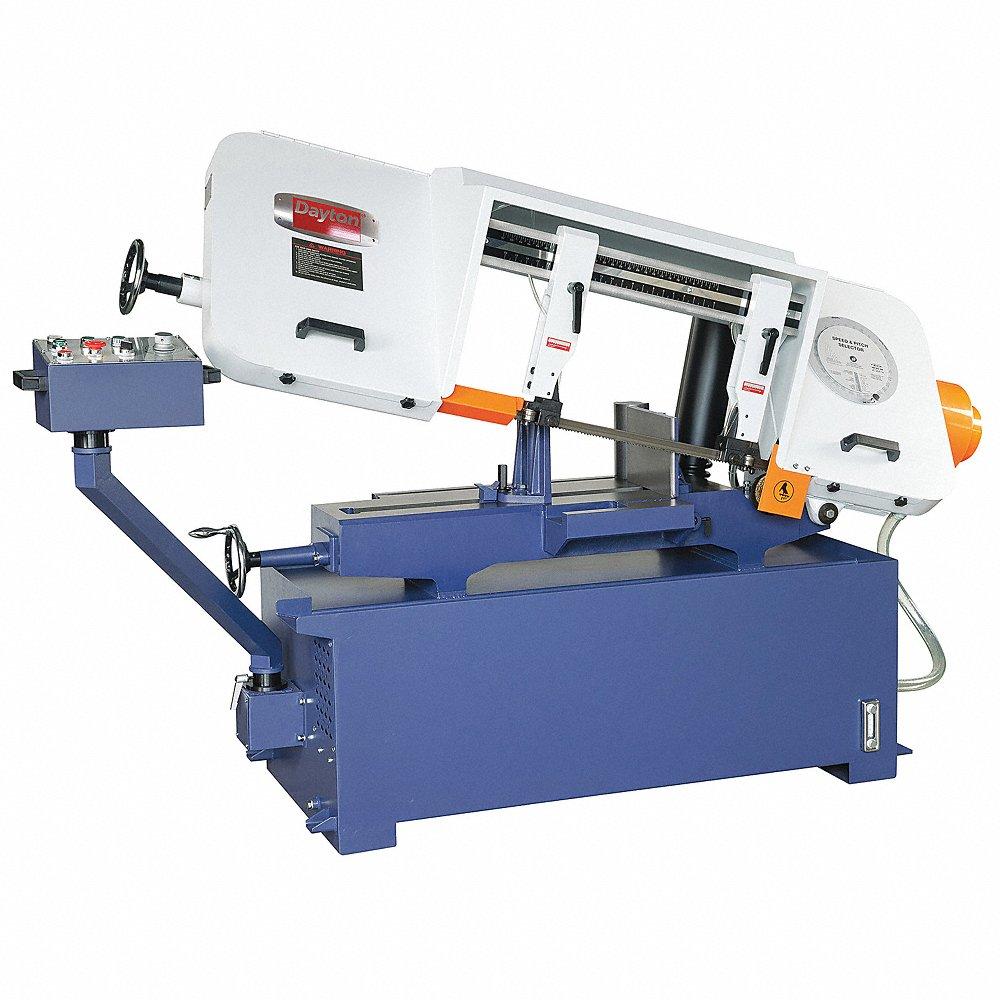

499F37 | 460V AC | Metal | 3 | 85 SFPM to 370 SFPM | 4.3A | 13 ft. | 156 1/2" | 1" | €23,235.41 | |
 |
400H57 | 120V AC | Wood | 1 | 2900 SFPM | 3.4A | 67 3/8" | 67 3/8" | 1/2" | €761.55 | |
|
499F33 | 230V AC | Metal | 3 | 95 SFPM to 350 SFPM | 6.2A | 135" | 135" | 1" | €10,471.15 | |
 |
499F59 | 230V AC | Metal | 1 | 105 SFPM to 216 SFPM | 7A | 96" | 96 1/2" | 1" | €5,235.58 | |
 |
400H58 | 120V AC | Wood | 1 | 144 SFPM to 150 SFPM | 9.5A | 100 3/4" | 100 3/4" | 3/4" | €1,903.85 |
