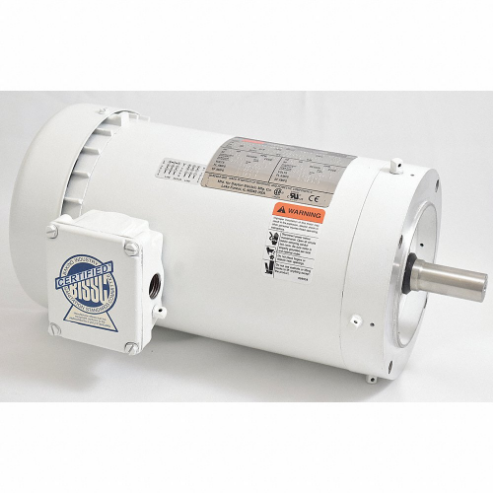

DAYTON 48ZJ96 Washdown Motor, 2 HP, 3-Phase, 1750 Nameplate RPM, 230/460 Voltage
Get it by Tuesday, Dec 23
10.00% off
€1,464.23 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Washdown Motor |
| Ambient Temp. | 104°F |
| Application | Washdown |
| Bearing Type | Ball |
| Bearings | Ball |
| Body Dia. | 6.63" |
| Cc Number | CC030A |
| Color | White |
| Conduit Box | Oversize Cast Aluminum With Nitrile Gasket |
| Conduit Box Position | F1 |
| Drain Plug | (2) Drain Plugs In Conduit Box, (4) Drain Plugs In Each End Bells |
| Duty | Continuous |
| Duty Cycle | Continuous |
| Efficiency Group | Premium |
| Endshield Material | Cast Aluminum |
| Endshields | Cast Aluminium |
| Endshields | Aluminum |
| Finish | Epoxy Coated |
| Frame | 145TC |
| Frame Material | Steel |
| Frequency | 50/60 Hz |
| Full Load Amps | 6/2.8A |
| Hp | 2 hp |
| Includes | Shaft Key |
| Inverter Rated | No |
| Length Less Shaft | 11" |
| Max. Ambient Temp. | 40°C |
| Motor Application | Washdown |
| Motor Bearings | Ball |
| Motor Design | 3-Phase |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Frame Material | Rolled Steel |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Face |
| Motor Service Factor | 1.15 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | Clockwise, Counter Clockwise |
| Motor Shaft Rotation | Clockwise/Counter Clockwise |
| Motor Type | Three Phase |
| Mounting Type | Face |
| Nameplate Rpm | 1750 RPM |
| Nema Design | B |
| Nominal Efficiency | 85.5% |
| Number | Cc030A |
| Overall Length | 13 1/4" |
| Phase | 3 |
| Product Type | Washdown Motor |
| Service Factor | 1.15 |
| Shaft Dia. | 7/8" |
| Shaft Length | 2 1/4" |
| Shaft Material | Stainless Steel |
| Thermal Protection | None |
| Voltage | 230/460V AC |
Shipping Info:
| Ship weight (kg) | 20.93 |
| Ship height (cm) | 10.16 |
| Ship length (cm) | 33.66 |
| Ship width (cm) | 10.16 |
| Country of Origin | MX |
Product Variants
| Model | Voltage | Hp | Full Load Amps | Nameplate Rpm | Frame | Finish | Phase | Motor Mounting Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 11G244 | 115/208-230V AC | 3/4 hp | 7.6/3.8-4A | 1745 RPM | - | - | 1 | Face | €1,067.68 | |
| 11G245 | 115/208-230V AC | 1 hp | 11.2/5.6-5.8A | 1745 RPM | 56C | Unfinished | 1 | Face | €1,117.31 | |
| 11G246 | 115/208-230V AC | 1 1/2 hp | 14.8/7.4-7.6A | 1745 RPM | 56C | - | 1 | Face | €1,202.25 | |
| 11G247 | 208-230V AC | 2 hp | 7.4-8.9A | 3450 RPM | 56C | Unfinished | 1 | Face | €1,309.67 | |
| 11G248 | 208-230V AC | 2 hp | 8.5-9.9A | 1745 RPM | 56C | Unfinished | 1 | - | €1,368.89 | |
| 11G252 | 115/208-230V AC | 1/2 hp | 5/2.5-2.6A | 1745 RPM | 56HC | Unfinished | 1 | - | €1,060.55 | |
| 11G253 | 115/208-230V AC | 3/4 hp | 7.6/3.8-4A | 1745 RPM | 56HC | Unfinished | 1 | Face, Base | €1,115.67 |
