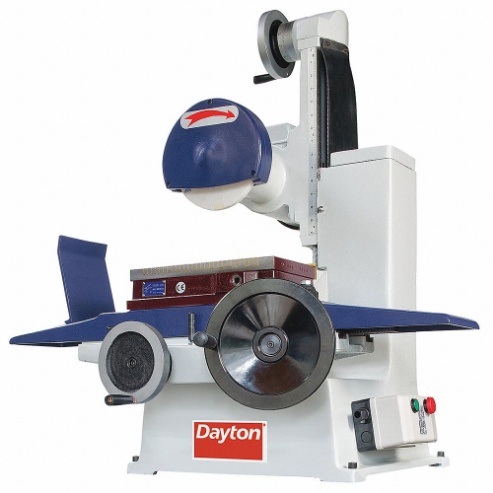

DAYTON 48WE34 Surface Grinder, Manual, 6 x 12 Inch Table, 1 Phase, 6 3/4 Inch Max. Grinding Width
Get it by Tuesday, Aug 25
5.00% off
€10,073.60 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Grinder |
| Coolant Fed | Non Coolant Fed |
| Cross Handwheel Feed Per Revolution | 0.1" |
| Crossfeed Handwheel Graduation | 0.0001" |
| Features | Hand Scraped Ways, Meehanite Cast Iron Construction, Precision Steel Balls, Spindle And Motor Dynamically Balanced, Spiral Bevel Gear For Easy Spindle Head Vertical Movement, Swarf Guard |
| Frequency | 60 Hz |
| Hp | 3/4 hp |
| Included | Grinding Wheel |
| Magnetic Chuck Length | 12" |
| Magnetic Chuck Width | 6" |
| Max. Cross Travel | 6 3/4" |
| Max. Grinding Length | 12 5/8" |
| Max. Grinding Width | 6 3/4" |
| Max. Longitudinal Travel | 12 5/8" |
| Motor Type | Hydraulic Spindle |
| Operation Type | Manual |
| Overall Height | 35" |
| Overall Length | 24" |
| Overall Width | 35" |
| Phase | 1 |
| Spindle Center To Table Distance | 11" |
| Spindle Speed | 3600 RPM |
| Table Length | 12" |
| Table Width | 6" |
| Vertical Handwheel Graduation | 0.0005" |
| Voltage | 115V |
| Wheel Arbor Hole Size | 1 1/4" |
| Wheel Dia. | 7" |
| Wheel Thickness | 1/2" |
Shipping Info:
| Ship weight (kg) | 247.95 |
| Ship height (cm) | 88.9 |
| Ship length (cm) | 60.96 |
| Ship width (cm) | 88.9 |
| Country of Origin | US |
