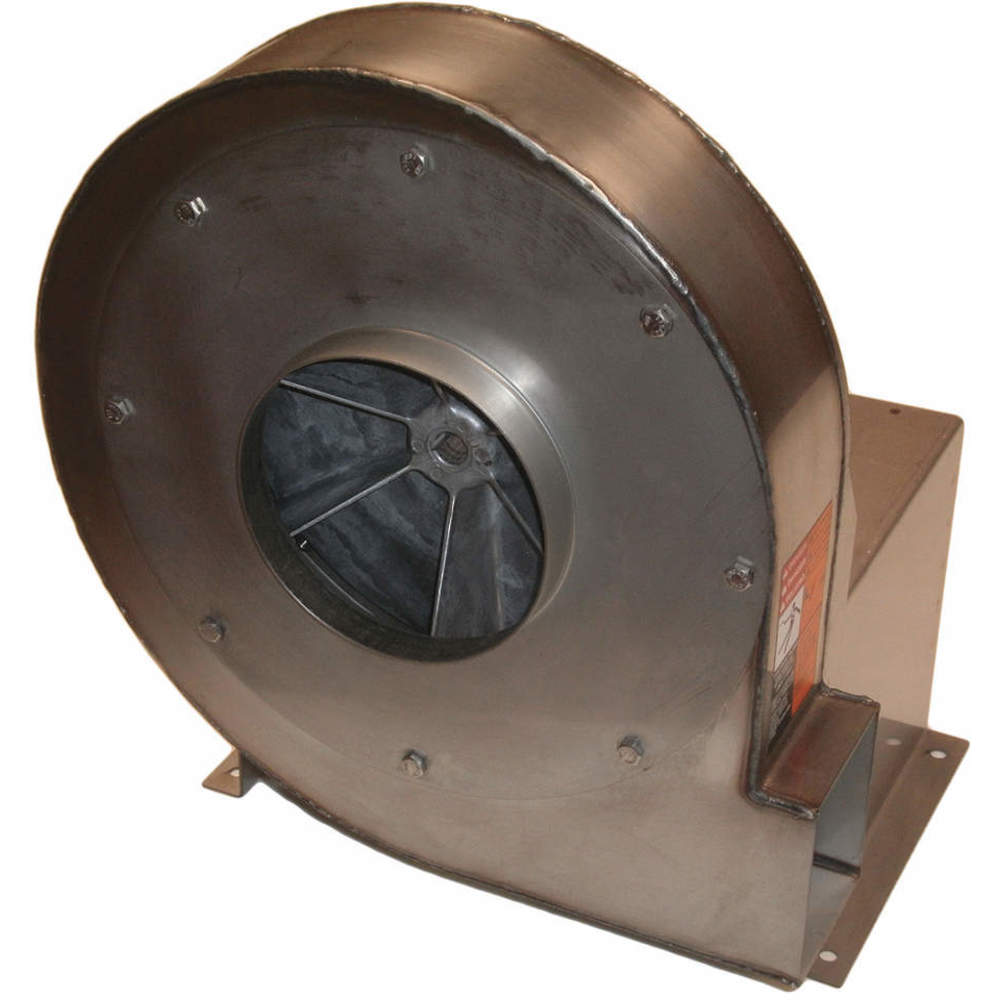

DAYTON 45J503 Blower 13-1/2 Inch Wheel Stainless Steel
Get it by Monday, Feb 16
10.00% off
€3.35 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Blower |
| Assembly | Unassembled |
| Bearing Type | Ball |
| Blower Rpm | 3450 RPM |
| Dba @ 5 Feet | 92 dBA |
| Depth | 22" |
| Discharge Height | 7 1/8" |
| Discharge Height (in.) | 7.125" |
| Discharge Position | Bottom Horizontal |
| Discharge Width | 5 3/4" |
| Discharge Width (in.) | 5.75" |
| Drive Type | Direct Drive |
| Features | Die Cast Wheels Rotate Clockwise And Are Precision Balanced For Top Performance, Paddle Type, Powerful Blower Supplies High Pressure Air For Efficient Cooling And Conveying, Self Cleaning |
| For Air Type | Dusty |
| For Ventilation Type | Exhaust |
| Height | 32" |
| Housing Color | Natural |
| Housing Material | Stainless Steel |
| Housing Material Finish | Natural |
| Includes Motor | No |
| Inlet Dia. | 8" |
| Inlet Diameter | 8" |
| Material | Stainless Steel |
| Max. Ambient Temp. | 104°F |
| Max. Inlet Temp. | 180°F |
| Max. Motor Hp | 7 1/2 hp |
| Maximum Airflow | 1832 CFM |
| Maximum Fan Speed | 3450 RPM |
| Maximum Static Pressure | 8 in. wc |
| Min. Motor Hp | 5 hp |
| Minimum Airflow | 1319 CFM |
| Motor Hp | 5 hp to 7 1/2 hp |
| No. Of Inlets | 1 |
| Number Of Discharge Positions | 8 |
| Outlet Dia. | Not Applicable |
| Outlet Height | 7 1/8" |
| Outlet Shape | Rectangular |
| Outlet Width | 5 3/4" |
| Overall Depth | 22" |
| Overall Height | 32" |
| Overall Width | 17 5/8" |
| Rotation | CW |
| Sound Level | 92 dBA |
| Type | Less Motor |
| Wheel Dia. | 13 1/2" |
| Wheel Material | Aluminum |
| Wheel Type | Radial |
| Wheel Width | 13 1/2" |
| Width | 17 5/8" |
Shipping Info:
| Ship weight (kg) | 28.35 |
| Ship height (cm) | 81.28 |
| Ship length (cm) | 55.88 |
| Ship width (cm) | 44.77 |
| HS code | 8414901040 |
| Country of Origin | US |
Product Variants
| Product | Model | Rotation | Wheel Material | Housing Material | Outlet Height | Phase | Max. Inlet Temp. | Inlet Dia. | Motor Hp | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
2C820 | CW/CCW | Aluminum | Steel | 3 1/2" | - | 180°F | 5" | - | €283.97 | |
 |
2C862 | CW/CCW | Aluminum | Steel | 8 1/4" | - | 180°F | 8" | - | €406.29 | |
|
2C863 | CW | Aluminum | Steel | 10 3/4" | - | 180°F | 9" | - | €388.48 | |
|
2C864 | CW | Aluminum | Steel | 11 3/4" | - | 180°F | 10" | - | €604.80 | |
 |
3AXF2 | CW | Steel | Steel | 17" | - | 250°F | 17 1/4" | 20 hp to 30 hp | €10,471.32 | |
|
3AXF3 | CW | Steel | Steel | 19" | - | 250°F | 19 1/4" | 25 hp to 40 hp | €8,912.71 | |
|
3AXF4 | CW | Steel | Steel | - | - | 250°F | - | 25 hp to 40 hp | €13.61 |
