DAYTON 45C671 Intake Louver 60 x 60
Get it by Wednesday, Jul 1
5.00% off
€1,406.22 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Intake Louver |
| Blade Angle | 45° |
| Blade Type | Drainable |
| Finish | Mill |
| Flange Width | 1 1/4" , Not Applicable |
| Frame Depth | 4" |
| Frame Height | 59 1/2" |
| Frame Type | Hat Channel |
| Frame Width | 59 1/2" |
| Free Area | 13.3 sq. ft. |
| Included | Bird Screen |
| Inside Height | 54" |
| Inside Width | 57 3/4" |
| Intake Louver Inside Width | 57" |
| Intake Louver Outside Height | 59 1/2" |
| Intake Or Exhaust Application | Exhaust, Intake |
| Louver Item | Stationary Intake Louver |
| Louver Material | Extruded Aluminum |
| Louver Type | Stationary Blade |
| Material | Aluminum |
| Max. Air Velocity | 3000 FPM |
| Max. Exhaust | 10688 CFM |
| Max. Exhaust (cfm) | 10688 |
| Max. Frame Width | 59 1/2" |
| Max. Intake | 8187 CFM |
| Max. Intake (cfm) | 8187 |
| Max. Outside Width | 59 1/2" |
| Max. Velocity | 3000 FPM |
| Min. Frame Width | 59 1/2" |
| Min. Outside Width | 59 1/2" |
| Min. Wall Opening (in.) | 60H x 60W |
| Mounting Style | Recess Mount |
| No. Of Blades | 12 |
| Outside Height | 59 1/2" |
| Outside Width | 59 1/2" |
| Point Of Water Penetration | 1031 FPM |
| Rough Opening Height | 60" |
| Rough Opening Width | 60" |
| Type | Fixed |
| Wall Opening Size | 60" x 60" |
Shipping Info:
| Ship weight (kg) | 33.75 |
| Ship height (cm) | 15.24 |
| Ship length (cm) | 154.94 |
| Ship width (cm) | 154.94 |
| HS code | 7610900080 |
| Country of Origin | US |
Product Details:
- Blade Angle (Deg.) (45)
Product Variants
| Model | Material | Rough Opening Height | Rough Opening Width | Free Area | Max. Air Velocity | Max. Intake | Max. Exhaust | Flange Width | Price | |
|---|---|---|---|---|---|---|---|---|---|---|

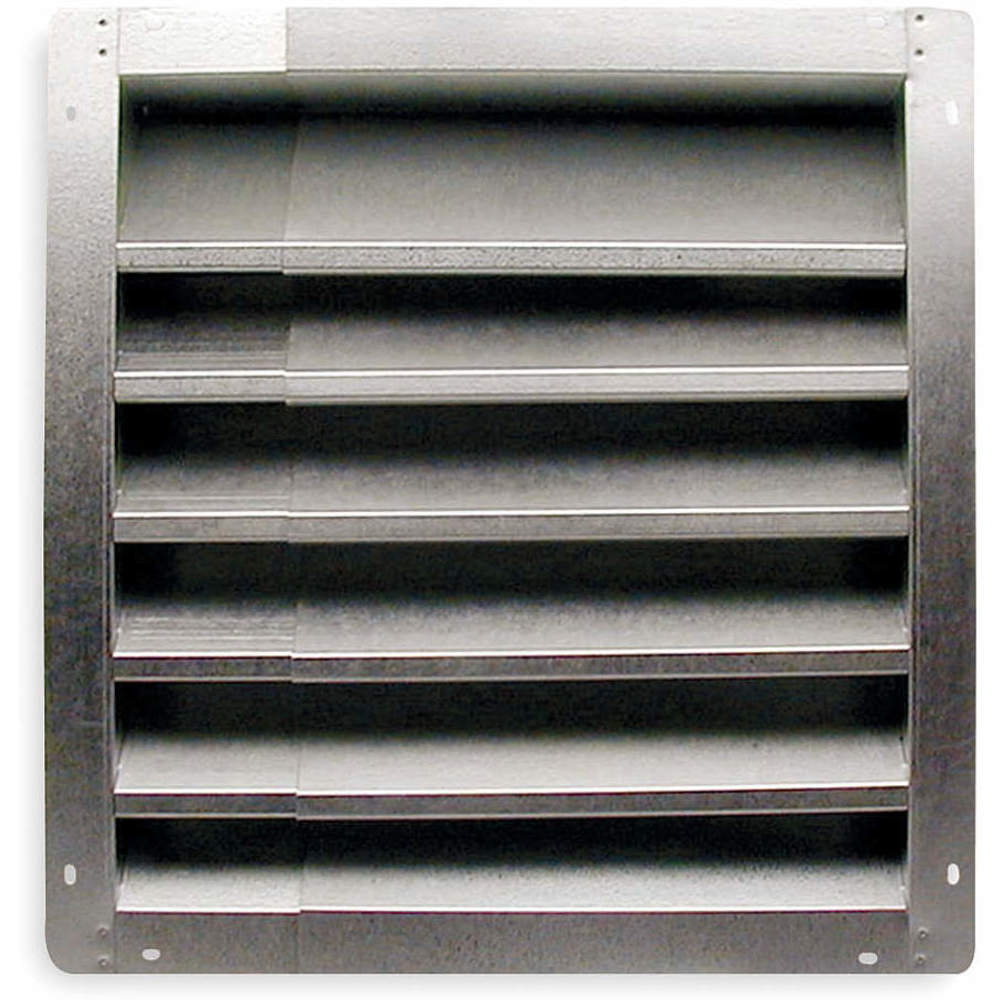

| 3C972 | Galvanized Steel | 18" | 18" | 1 sq. ft. | 3000 FPM | 1050 CFM | 1500 CFM | 2" | €213.53 | |
| 3C973 | Galvanized Steel | 24" | 18" | 2 sq. ft. | 3000 FPM | 1750 CFM | 2500 CFM | 2" | €261.29 | |
| 3C974 | Galvanized Steel | 36" | 24" | 3.6 sq. ft. | 3000 FPM | 3150 CFM | 4500 CFM | 2" | €429.19 | |
| 3C975 | Galvanized Steel | 36" | 36" | 4.8 sq. ft. | 3000 FPM | 4200 CFM | 6000 CFM | 2" | €551.34 | |
| 3C976 | Galvanized Steel | 48" | 24" | 4.9 sq. ft. | 3000 FPM | 5200 CFM | 6000 CFM | 2" | €623.58 | |
| 3C977 | Galvanized Steel | 48" | 36" | 6.6 sq. ft. | 3000 FPM | 5600 CFM | 8000 CFM | 2" | €736.67 | |
| 45C669 | Aluminum | 12" | 12" | 0.4 sq. ft. | 3000 FPM | 144 CFM | 188 CFM | 1 1/4" | €329.33 |
