DAYTON 45C663 Exhaust Shutter For 60 Inch Fans
Get it by Wednesday, Dec 24
10.00% off
€993.90 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Backdraft Damper/Wall Shutter |
| Acma Leakage Class | Not Applicable |
| Action | Single Acting |
| Air Flow Direction | Horizontal |
| Blade Material | Aluminum |
| Blade Orientation | Parallel Blades |
| Blade Seal Material | Felt |
| Blade Type | Flat Blade |
| Closure Type | Gravity |
| Closure Velocity Rating | 3000 FPM |
| Connection Type | Not Applicable |
| Counterbalanced | No |
| Damper Application | Backdraft |
| Damper Finish | Mill Finish |
| Damper Type | Static |
| Fits Fan Dia. | 60" |
| Fits Fan Dia. (in.) | 60 |
| Flange Type | Rear Flange |
| Flange Width | 1 1/2" |
| For Duct Shape | Not Applicable |
| For Fuel Type | Not Applicable |
| For Nominal Duct Dia. | Not Applicable |
| For Use With | Vertical Mounted Exhaust Fans |
| Frame Depth | 3" |
| Frame Less Flange | 60 |
| Frame Material | Aluminum |
| Frame Material Thickness | 4/5" |
| Frame Opening A | 60" |
| Frame Opening B | 60" |
| Free Area | 20.4 sq. ft. |
| Fusible Link Temp. | Not Applicable |
| Includes | Extruded Aluminum Louvers |
| Length | 63" |
| Material | Aluminum |
| Max. Velocity | 3000 FPM |
| Maximum Air Velocity | 3000 FPM |
| Maximum Ambient Temperature | 180°F |
| Maximum Pressure | 1 in. wc |
| Mounting Hole Size | 0.281" |
| Mounting Location | Wall |
| Mounting Position | Vertical |
| Number Of Panels | 2 |
| Open Depth | 6 1/4" |
| Open Depth (in.) | 6-1/4 |
| Opening Required | 63 1/2" x 63 1/2" |
| Overall Dia. | 63" |
| Overall Height | 63" |
| Overall Length | 6 1/4" |
| Overall Square | 63" |
| Overall Square (in.) | 63 |
| Overall Width | 63" |
| Pressure Drop @ 1000 Fpm | Not Applicable |
| Rough Opening Diameter | 60 1/2" |
| Rough Opening Length | 60 1/2" |
| Rough Opening Shape | Square |
| Rough Opening Width | 60 1/2" |
| Seal Material | Not Applicable |
| Shutter Mounting Location | Wall |
| Shutter Mounting Position | Vertical |
| Shutter Opening Required | 60 1/2" x 60 1/2" |
| Shutter Overall Size | 63" x 63" |
| Single Acting/double Acting | Single Acting |
| Switch Action | NC |
| Tie-rod Material | Extruded Aluminum Frame And Stainless Steel Tie Rods |
| Type | Gravity Operated |
| Width | 63" |
Shipping Info:
| Ship weight (kg) | 21.6 |
| Ship height (cm) | 160.02 |
| Ship length (cm) | 15.88 |
| Ship width (cm) | 160.02 |
| HS code | 7610900080 |
| Country of Origin | US |
Product Variants
| Product | Model | Type | Blade Material | Frame Material | Frame Depth | Max. Velocity | Number Of Panels | Mounting Hole Size | Fits Fan Dia. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
2FTW1 | Double Panel Gravity Operated | Aluminum | Aluminum | 3" | 2500 FPM | 2 | 9/32" x 1/2" | 42" | €381.05 | |
 |
2FTW6 | Gravity Operated Single Panel | Aluminum | Aluminum | 3" | 2500 FPM | 1 | 9/32" x 1/2" | 24" | €160.85 | |
|
2FTW7 | Gravity Operated Single Panel | Aluminum | Aluminum | 3" | 2500 FPM | 1 | 9/32" x 1/2" | 36" | €258.55 | |
|
2FTX1 | Gravity Operated Single Panel | Aluminum | Aluminum | 3" | 2500 FPM | 1 | 9/32" x 1/2" | 30" | €194.49 | |
|
2FTX3 | Double Panel Gravity Operated | Aluminum | Aluminum | 3" | 2500 FPM | 2 | 9/32" x 1/2" | 48" | €438.45 | |
 |

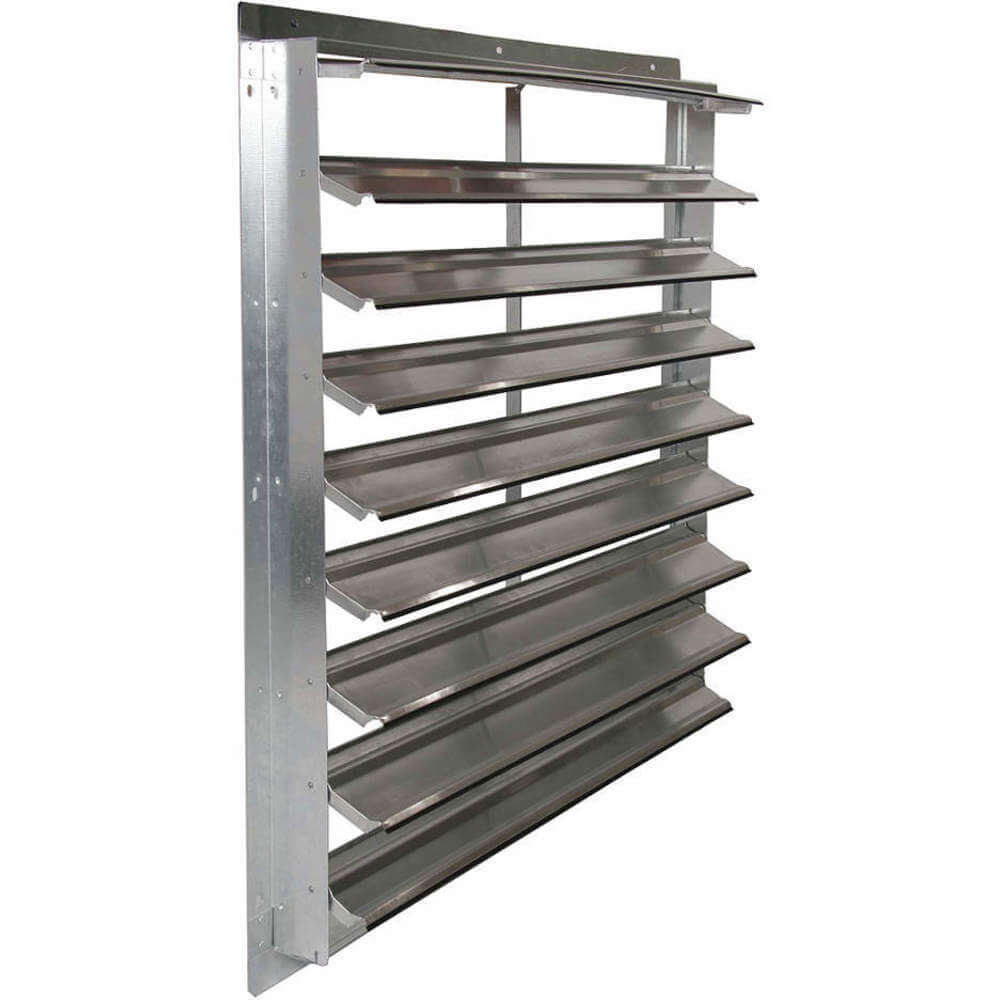

2FTX7 | Gravity Operated Single Panel | Aluminum | Galvanized Steel | 2 1/2" | 2500 FPM | 1 | 9/32" x 1/2" | 36" | €251.06 | |
 |
2FTX8 | Double Panel Gravity Operated | Aluminum | Galvanized Steel | 2 1/2" | 2500 FPM | 2 | 9/32" x 1/2" | 48" | €382.40 |
