DAYTON 44YU09 Exhaust Fan Slantwall 36 Inch Belt Drive
Get it by Wednesday, Dec 24
10.00% off
€2,463.27 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Agricultural Exhaust Fan |
| Agency Compliance | UL.png |
| Assembled | Assembled |
| Blade Dia. | 36" |
| Blade Material | Steel |
| Cfm @ 0.050-in. Sp | 10,790 |
| Cfm @ 0.150-in. Sp | 9480 |
| Cfm/watt @ 0.000-in. Sp | 19.4 CFM/W |
| Cfm/watt @ 0.000-in. Sp | 19.4 |
| Cfm/watt @ 0.050-in. Sp | 17.6 CFM/W |
| Cfm/watt @ 0.050-in. Sp | 17.6 |
| Cfm/watt @ 0.100-in. Sp | 15.9 CFM/W |
| Cfm/watt @ 0.100-in. Sp | 15.9 |
| Cfm/watt @ 0.150-in. Sp | 14.2 CFM/W |
| Cfm/watt @ 0.150-in. Sp | 14.2 |
| Dimension A | 44" |
| Dimension Aa | 39 1/2" |
| Dimension Bb | 40 1/8" |
| Dimension D | 16 3/4" |
| Dimension E | 4 1/2" |
| Dimension F | 45 3/4" |
| Drive Type | Belt Drive |
| Electrical Connection | Hardwired |
| Fan Style | Slant Wall |
| Flange Width | 2" |
| For Cut-out Height | 43" |
| For Cut-out Width | 40 7/8" |
| For Maximum Wall Thickness | 8" |
| For Minimum Wall Thickness | 6" |
| Frame Finish | Galvanized |
| Frame Material | Steel |
| Full Load Amps | 6.4/3.2A |
| Guard Finish | Zinc Plated |
| Guard Material | Steel |
| Guard Type | Exhaust |
| Height | 40 3/4" |
| Housing Finish | Galvanized |
| Housing Material | Steel |
| Hp | 3/4 hp |
| Includes | Mesh Screen |
| Includes Dehumidistat | No |
| Includes Motor | Yes |
| Max. Ambient Temp. | 104°F |
| Max. Depth | 27" |
| Max. Exhaust Airflow @ 0.100 In Sp | 10170 CFM |
| Maximum Exhaust Airflow @ 0.000 In Sp | 11420 CFM |
| Maximum Noise Level | 24.2 sones |
| Mesh Size | 1" x 2" |
| Motor Enclosure Design | Totally Enclosed Air Over |
| Motor Horsepower | 3/4 hp |
| Motor Insulation | Class B |
| Motor Speed | 1725 RPM |
| Mounting Orientation | Vertical |
| Nameplate Voltage | 115/230V AC |
| No. Of Fans | 1 |
| Noise Level @ 0.000 In Sp @ 5 Ft | 24.2 sones |
| Noise Level @ 0.100 In Sp @ 5 Ft | 23.1 sones |
| Number Of Blades | 4 |
| Number Of Speeds | 1 |
| Opening Required H (in.) | 42-7/8 |
| Opening Required W (in.) | 40-7/8 |
| Overall Depth | 27" |
| Overall Height | 40 3/4" |
| Overall Width | 40 1/8" |
| Phase | 1 |
| Shaft Dia. | 7/8" |
| Shaft Diameter | 7/8" |
| Speed Controllable | No |
| Type | Belt Drive, Slant Wall |
| Ventilation Type | Exhaust |
| Venturi Clearance Dia. | 5/16" |
| Venturi Depth | 4" |
| Voltage | 115/230V |
| Wattage | 660 W |
| Width | 40 7/64" |
Shipping Info:
| Ship weight (kg) | 88.65 |
| Ship height (cm) | 103.51 |
| Ship length (cm) | 68.58 |
| Ship width (cm) | 101.92 |
| Country of Origin | US |
Product Variants
| Product | Model | Drive Type | Blade Dia. | Phase | Voltage | Hp | Motor Speed | Assembled | Frame Finish | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
44YU07 | Direct Drive | 36" | - | 115/230V | 1/2 hp | 825 RPM | Assembled | Galvanized | €2,952.53 | |
 |
44YU08 | Direct Drive | 48" | 1 | 115/230V | 1 hp | - | Assembled | Galvanized | €1,344.07 | |
 |
44YU10 | Belt Drive | 36" | - | - | 3/4 hp | - | Unassembled | ZincPlated | €720.48 | |
 |

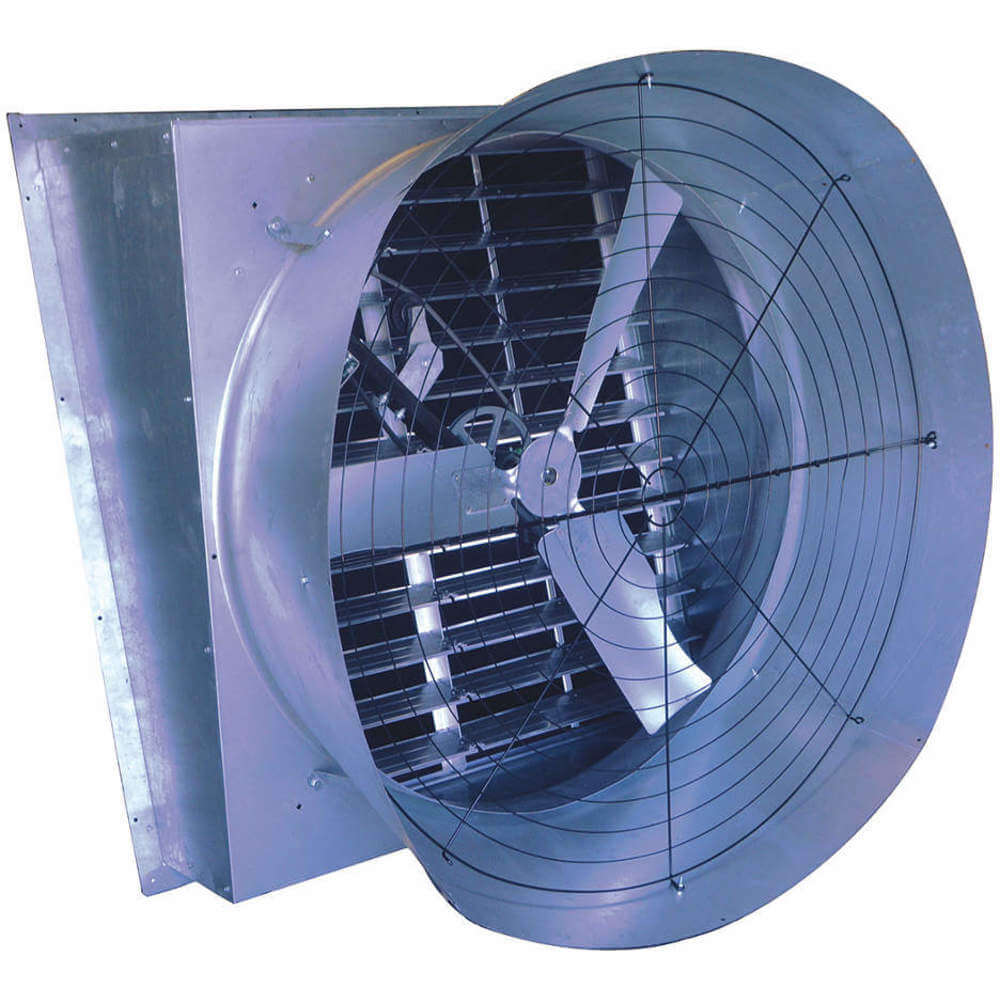

44YU12 | Direct Drive | 48" | 1 | 115/230V | - | - | Assembled | Galvanized | €2,022.29 | |
 |
44YU13 | Direct Drive | 24" | 1 | 115/230V | 1/2 hp | - | Assembled | Galvanized | €1,099.43 | |
 |

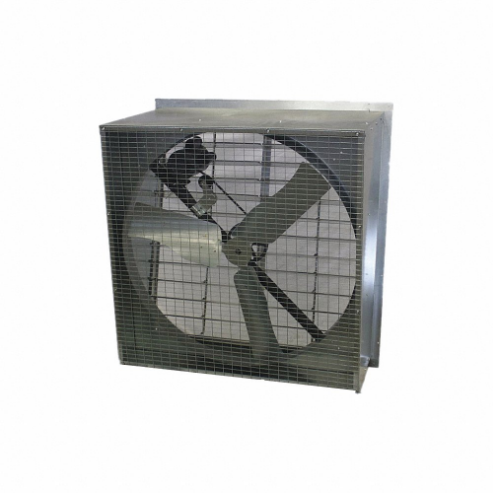

44YU14 | Belt Drive | 48" | 1 | 115/230V | - | - | Assembled | - | €2,163.45 | |
|
44YU15 | Direct Drive | 48" | 3 | 230/460V | 1 hp | - | Assembled | Galvanized | €1,321.74 |
