DAYTON 44YU08 Exhaust Fan 48 Inch 230V | AH9UYN

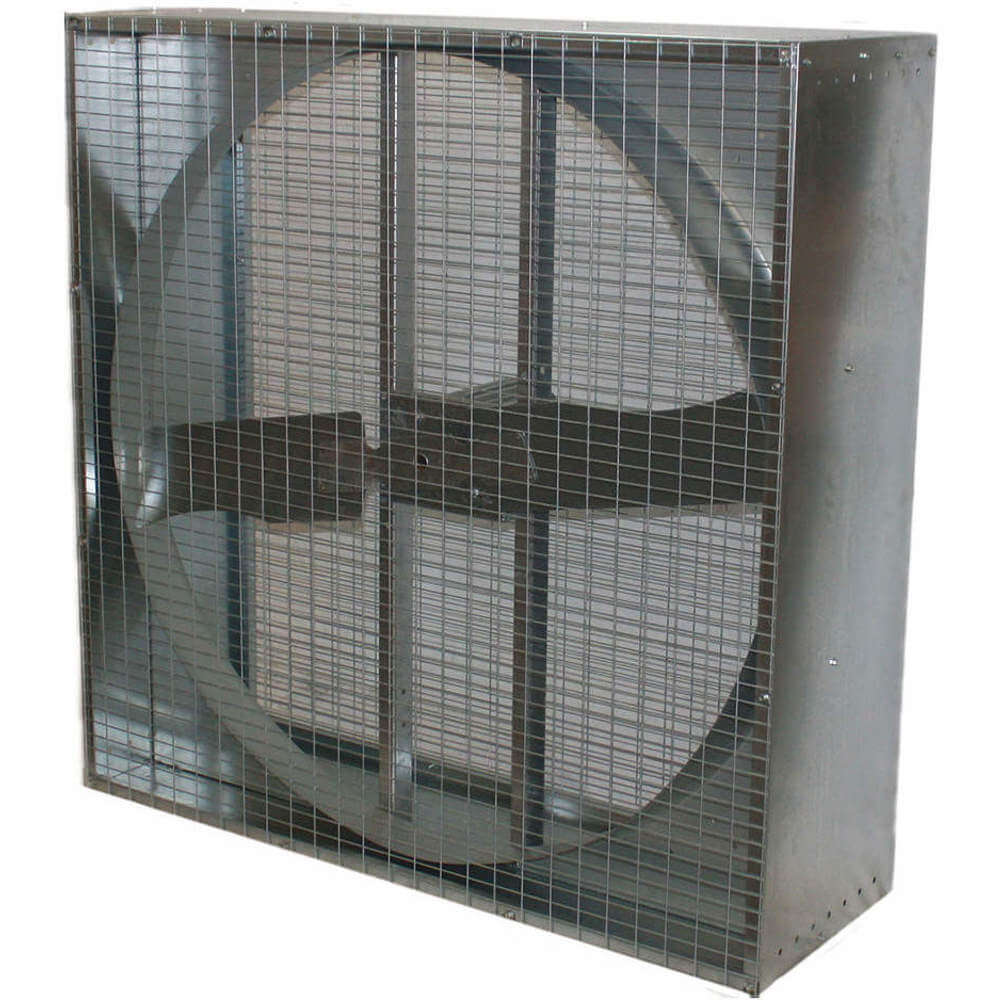

DAYTON 44YU08 Exhaust Fan 48 Inch 230V

Item: AH9UYNModel: 44YU08
Check Availability
In Stock

Get it by Tuesday, Jun 30

€1,353.57
5.00% off
€1,285.89 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

Item Agricultural Exhaust Fan
Assembled Assembled
Bearing Type Permanently Lubricated Sealed Ball
Blade Dia. 48"
Blade Material Steel
Cfm @ 0.000 In Sp 18926 CFM
Cfm @ 0.050 In Sp 17481 CFM
Cfm @ 0.050-in. Sp 17481
Cfm @ 0.100 In Sp 15973 CFM
Cfm @ 0.150 In Sp 14256 CFM
Cfm @ 0.150-in. Sp 14256
Cfm/watt @ 0.000 In Sp 19.9 CFM/W
Cfm/watt @ 0.000-in. Sp 19.9
Cfm/watt @ 0.050 In Sp 17.8 CFM/W
Cfm/watt @ 0.050-in. Sp 17.8
Cfm/watt @ 0.100 In Sp 15.8 CFM/W
Cfm/watt @ 0.100-in. Sp 15.8
Cfm/watt @ 0.150 In Sp 13.7 CFM/W
Cfm/watt @ 0.150-in. Sp 13.7
Dimensions A 52 1/8"
Dimensions B 17"
Dimensions D 3/8"
Drive Type Direct Drive
Electrical Connection Hardwired
Fan Style Box
For Cut-out Height 53"
For Cut-out Width 52 7/8"
For Max. Wall Thickness 8"
For Min. Wall Thickness 6"
Frame Finish Galvanized
Frame Material Steel
Full Load Amps 11/5.5A , 11A
Guard Finish Zinc Plated
Guard Material Steel
Guard Type Exhaust
Height 52 1/8"
Housing Finish Galvanized
Housing Material Steel
Hp 1 hp
Included Mesh Screen
Included Dehumidistat No
Included Motor Yes
Max. Ambient Temp. 104°F
Max. Depth 17"
Max. Exhaust Airflow @ 0.000 In Sp 18926 CFM
Max. Noise Level 37 sones
Max. Noise Level @ 0.000 In Sp @ 5 Ft. 37 sones
Mesh Size 1" x 2"
Motor Enclosure Design Totally Enclosed Air Over
Motor Hp 1 hp
Motor Insulation Class B
Motor Speed 850 RPM
Motor Type Permanent Split Capacitor
Mounting Location Vertical
Mounting Orientation Vertical
Nameplate Voltage 115/230V AC
No. Of Blades 2
No. Of Fans 1
No. Of Speed 1
Noise Level @ 0.000 In Sp @ 5 Ft 37 sones
Noise Level @ 0.100 In Sp @ 5 Ft. 35 sones
Opening Required H 52 7/8"
Opening Required H (in.) 52-7/8
Opening Required W 52 7/8"
Opening Required W (in.) 52-7/8
Overall Depth 17"
Overall Height 52 1/8"
Overall Width 52 1/8"
Phase 1
Shaft Dia. 1"
Speed Controllable No
Type Assembled Direct Drive
Ventilation Type Exhaust
Venturi Clearance Dia. 5/16"
Venturi Depth 4 1/2"
Voltage 115/230V
Width 52 1/8"

Shipping Info:

Ship weight (kg) 75.6
Ship height (cm)132.4
Ship length (cm)43.18
Ship width (cm)132.4
Country of OriginUS

Product Variants

ProductModelDrive TypeBlade Dia.Motor SpeedPhaseHpVoltageMounting LocationFrame FinishPrice

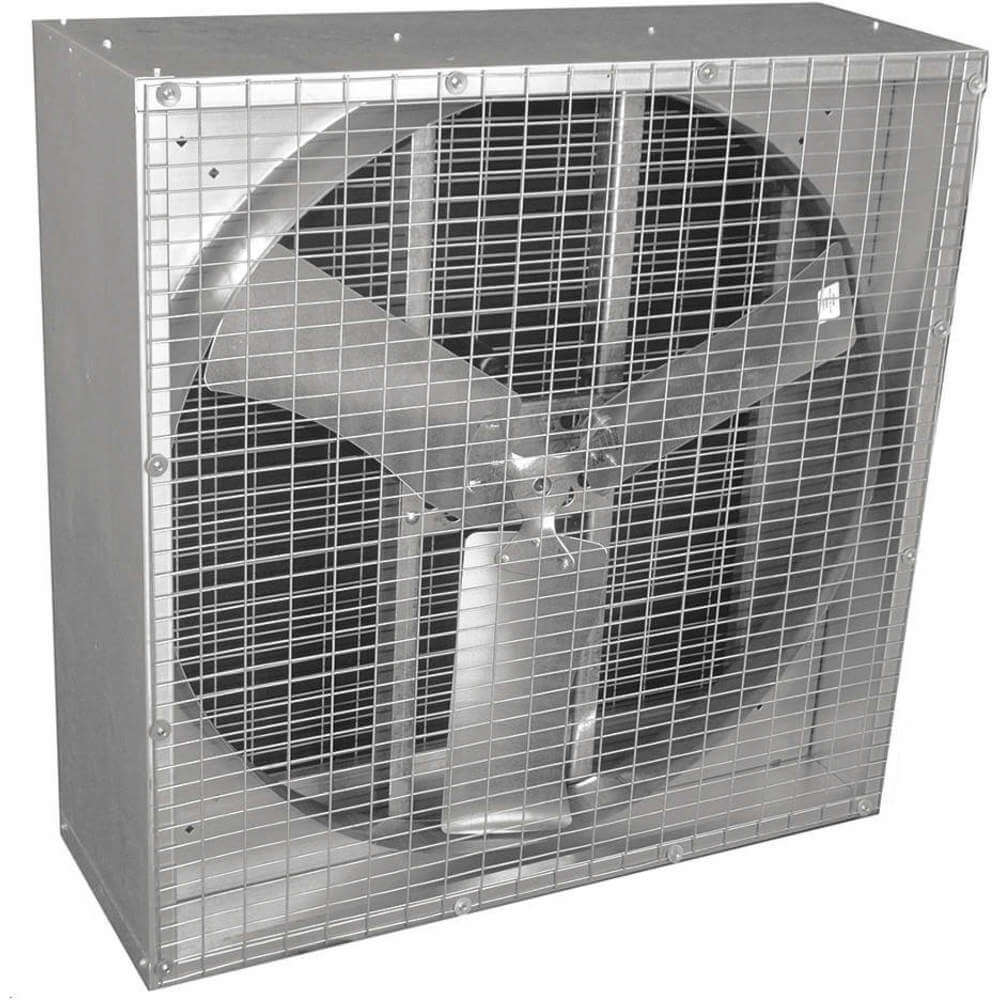

DAYTON 44YU07 Exhaust Fan 36 Inch Direct Drive | AH9UYM 44YU07Direct Drive36"825 RPM-1/2 hp115/230VVerticalGalvanized€2,778.85

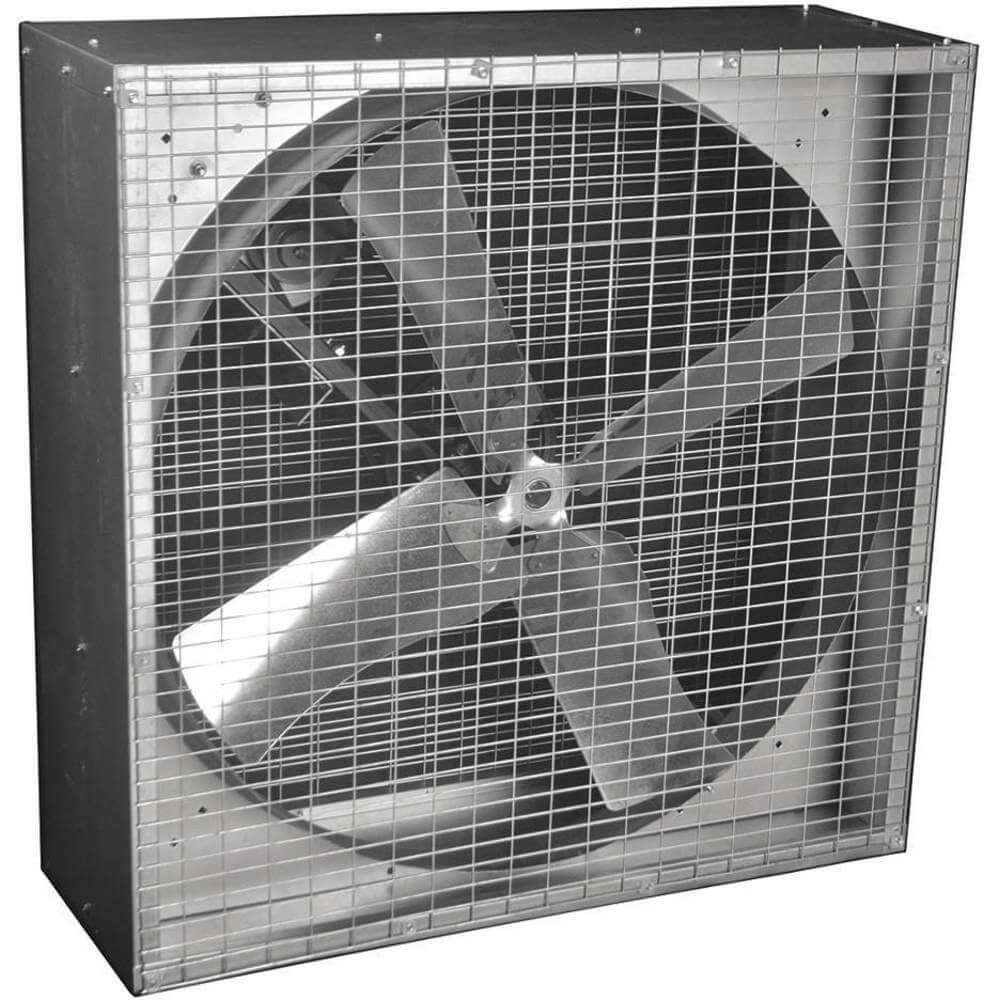

DAYTON 44YU10 Exhaust Fan 36 Inch Belt Drive Less Motor | AH9UYQ 44YU10Belt Drive36"1725 RPM-3/4 hp-VerticalZincPlated€678.10

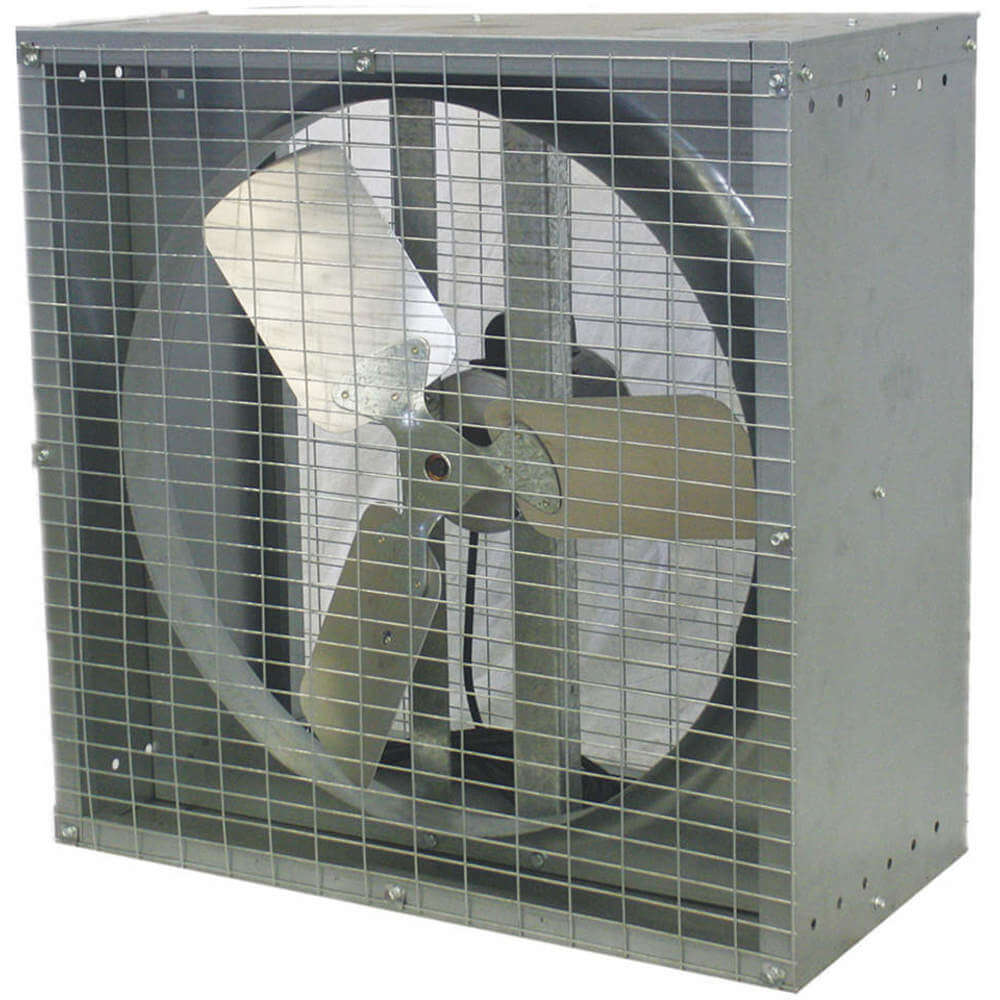

DAYTON 44YU13 Exhaust Fan 24 Inch Direct Drive 230V | AH9UYU 44YU13Direct Drive24"1100 RPM11/2 hp115/230VVerticalGalvanized€1,034.76
DAYTON 44YU15 Exhaust Fan 48 Inch 3-Phase 230V | AH9UYW 44YU15Direct Drive48"850 RPM31 hp230/460VVerticalGalvanized€1,277.58

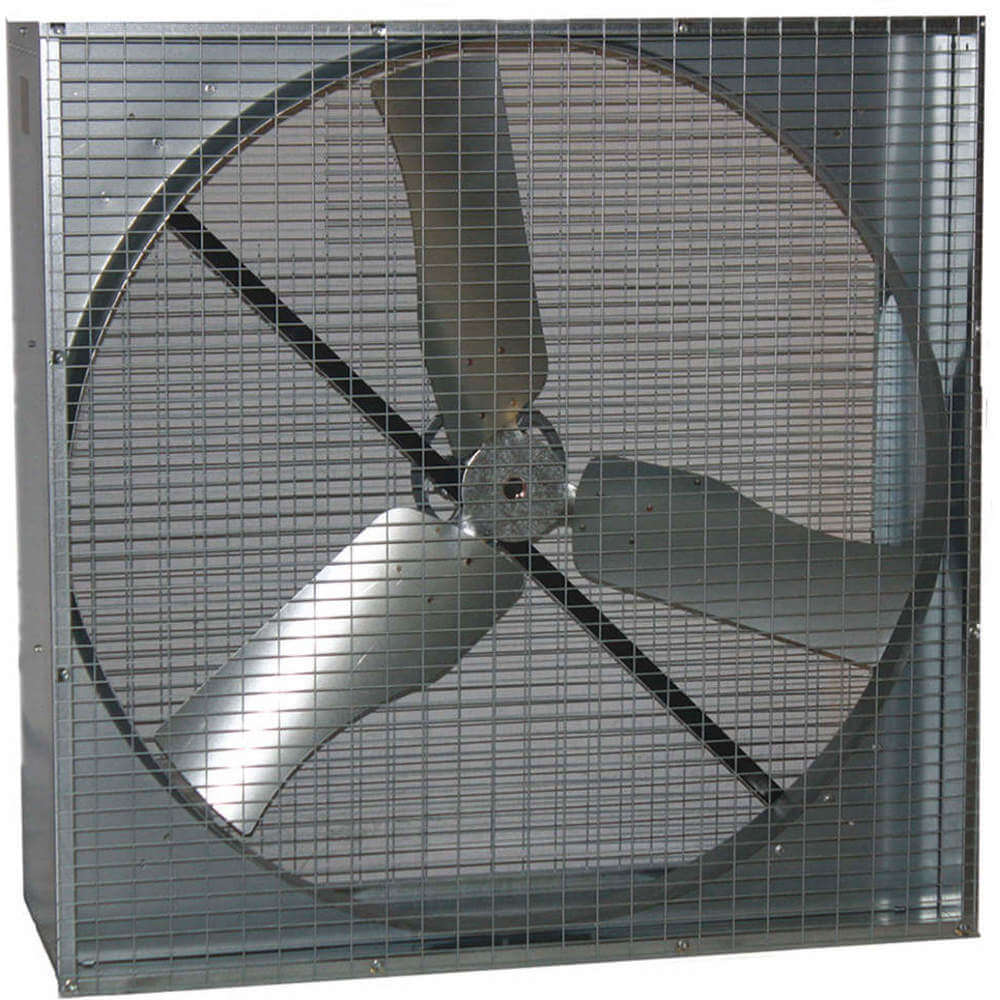

DAYTON 44YU20 Exhaust Fan 48 Inch Belt Drive Less Motor | AH9UZB 44YU20Belt Drive48"1725 RPM---VerticalZincPlated€2,103.27

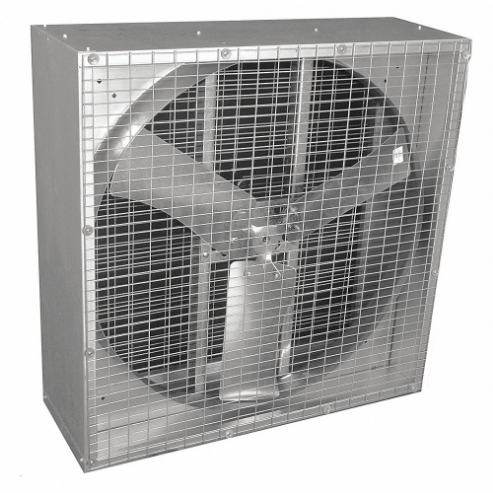

DAYTON 7DZ46 Agricultural Exhaust Fan, Belt Drive, 36 Inch Blade Size, 3/4 HP, 1 Phase | CH9NTG 7DZ46Belt Drive36"1725 RPM1--WallZinc Plated€1,261.47
DAYTON 7DZ45 Agricultural Exhaust Fan, Belt Drive, 48 Inch Blade Size, 1 HP, 1 Phase | CH9NTH 7DZ45Belt Drive48"1725 RPM1--WallZinc Plated€2,827.64
