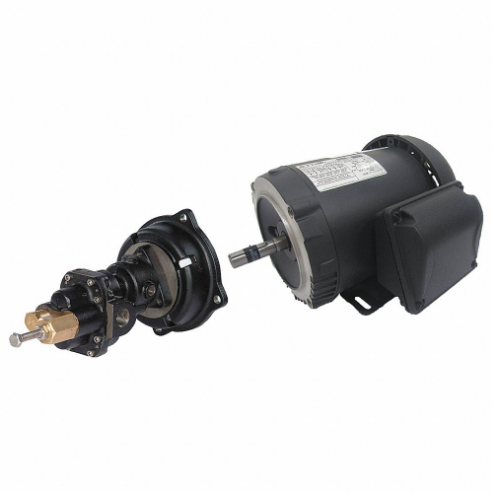

DAYTON 41TK18 Rotary Gear Pump, Close Coupled, 1 1/2 HP, 230/460V
Get it by Wednesday, Dec 24
10.00% off
€996.62 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Rotary Gear Pump |
| Assembled/unassembled | Unassembled |
| Body Material | Cast Iron |
| Bushing | Carbon Graphite |
| Bushing Material | Carbon Graphite |
| Flow Rate - Maximum | 10.8 GPM |
| Flow Rate @ 100 Psi | 10.2 GPM |
| Flow Rate @ 20 Psi | 10.7 GPM |
| Flow Rate @ 40 Psi | 10.6 GPM |
| Flow Rate @ 60 Psi | 10.5 GPM |
| Frame | 56C |
| Gear Design | Spur |
| Gear Material | Steel |
| Gpm @ 100 Psi | 10.2 GPM |
| Gpm @ 20 Psi | 10.7 GPM |
| Gpm @ 40 Psi | 10.6 GPM |
| Gpm @ 60 Psi | 10.5 GPM |
| Gpm @ Freeflow | 10.8 GPM |
| Gpm Max. | 10.8 GPM |
| Height | 23 1/4" |
| Horsepower - Maximum | 1 1/2 hp |
| Hp | 1 1/2 hp |
| Intake Connection | 1/2" |
| Intake Connection Size | 1/2" |
| Length | 8 1/4" |
| Manufacturer Warranty Length | 1 yr. |
| Max. Flow Rate | 10.8 GPM |
| Max. Hp | 1 1/2 hp |
| Max. Motor Speed | 1725 RPM |
| Max. Operating Pressure | 125 psi |
| Max. Pressure | 125 psi |
| Max. Suction Lift | 12.3 ft. |
| Max. Viscosity | 500 SUS |
| Max. Viscosity (ssu) | 500 SUS |
| Media Intake Connection Size | 1/2" |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Frame | 56C |
| Motor Mounting Type | Close Coupled |
| Mounting Type | Close Coupled |
| Nameplate Voltage | 230/460V AC |
| O-ring | Viton |
| O-ring Material | Viton |
| Operating Temp. Range | 32°F to 280°F |
| Overall Height | 23.3" |
| Overall Length | 8.3" |
| Overall Width | 12 4/5" |
| Phase | 3 |
| Port Size (in.) | 1/2" |
| Pump Type | Close Coupled |
| Relief Valve | Yes |
| Seal Material | Viton |
| Seal Type | Mechanical |
| Shaft Material | Steel |
| Suction Lift (ft.) | 12.3 ft. |
| Suction Lift -maximum | 12.3 ft. |
| Viscosity - Maximum | 500 SUS |
| Width | 12 4/5" |
Shipping Info:
| Ship weight (kg) | 23.27 |
| Ship height (cm) | 59.18 |
| Ship length (cm) | 21.08 |
| Ship width (cm) | 32.51 |
| Country of Origin | US |
Product Variants
| Product | Model | Hp | Body Material | Flow Rate @ 100 Psi | Max. Operating Pressure | Shaft Material | Seal Type | Operating Temp. Range | Seal Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
6DHH9 | 1/3 hp | Cast Iron | Not Applicable | 40 psi | Stainless Steel | Lip | 40°F to 375°F | Silicone | €729.04 | |
|
6DHJ0 | 1/2 hp | Cast Iron | Not Applicable | 40 psi | Stainless Steel | Lip | 40°F to 375°F | Silicone | €912.57 | |
 |
41TK12 | 1 1/2 hp | Stainless Steel | 10.2 GPM | 125 psi | Stainless Steel | Mechanical | 32°F to 280°F | Viton | €1,958.61 | |
 |

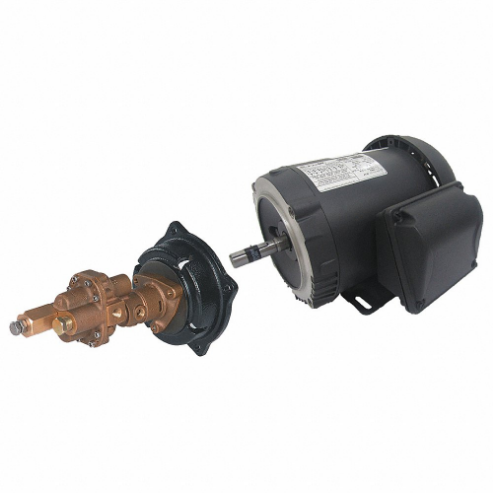

41TK19 | 1 1/2 hp | Bronze | 10.2 GPM | 125 psi | Stainless Steel | Mechanical | -20°F to +210°F | Buna N | €1,277.17 | |
 |
41TK10 | 1 1/2 hp | Cast Iron | 10.2 GPM | 125 psi | Steel | Mechanical | 32°F to 280°F | Viton | €1,395.45 | |
 |
41TK26 | 1/2 hp | Cast Iron | 3 GPM | 100 psi | Steel | Mechanical | 32°F to 280°F | Viton | €616.63 | |
 |
41TK21 | 3 hp | Cast Iron | 23.9 GPM | 125 psi | Steel | Mechanical | 32°F to 280°F | Viton | €1,584.41 |
