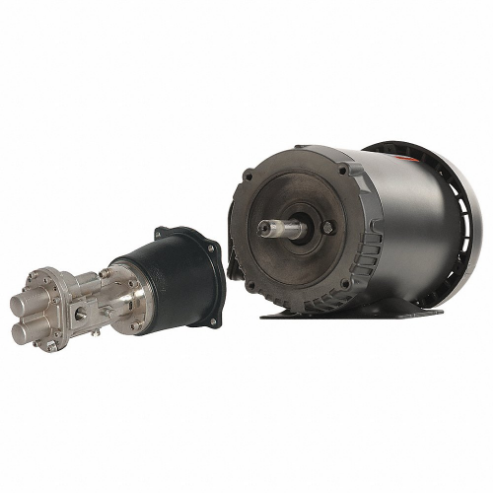

DAYTON 41TK15 Rotary Gear Pump, Close Coupled, 1 HP, 230/460V
Get it by Friday, Feb 13
10.00% off
€1,278.10 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Rotary Gear Pump |
| Assembled/unassembled | Unassembled |
| Body Material | Stainless Steel |
| Bushing | Carbon Graphite |
| Bushing Material | Carbon Graphite |
| Flow Rate - Maximum | 4.8 GPM |
| Flow Rate @ 100 Psi | 4.4 GPM |
| Flow Rate @ 20 Psi | 4.5 GPM |
| Flow Rate @ 40 Psi | 4.2 GPM |
| Flow Rate @ 60 Psi | 4 GPM |
| Frame | 56C |
| Gear Design | Spur |
| Gear Material | Fortron PPS |
| Gpm @ 100 Psi | 4.4 GPM |
| Gpm @ 20 Psi | 4.5 GPM |
| Gpm @ 40 Psi | 4.2 GPM |
| Gpm @ 60 Psi | 4 GPM |
| Gpm @ Freeflow | 4.8 GPM |
| Gpm Max. | 4.8 GPM |
| Height | 8 3/4" |
| Horsepower - Maximum | 1 hp |
| Hp | 1 hp |
| Intake Connection | 3/8" |
| Intake Connection Size | 3/8" |
| Length | 22 3/4" |
| Manufacturer Warranty Length | 1 yr. |
| Max. Flow Rate | 4.8 GPM |
| Max. Hp | 1 hp |
| Max. Motor Speed | 1725 RPM |
| Max. Operating Pressure | 125 psi |
| Max. Pressure | 125 psi |
| Max. Suction Lift | 3.5 ft. |
| Max. Viscosity | 500 SUS |
| Max. Viscosity (ssu) | 500 SUS |
| Media Intake Connection Size | 3/8" |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Frame | 56C |
| Motor Mounting Type | Close Coupled |
| Mounting Type | Close Coupled |
| Nameplate Voltage | 230/460V AC |
| O-ring | Viton |
| O-ring Material | Viton |
| Operating Temp. Range | 32°F to 280°F |
| Overall Height | 8 4/5" |
| Overall Length | 22 4/5" |
| Overall Width | 11" |
| Phase | 3 |
| Port Size (in.) | 3/8" |
| Pump Type | Close Coupled |
| Relief Valve | No |
| Seal Material | Viton |
| Seal Type | Mechanical |
| Shaft Material | Stainless Steel |
| Suction Lift (ft.) | 3.5 ft. |
| Suction Lift -maximum | 3.5 ft. |
| Viscosity - Maximum | 500 SUS |
| Width | 11" |
Shipping Info:
| Ship weight (kg) | 25.16 |
| Ship height (cm) | 22.35 |
| Ship length (cm) | 57.91 |
| Ship width (cm) | 27.94 |
| Country of Origin | US |
Product Variants
| Product | Model | Hp | Body Material | Flow Rate @ 100 Psi | Max. Operating Pressure | Shaft Material | Seal Type | Operating Temp. Range | Seal Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
6DHJ0 | 1/2 hp | Cast Iron | Not Applicable | 40 psi | Stainless Steel | Lip | 40°F to 375°F | Silicone | €912.57 | |
 |
41TK05 | 1 hp | Cast Iron | 4.4 GPM | 125 psi | Steel | Mechanical | 32°F to 280°F | Viton | €1,100.98 | |
 |
41TK07 | 1 hp | Stainless Steel | 4.4 GPM | 125 psi | Stainless Steel | Mechanical | 32°F to 280°F | Viton | €1,615.19 | |
 |
41TK09 | 1 1/2 hp | Cast Iron | 6.5 GPM | 125 psi | Steel | Mechanical | 32°F to 280°F | Viton | €1,376.78 | |
|
41TK10 | 1 1/2 hp | Cast Iron | 10.2 GPM | 125 psi | Steel | Mechanical | 32°F to 280°F | Viton | €1,395.45 | |
 |
41TK11 | 1 1/2 hp | Bronze | 10.2 GPM | 125 psi | Stainless Steel | Mechanical | -20°F to +210°F | Buna N | €1,565.28 | |
 |
41TK12 | 1 1/2 hp | Stainless Steel | 10.2 GPM | 125 psi | Stainless Steel | Mechanical | 32°F to 280°F | Viton | €1,958.61 |
