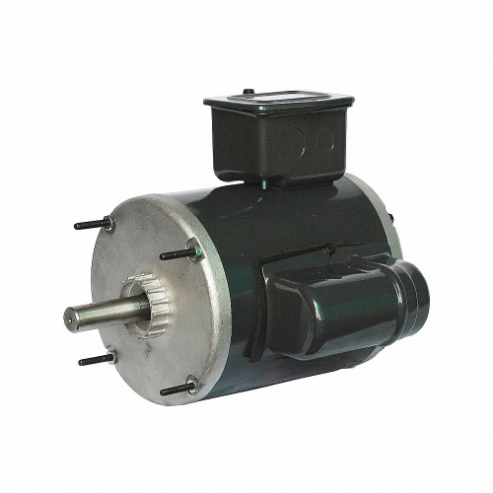

DAYTON 41NL05 Direct Drive Motor, 1/3 HP, 1075 RPM, 115V AC, 3.3A Full Load
Item: CJ2AEPModel: 41NL05
7 In Stock
Ships within 2 days via
10.00% off
€203.77 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Direct Drive Motor |
| Application | Exhaust Fans |
| Bearing Type | Ball |
| Body Dia. | 5 3/5" |
| Bolt Circle Dia. | 3/16" |
| Capacitor Required | Included |
| Full Load Amps | 3.3A |
| Hp | 1/3 hp |
| Ins. Class | Class B |
| Length Less Shaft | 6 7/8" |
| Manufacturers Warranty Length | 1 yr. |
| Max. Ambient Temp. | 104°F |
| Motor Application | Exhaust Fans |
| Motor Bearings | Ball |
| Motor Design | Permanent Split Capacitor |
| Motor Enclosure Design | Totally Enclosed Air Over |
| Motor Mounting Type | Stud |
| Motor Service Factor | 1 |
| Motor Shaft Rotation | Clockwise Shaft End |
| Motor Sub Application | Direct Drive Fan/Blower |
| Motor Thermal Protection | Automatic |
| Motor Type | Permanent Split Capacitor |
| Mounting Stud Pattern | 3 5/8" x 3 5/8" |
| Mounting Type | Extended Studs |
| Nameplate Rpm | 1075 RPM |
| No. Of Shafts | 1 |
| No. Of Speeds | 1 |
| Number Of Shafts | 1 |
| Number Of Speeds | 1 |
| Overall Length | 8 15/16" |
| Phase | Single |
| Replacement For | Dayton 1HKL8C, Dayton 1HLB4C |
| Service Factor | 1 |
| Shaft Dia. | 17 mm |
| Shaft Length | 2 1/16" |
| Stud Pattern | 3 5/8" x 3 5/8" |
| Stud Size | M5 |
| Thermal Protection | Automatic |
| Voltage | 115V AC |
Shipping Info:
| Ship weight (kg) | 2.09 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 22.71 |
| Ship width (cm) | 2.54 |
| Country of Origin | CN |
Product Variants
| Product | Model | Voltage | Hp | Nameplate Rpm | Motor Enclosure Design | No. Of Speeds | Shaft Dia. | Shaft Length | Motor Thermal Protection | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
C663 | 208-230/460V AC | 3/4 hp | 1100 RPM | Open Dripproof | 1 | 5/8" | 4 1/8" | Auto | €1,120.48 | |
 |
GGS_47538 | 115V AC | 1/8 hp | 1625 RPM | Totally Enclosed Air Over | 1 | 12 mm | 3" | Auto | €258.86 | |
 |
GGS_47540 | 115V AC | 1/4 hp | 1075 RPM | Totally Enclosed Air Over | 1 | 17 mm | 2 3/4" | Auto | €321.74 | |
|
GGS_47541 | 115V AC | 1/3 hp | 1075 RPM | Totally Enclosed Air Over | 1 | 17 mm | 2 3/4" | Auto | €292.84 | |
 |
GGS_47539 | 115V AC | 1/6 hp | 1625 RPM | Totally Enclosed Air Over | 1 | 12 mm | 3" | Auto | €285.25 | |
 |
GGS_47542 | 115V AC | 1/2 hp | 1075 RPM | Totally Enclosed Air Over | 1 | 17 mm | 3 1/4" | Auto | €324.90 | |
 |
41NL03 | 115V AC | 1/20 hp | 1550 RPM | Totally Enclosed Air Over | 1 | 10 mm | 1 5/8" | Automatic | €75.17 |
