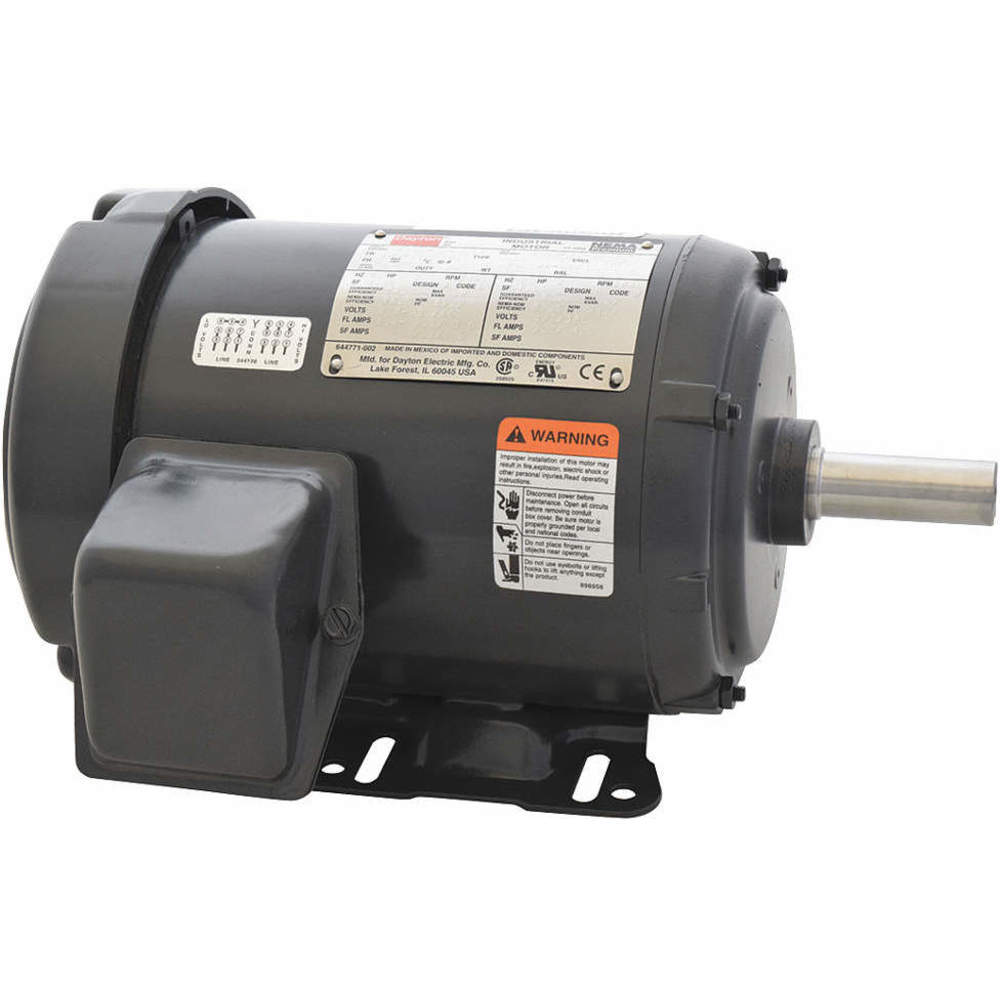

DAYTON 41D774 Motor 3 Hp 3490 Rpm 143-5t 56hz
Get it by Tuesday, Dec 23
10.00% off
€1,097.91 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | General Purpose Motor |
| Ambient Temp. | 104°F |
| Base Type | Rigid Base |
| Bearing Type | Ball |
| Cc Number | CC060A |
| Duty Cycle | Continuous |
| Efficiency | 86.5% |
| Efficiency Group | Premium |
| Frame | 143T-145T/56HZ |
| Frame Material | Steel |
| Frequency | 60 Hz |
| Full Load Amps | 7.2/3.6A |
| Green Certification Or Other Recognition | NEMA Premium Rated |
| Hp | 3 hp |
| Insulation Class | Class F |
| Length Less Shaft | 11 3/4" |
| Manufacturers Warranty Length | 1 yr. |
| Max. Ambient Temp. | 40°C |
| Motor Application | General Application |
| Motor Bearings | Ball |
| Motor Design | 3 Phase |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Frame Material | Rolled Steel |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Rigid Base |
| Motor Service Factor | 1.25 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | Clockwise, Counter Clockwise |
| Motor Shaft Rotation | Clockwise/Counter Clockwise |
| Motor Type | Three Phase |
| Mounting Type | Rigid Base |
| Nameplate Rpm | 3510 RPM |
| No. Of Speeds | 1 |
| Nominal Efficiency | 86.5% |
| Overall Length | 13" |
| Phase | 3 |
| Rpm Range | 3001-3600 RPM |
| Service Factor | 1.25 |
| Shaft Dia. | 7/8" |
| Shaft Length | 2" |
| Standards | Csa, Ul |
| Thermal Protection | None |
| Voltage | 208-230/460V AC |
Shipping Info:
| Ship weight (kg) | 19.49 |
| Ship height (cm) | 23.18 |
| Ship length (cm) | 39.37 |
| Ship width (cm) | 31.75 |
| HS code | 8501524000 |
| Country of Origin | MX |
Product Variants
| Product | Model | Motor Enclosure Design | Voltage | Phase | Hp | Nameplate Rpm | Frequency | Full Load Amps | Service Factor | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
10C897 | Totally Enclosed Fan Cooled | 208-230/460V AC | 3 | 1/2 hp | 1725 RPM | 50/60 Hz | 1.9/1A | 1 | €470.31 | |
 |
10C899 | Totally Enclosed Fan Cooled | 208-230/460V AC | 3 | 3/4 hp | 1725 RPM | 50/60 Hz | 2.8/1.5A | 1 | €472.60 | |
 |
10C901 | Totally Enclosed Fan Cooled | 208-230/460V AC | 3 | 1/2 hp | 3450 RPM | 50/60 Hz | 2/1A | 1.15 | €436.30 | |
 |
11W365 | Totally Enclosed Fan Cooled | 230/460V AC | 3 | 1/4 hp | 1720 RPM | 60 Hz | 1/0.5A | 1.15 | €438.71 | |
|
11W368 | Totally Enclosed Fan Cooled | 230/460V AC | 3 | 1/3 hp | 1140 RPM | 60 Hz | 1.5/0.7A | - | €434.31 | |
 |
11W369 | Totally Enclosed Fan Cooled | 230/460V AC | 3 | 1 1/2 hp | 1170 RPM | 60 Hz | 4.4/2.2A | 1.15 | €1,471.34 | |
 |
01518ST3QAP254T-W22 | Totally Enclosed Fan Cooled | 460V AC | 3 | 15 hp | 1765 RPM | 50/60 Hz | 18A | 1.25 | €4,875.87 |
