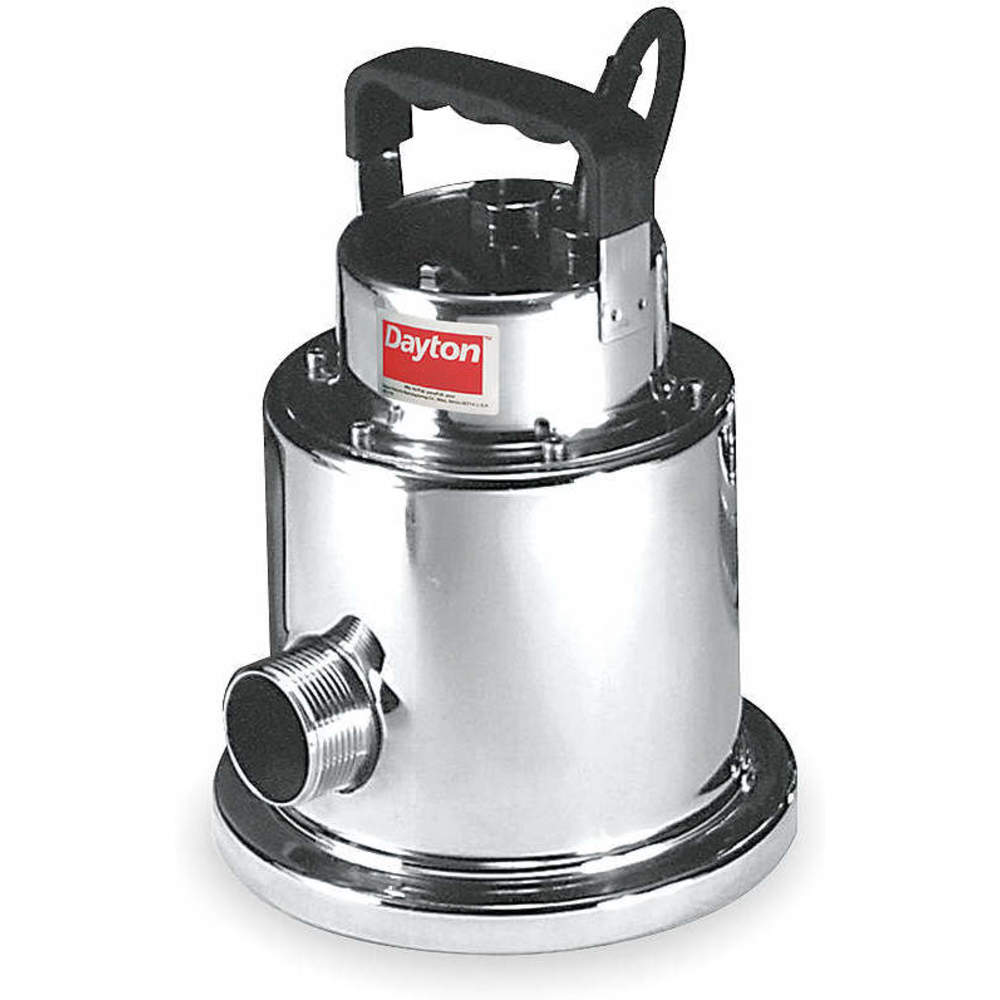

DAYTON 3YU64 Pump Utility 1/4 Hp
Item: AD3FJMModel: 3YU64
7 In Stock
Ships within 2 days via
10.00% off
€595.77 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Chemical Resistant Submersible Pump |
| Amps | 2.5A |
| Base Material | Stainless Steel |
| Body Dia. | 7" |
| Body Material | Stainless Steel |
| Cord Length | 15 ft. |
| Cord Length - Pumps | 15 ft. |
| Diameter | 7" |
| Discharge Dia. | 1 1/4" |
| Discharge Gender | Male |
| Discharge Npt | 1 1/4" |
| Duty | Continuous |
| Duty Cycle | Continuous |
| Flow Rate @ 10 Ft. | 13 GPM |
| Flow Rate @ 10 Ft. Of Head | 13 GPM |
| Flow Rate @ 15 Ft. Of Head | 8.8 GPM |
| Flow Rate @ 20 Ft. | 4 GPM |
| Flow Rate @ 20 Ft. Of Head | 4 GPM |
| Flow Rate @ 5 Ft. | 19 GPM |
| Flow Rate @ 5 Ft. Of Head | 19 GPM |
| For Use With | Nonflammable Liquids Compatible With Pump Materials |
| Function | Pumps Standing Water Down To 1/8" |
| Handle | Top Carrying |
| Height | 9" |
| Housing Material | Stainless Steel |
| Hp | 1/4 hp |
| Impeller Material | Polyamide |
| Impeller Material - Pumps | Polyamide |
| Max. Dia. Solids | 1/8" |
| Max. Flow Rate @ 15 Ft. | 8.8 GPM |
| Max. Head | 23 ft. |
| Max. Head - Pumps | 23 ft. |
| Max. Liquid Temp. | 104°F |
| Max. Media Temp. | 104°F |
| Max. Solid Dia. | 1/8" |
| Min. Sump Pit Dia. | 18" |
| Min. Water Depth | 18" |
| Outlet | 1 1/4" Mnpt |
| Outlet Size | 1 1/4" |
| Outlet Type | MNPT |
| Overall Height | 9" |
| Pump Body Material | Stainless Steel |
| Rated Voltage | 115V |
| Seal Material | Buna N |
| Shaft Material | Buna N |
| Shaft Seal | Buna N |
| Shaft Seal Material - Pumps | Buna N |
| Switch Actuation | No Switch Included |
| Top Material | Stainless Steel |
| Voltage | 115V AC |
| Voltage - Pumps | 120V AC |
Shipping Info:
| Ship weight (kg) | 4.86 |
| Ship height (cm) | 33.02 |
| Ship length (cm) | 22.61 |
| Ship width (cm) | 19.05 |
| HS code | 8413702004 |
| Country of Origin | CN |
Product Details:
- Suction (Screened Bottom)
Product Variants
| Product | Model | Hp | Body Material | Voltage | Switch Actuation | Duty Cycle | Cord Length | Max. Dia. Solids | Max. Head | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
11C685 | 1/4 hp | Stainless Steel | 120V AC | No Switch Included | Continuous | 20 ft. | 3/16" | 20 ft. | €461.40 | |
 |
11C686 | 1/3 hp | Stainless Steel | 120V AC | No Switch Included | Continuous | 20 ft. | 3/16" | 32 ft. | €468.71 | |
|
11C687 | 1/2 hp | Stainless Steel | 120V AC | No Switch Included | Continuous | 20 ft. | 3/16" | 35 ft. | €530.95 | |
 |
1XHV4 | 1/2 hp | Stainless Steel | 120V AC | No Switch Included | Continuous | 20 ft. | 1/4" | 36 ft. | €967.63 | |
|
1XHV5 | 1 hp | Stainless Steel | 120V AC | No Switch Included | Continuous | 20 ft. | 3/8" | 49 ft. | €1,678.92 | |
 |
3YU54 | 1/6 hp | Polypropylene | 115V AC | No Switch Included | Intermittent | 10 ft. | 1/8" | 20 ft. | €251.23 | |
|
3YU55 | 1/4 hp | Polypropylene | 115V AC | No Switch Included | Intermittent | 10 ft. | 1/8" | 22 ft. | €270.18 |
