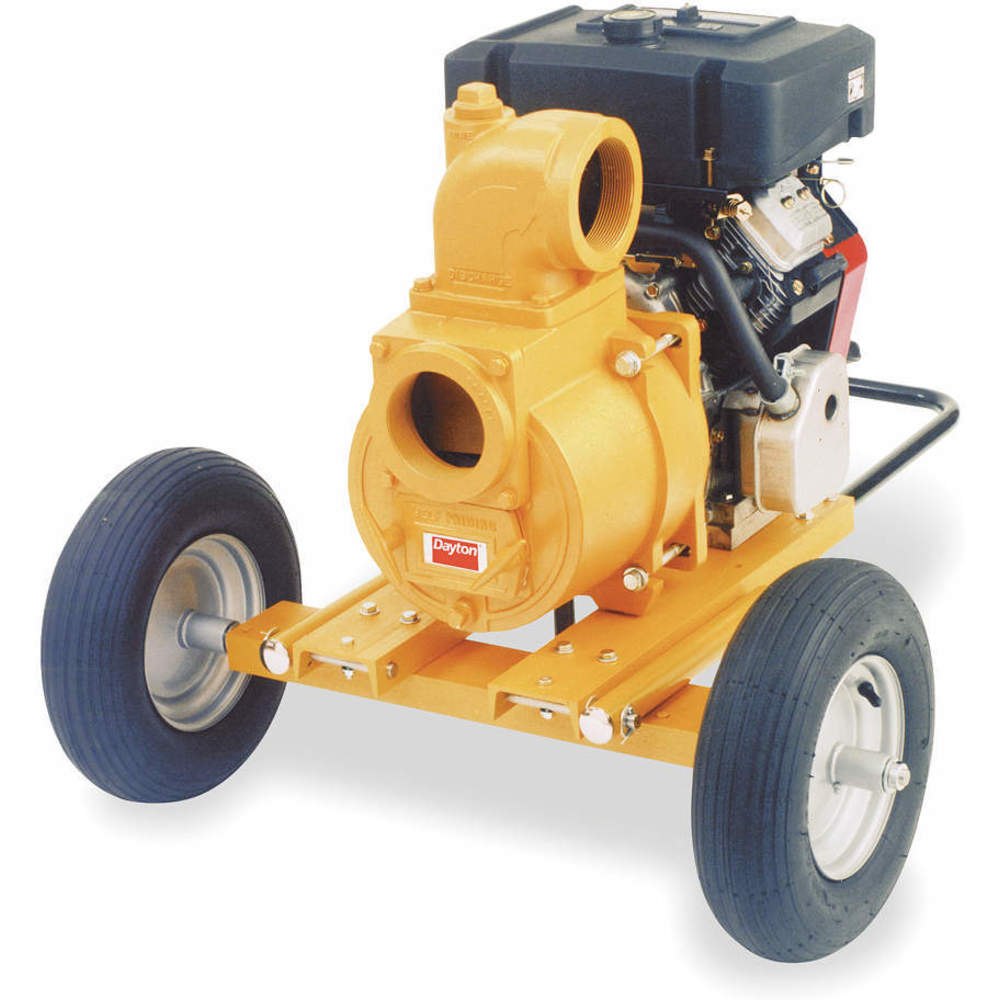

DAYTON 3P653 Pump Trash 13 Hp
Get it by Tuesday, Aug 18
5.00% off
€4,974.02 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Engine Driven Centrifugal Pump |
| Adapter Casing Material | Aluminum |
| Application | Trash |
| Body Material | Aluminum |
| Casing Adapter | Aluminum |
| Casing Adapter | Aluminium |
| Check Valve | Buna N |
| Check Valve | Buna |
| Check Valve Material | Buna N |
| Discharge Dia. | 4" |
| Discharge Gender | Male |
| Discharge Size | 4" |
| Discharge Type | MNPT |
| Engine Brand | Honda GX390 OHV E-Start |
| Engine Rpm | 3600 |
| Engine Size | 389 cc |
| Engine/motor Type | Gas |
| Flow Rate @ 10 Ft. | 530 GPM |
| Flow Rate @ 10 Ft. Of Head | 530 GPM |
| Flow Rate @ 100 Ft. | 170 GPM |
| Flow Rate @ 20 Ft Of Head | 505 GPM |
| Flow Rate @ 20 Ft. | 505 GPM |
| Flow Rate @ 30 Ft. | 520 GPM |
| Flow Rate @ 40 Ft. | 520 GPM |
| Flow Rate @ 40 Ft. Of Head | 480 GPM |
| Flow Rate @ 50 Ft. | 465 GPM |
| Flow Rate @ 60 Ft. | 325 GPM |
| Flow Rate @ 60 Ft. Of Head | 325 GPM |
| Flow Rate @ 70 Ft. | 350 GPM |
| Flow Rate @ 80 Ft. | 180 GPM |
| Flow Rate @ 80 Ft. Of Head | 180 GPM |
| Flow Rate @ 90 Ft. | 120 GPM |
| Frame Design | Wheeled Transport Dolly |
| Frame Design-pumps | Wheeled Transport Dolly |
| Frame Material | Steel |
| Gpm Of Water @ 100 Ft. Of Head | 170 GPM |
| Gpm Of Water @ 90 Ft. Of Head | 120 |
| Height | 31 1/2" |
| Housing Material | Aluminum |
| Hp | 13 hp |
| Impeller | Cast Iron |
| Impeller Design | Semi Open |
| Impeller Material | Cast Iron |
| Impeller Type | Trash |
| Inlet | 4" MNPT |
| Inlet Dia. | 4" |
| Inlet Gender | Male |
| Inlet Size | 4" |
| Inlet Standard | NPT |
| Length | 44 1/2" |
| Material Of Construction | Aluminum |
| Max. Dia. Solids | 2" |
| Max. Discharge Pressure | 52 psi |
| Max. Head | 102 ft. |
| Max. Liquid Temp. | 180°F |
| Max. Pressure | 52 psi |
| Max. Solid Dia. | 2" |
| Max. Suction Lift | 20 ft. |
| Max. Suction Lift (ft.) | 20 |
| No. Of Impellers | 1 |
| Npt Port | 4" |
| Outlet | 4" Mnpt |
| Outlet Size | 4" |
| Outlet Type | NPT |
| Overall Height | 31 1/2" |
| Overall Length | 44 1/2" |
| Overall Width | 37 1/2" |
| Power Source | Gas |
| Pump Mechanism | Centrifugal |
| Roll Bar Frame | None |
| Seal Material | Buna N, Silicon Carbide |
| Sensor Type | None |
| Solids Handling Capacity (in.) | 2 |
| Speed | 3600 RPM |
| Tank Capacity | 2.25 gal. |
| Temp. | +40°F to +180°F |
| Type | Trash |
| Volute Material | Cast Iron |
| Volute/wear Plate | Cast-Iron |
| Width | 37 1/2" |
Shipping Info:
| Ship weight (kg) | 132.3 |
| Ship height (cm) | 80.01 |
| Ship length (cm) | 113.03 |
| Ship width (cm) | 95.25 |
| HS code | 8413702040 |
| Country of Origin | US |
Product Details:
- Number of Impellers (1)
Product Variants
| Product | Model | Type | Hp | Height | Outlet Size | Overall Height | Discharge Dia. | Flow Rate @ 10 Ft. | Flow Rate @ 20 Ft. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
11G226 | General Purpose | 1 hp | 13 4/5" | 1" | 13 13/16" | 1" | 29 GPM | 27 GPM | €582.05 | |
 |
11G228 | General Purpose | 3 1/2 hp | 15 15/16" | 2" | 15 15/16" | 2" | 163 GPM | 152 GPM | €762.26 | |
 |
11G229 | General Purpose | 4 4/5 hp | 19" | 3" | 19" | 3" | 265 GPM | 249 GPM | €877.99 | |
 |
11G230 | General Purpose | 7 1/10 hp | 26 1/3" | 4" | 26 5/16" | 4" | 363 GPM | 339 GPM | €1,651.20 | |
 |
11G231 | High Pressure | 4 4/5 hp | 19 4/5" | 1 1/2" | 19 13/16" | 1 1/2" | 104 GPM | 102 GPM | €977.46 | |
 |
11G232 | High Pressure | 4 4/5 hp | 17 15/16" | 2" | 17 15/16" | 2" | 113 GPM | 109 GPM | €1,100.30 | |
 |
11G234 | Semi Trash | 3 1/2 hp | 16 15/16" | 2" | 16 15/16" | 2" | 148 GPM | 133 GPM | €818.73 |
