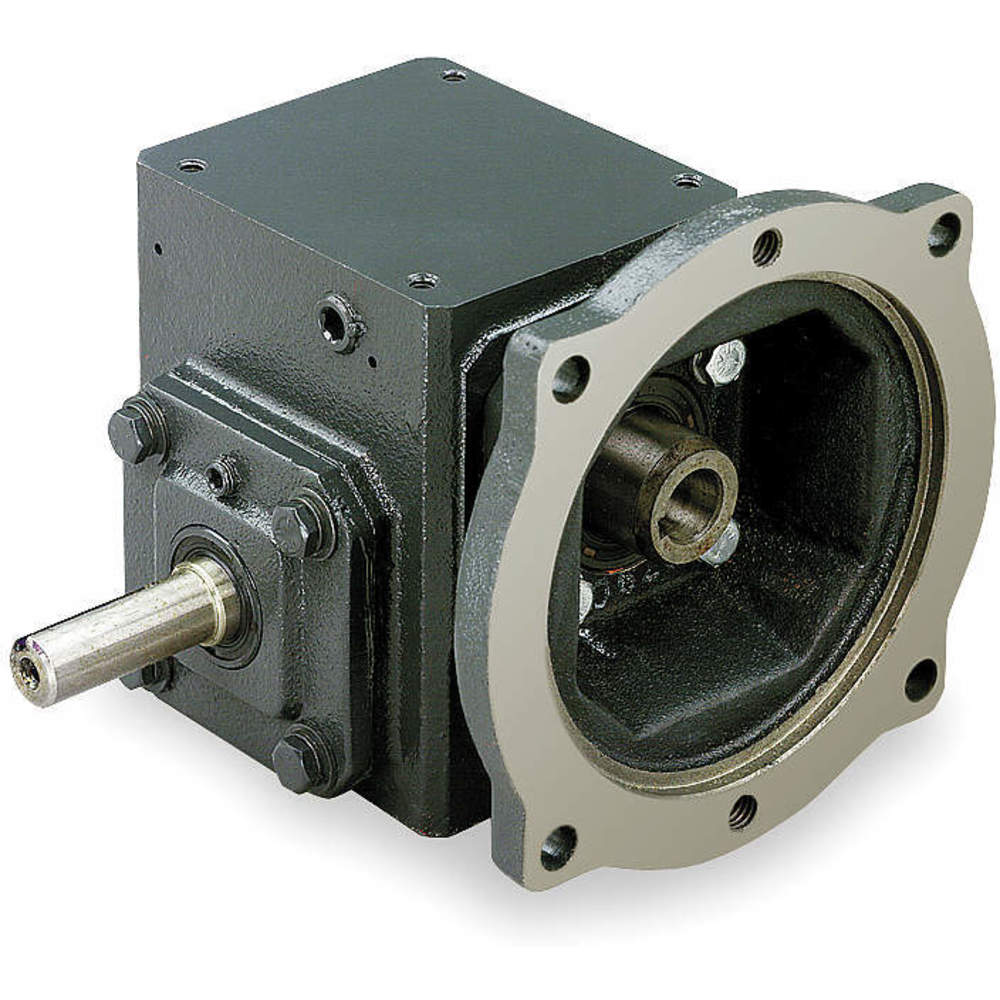

DAYTON 3GD58 Speed Reducer C-face 56c 30 1
Get it by Tuesday, Dec 23
10.00% off
€1,647.99 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Speed Reducer |
| Application | Speed Reducer |
| Bearing Type | Ball, Tapered Roller |
| Bore Dia. | 5/8" |
| Dimension U | 1 1/2" |
| Duty | Standard |
| Finish | Epoxy Paint |
| Frame | 56C |
| Gear Material | Hardened Steel, Manganese Bronze |
| Gear Ratio | 301 |
| Gear Type | Worm |
| Housing Material | Cast Iron |
| Housing Material Finish | Powder Coated Epoxy Paint |
| Input Connection Type | C-Face |
| Input Rpm | 1750 RPM |
| Input Shaft Diameter | 5/8" |
| Lubrication | Klubersynth UH1 6-460 |
| Max. Input Hp | 2 hp |
| Max. Output Torque | 1689 in.-lb. |
| Maximum Input Speed | 1750 RPM |
| Maximum Output Speed | 58 RPM |
| Maximum Output Torque | 1689 lbs.-in. |
| Motor Frame Designation | 56C |
| Mounting Orientation | Any Angle |
| Mounting Position | All Except Shaft Up |
| Mounting Type | All Position Except Input Motor Shaft Up |
| Nominal Output Rpm | 58 RPM |
| Number Of Stages | 1 |
| Output Shaft Dia. | 1 1/2" |
| Output Shaft Type | Keyed |
| Output Torque @ 1/40 Hp | 3600 lbs.-in. |
| Output Torque @ 3 Hp | 1689 in.-lb. |
| Overhung Load | 1500 lbs. |
| Overhung Load Capacity | 1500 lbs.-ft. |
| Pinion Material | Hardened Steel |
| Reducer Model No. | 84110 |
| Rotation | CW/CCW |
| Seal Type | Double Lip |
| Shaft Orientation | Right Angle |
| Single/double Output | Left Single Output |
| Solid/hollow Output Shaft | Solid |
| Speed Reducer Type | C Face |
| Standards | Agma |
| Worm Center Distance | 3 1/4" |
| Worm Gear Material | Bronze |
Shipping Info:
| Ship weight (kg) | 38.93 |
| Ship height (cm) | 33.53 |
| Ship length (cm) | 40.89 |
| Ship width (cm) | 37.34 |
| HS code | 8483405050 |
| Country of Origin | US |
Product Variants
| Product | Model | Output Shaft Type | Gear Ratio | Max. Input Hp | Worm Center Distance | Motor Frame Designation | Overhung Load | Nominal Output Rpm | Rotation | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
2Z151 | Round | 501 | 1/2 hp | 2.62" | 56C | 986 lbs. | 35 RPM | CW/CCW | €957.54 | |
|
2Z152 | Round | 251 | 3/4 hp | 2.62" | 56C | 679 lbs. | 69 RPM | CW/CCW | €809.51 | |
|
2Z153 | Round | 201 | 3/4 hp | 2.62" | 56C | - | 86 RPM | CW/CCW | €738.65 | |
 |
2Z154 | Round | 12.5:1 | 3/4 hp | 2.62" | 56C | - | 138 RPM | CW/CCW | €843.85 | |
|
2Z936 | Round | 101 | 3/4 hp | 2.62" | 56C | - | 173 RPM | CW/CCW | €809.51 | |
 |
3GD39 | Round | 601 | 3/10 hp | - | 56C | 700 lbs. | 29 RPM | CW/CCW | €900.70 | |
 |
3GD40 | Round | 501 | 1/2 hp | 1 3/4" | 56C | 700 lbs. | 35 RPM | CW/CCW | €835.31 |
