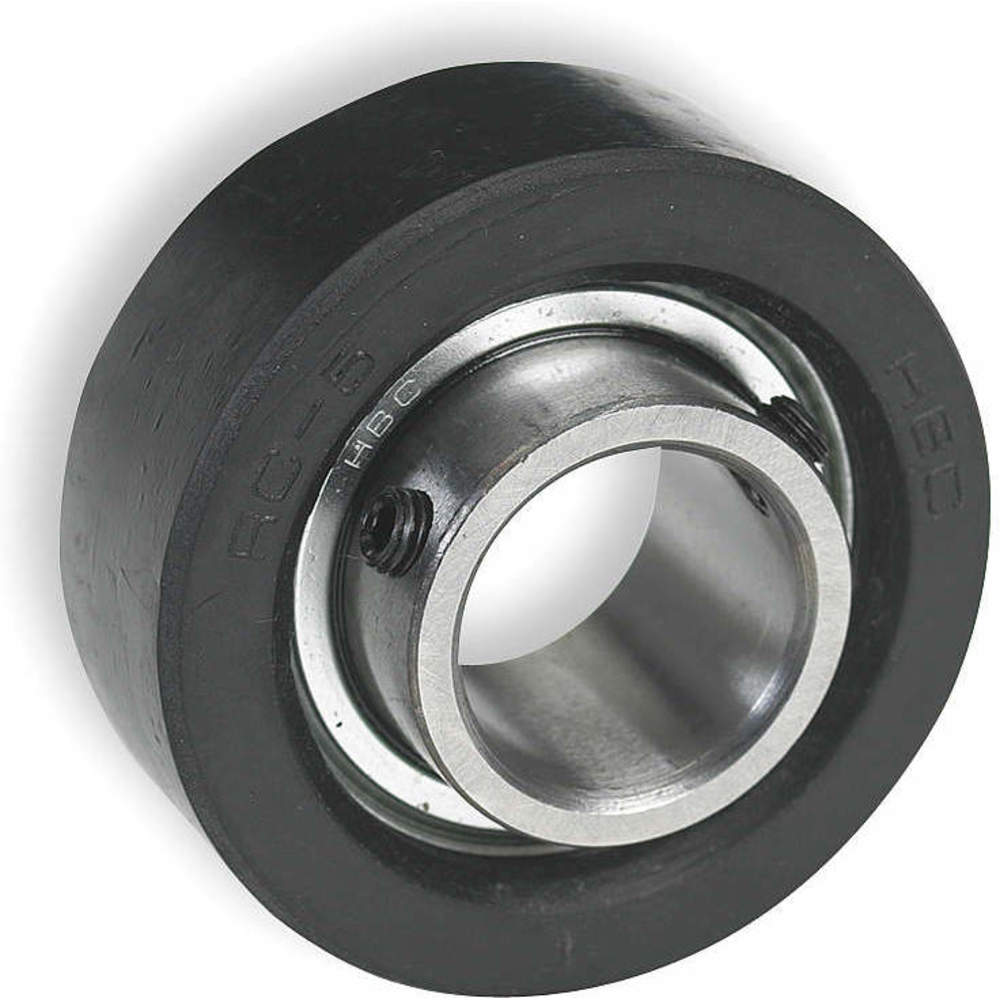

DAYTON 3FDF2 Mounted Ball Bearing 1/2 Inch Bore
Item: AC9AHHModel: 3FDF2
7 In Stock
Ships within 2 days via
10.00% off
€52.42 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Mounted Ball Bearing |
| Application | HVAC |
| Bearing Housing Material Type | Rubber |
| Bearing Insert Type | Radial Ball |
| Bore Dia. | 1/2" |
| Closure | Double Sealed |
| Closure Type | Double Sealed |
| Dynamic Load Capacity | 2146 lbs. |
| Dynamic Radial Load Capacity | 2146 lbf. |
| Grade | Grade 52100 |
| Housing Material | Rubber |
| Includes | (2) Set Screws |
| Insert | Ball Bearing |
| Insert Finish | Chrome Plated |
| Insert Material | Steel |
| Insert Type | Ball |
| Insert Type | Radial Ball |
| Lock Type | Set Screw |
| Lubricant Material | Nlgi #2 Equivalent |
| Material | Steel |
| Maximum Temperature | 220°F |
| Minimum Temperature | -20°F |
| Number Of Bolts | 0 |
| Outside Dia. | 2.531" |
| Outside Diameter | 2 17/32" |
| Overall Height | 1.141" |
| Overall Length | 2.531" |
| Overall Width | 1.14" |
| Ring Material | Alloy Steel |
| Ring Material Grade | Grade 52100 |
| Rolling Element Rows | 1 |
| Seal Type | Contact |
| Shaft Locking Type | Set Screws |
| Static Load Capacity | 1074 lbs. |
| Static Radial Load Capacity | 1074 lbf. |
| System Of Measurement | Inch |
| Type | Ball |
Shipping Info:
| Ship weight (kg) | 0.17 |
| Ship height (cm) | 2.79 |
| Ship length (cm) | 7.62 |
| Ship width (cm) | 6.86 |
| HS code | 8483208040 |
| Country of Origin | CN |
Product Variants
| Model | Shaft Locking Type | Housing Material | Bore Dia. | Overall Length | Overall Width | Overall Height | Closure | Mount Hole Center-to-center Length | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 3CUR1 | Set Screws | Cast Iron | 1/2" | 4 7/8" | 1.218" | 2 1/4" | Double Sealed | 3 5/8" | €73.65 | |
| 3CUR2 | Set Screws | Cast Iron | 5/8" | 4 7/8" | 1.218" | 2 1/4" | Double Sealed | 3 5/8" | €100.91 | |
| 3FCN1 | Set Screws | Cast Iron | 1 1/4" | 6 1/2" | 1 7/8" | 3.312" | Double Sealed | 4 3/4" | €95.25 | |
| 3FCN2 | Set Screws | Cast Iron | 1/2" | 3 7/8" | 2 1/8" | 1 9/64" | Single Sealed | 3" | €55.80 | |
| 3FCN3 | Set Screws | Cast Iron | 5/8" | 3 7/8" | 2 1/8" | 1 9/64" | Single Sealed | 3" | €56.03 | |
| 3FCN4 | Set Screws | Cast Iron | 3/4" | 4 7/16" | 2 3/8" | 1 3/8" | Single Sealed | 3 17/32" | €60.83 | |
| 3FCN5 | Set Screws | Cast Iron | 1" | 5 1/8" | 2 3/4" | 1 25/64" | Single Sealed | 3 57/64" | €61.97 |
