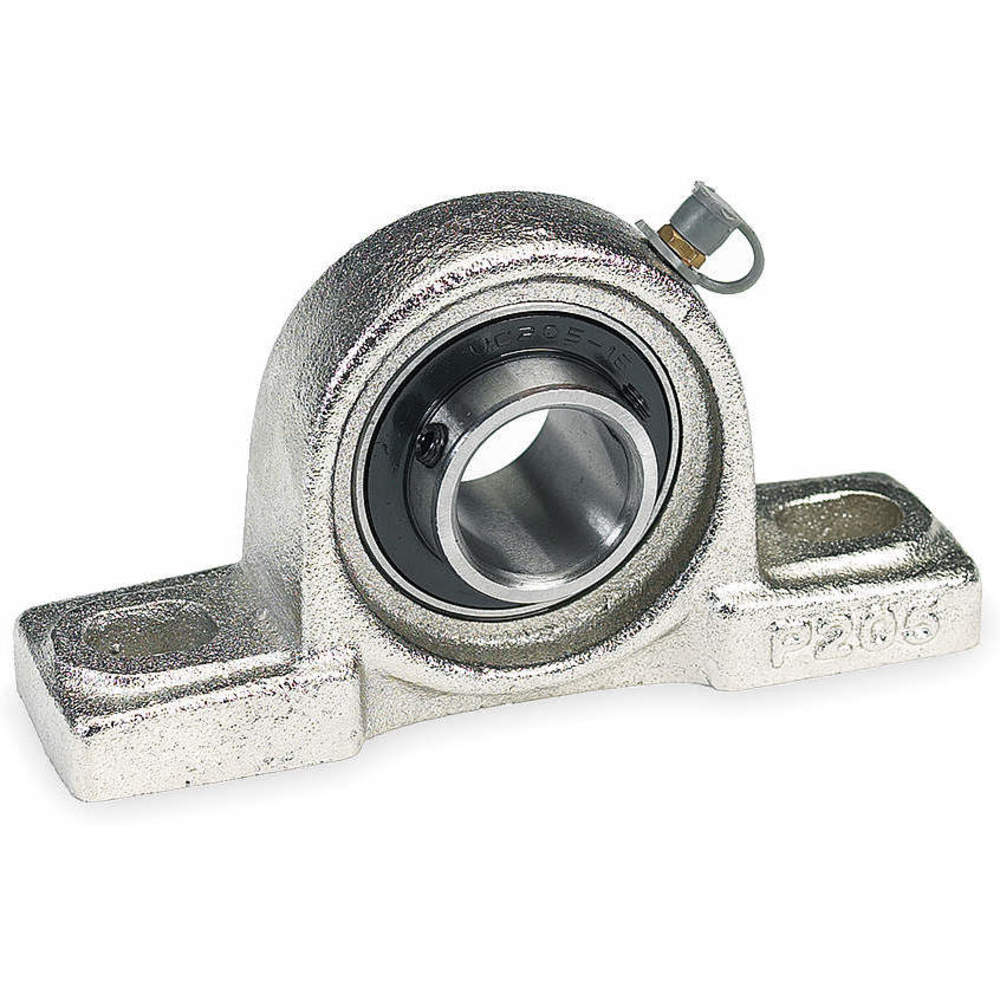

DAYTON 3FDD6 Mounted Ball Bearing 3/4 Inch Bore
Item: AC9AGTModel: 3FDD6
7 In Stock
Ships within 2 days via
10.00% off
€129.23 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Mounted Ball Bearing |
| Bearing Housing Material Type | Cast Iron |
| Bearing Insert Material | Alloy Steel |
| Bearing Insert Type | Radial Ball |
| Bearing Material Grade | Grade 52100 |
| Bolt Center To Center Length | 3 3/4" |
| Bolt Hole Size | 1/2" |
| Bolt Size | 3/8" |
| Bore Dia. | 3/4" |
| Bore Type | Cylindrical |
| Center Height | 1 5/16" |
| Closure | Double Sealed |
| Closure Type | Double Sealed |
| Color | Silver |
| Dynamic Load Capacity | 2876 lbs. |
| Dynamic Radial Load Capacity | 2876 lbf. |
| Finish | Nickel Plated |
| Grade | Grade 52100 |
| Housing Material | Cast Iron |
| Housing Material Finish | Nickel Plated |
| Includes | (2) Set Screws, Oiler Cap |
| Insert | Ball Bearing |
| Insert Finish | Chrome Plated |
| Insert Material | Steel |
| Insert Type | Ball |
| Insert Type | Radial Ball |
| Lock Type | Set Screw |
| Lubricant Material | Ngli #2 Equivalent |
| Material | Steel |
| Maximum Temperature | 200°F |
| Minimum Temperature | -20°F |
| Mount Hole Center-to-center Length | 3 3/4" |
| Mount Type | Bolt Through |
| Mounting Bolt Size | 3/8" |
| Mounting Hole Center | 3 3/4" |
| Mounting Surface To Shaft Center | 1 5/16" |
| Mounting Surface To Shaft Center Height | 1 5/16" |
| Number Of Bolts | 2 |
| Number Of Mounting Holes | 2 |
| Overall Height | 2.484" |
| Overall Length | 5" |
| Overall Width | 1 1/2" |
| Shaft Locking Type | Set Screws |
| Split Housing | Not Split |
| Static Load Capacity | 1493 lbs. |
| Static Radial Load Capacity | 1493 lbf. |
| System Of Measurement | Inch |
| Type | Ball |
Shipping Info:
| Ship weight (kg) | 0.7 |
| Ship height (cm) | 13.46 |
| Ship length (cm) | 5.33 |
| Ship width (cm) | 7.87 |
| HS code | 8483208040 |
| Country of Origin | CN |
Product Variants
| Model | Shaft Locking Type | Housing Material | Bore Dia. | Overall Length | Overall Width | Overall Height | Closure | Mount Hole Center-to-center Length | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 3CUR1 | Set Screws | Cast Iron | 1/2" | 4 7/8" | 1.218" | 2 1/4" | Double Sealed | 3 5/8" | €73.65 | |
| 3CUR2 | Set Screws | Cast Iron | 5/8" | 4 7/8" | 1.218" | 2 1/4" | Double Sealed | 3 5/8" | €100.91 | |
| 3FCN1 | Set Screws | Cast Iron | 1 1/4" | 6 1/2" | 1 7/8" | 3.312" | Double Sealed | 4 3/4" | €95.25 | |
| 3FCN2 | Set Screws | Cast Iron | 1/2" | 3 7/8" | 2 1/8" | 1 9/64" | Single Sealed | 3" | €55.80 | |
| 3FCN3 | Set Screws | Cast Iron | 5/8" | 3 7/8" | 2 1/8" | 1 9/64" | Single Sealed | 3" | €56.03 | |
| 3FCN4 | Set Screws | Cast Iron | 3/4" | 4 7/16" | 2 3/8" | 1 3/8" | Single Sealed | 3 17/32" | €60.83 | |
| 3FCN5 | Set Screws | Cast Iron | 1" | 5 1/8" | 2 3/4" | 1 25/64" | Single Sealed | 3 57/64" | €61.97 |
