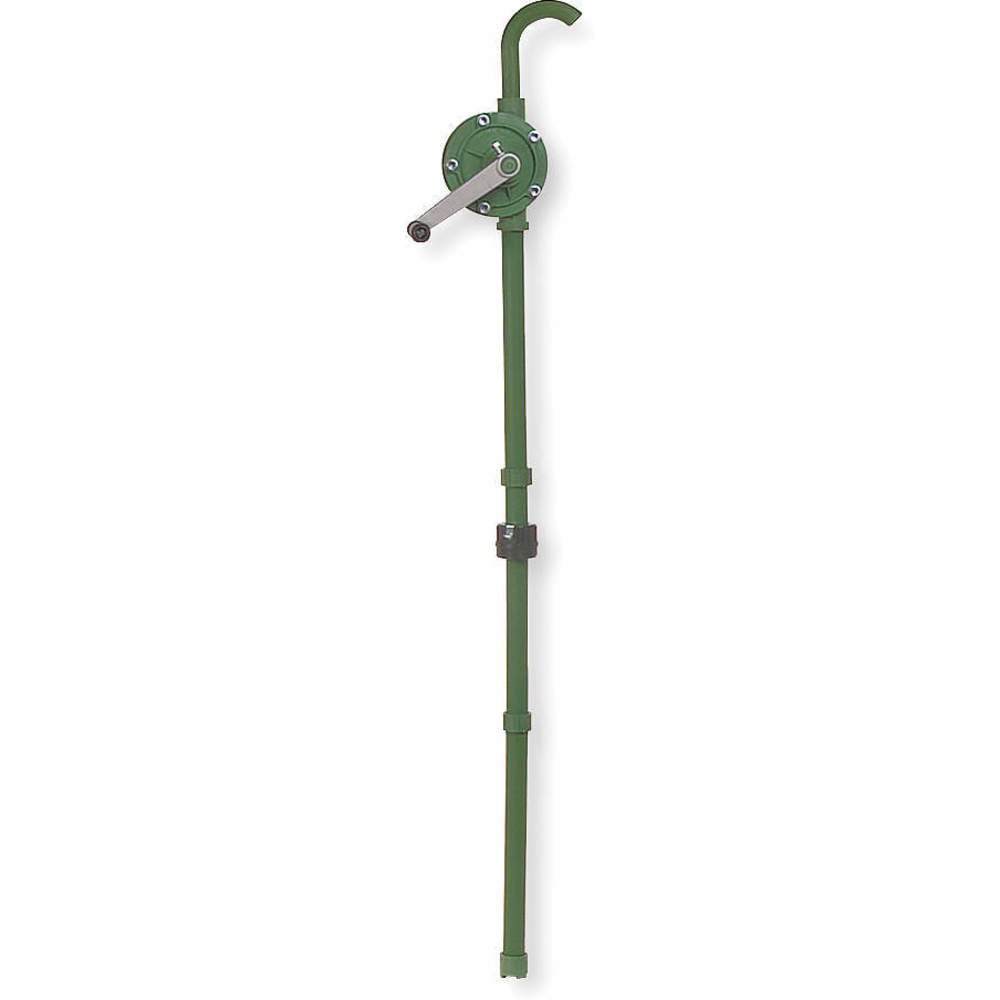

DAYTON 3BY41 Drum Pump Rotary 8 gpm
Item: AC8LHHModel: 3BY41
7 In Stock
Ships within 2 days via
10.00% off
€106.24 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Hand Operated Drum Pump |
| Action Type | Rotary |
| Adapter Dia. | 2" |
| Adapter Material | Polypropylene |
| Adapter Size | 2" |
| Adapter Type | Drum |
| Application | Alkaline, Detergents, Mild Acids, Water Based Chemicals |
| Bung Connection Dia. | 2" |
| Compatible Chemicals | Antifreeze (Coolant), Automatic Transmission Fluid, Deionized Water, Diesel Fuel, Ethyl (Ethanol), Fresh Water, Gasoline, Isopropyl (Isopropanol), Kerosene, Salt Water, Sodium Hypochlorite/Bleach (To 20%) |
| Discharge | 8 GPM |
| Discharge Tube Inside Dia. | 1" |
| Discharge Tube Length | 9.062" |
| Discharge Tube Length | 9 1/16" |
| Discharge Tube Outlet I.d. | 1" |
| Discharge Tube Outlet Id Size | 1" |
| Discharge Tube Outlet O.d. | 1" |
| Discharge Tube Outlet Od Size | 1" |
| Discharge Tubing Material | Polypropylene |
| Features | Light Weight |
| Fits Container Size | 15 gal., 30 gal., 55 gal. |
| Flow Rate | 8 GPM |
| Flow Rate @ Rpm | 8 Gpm @ 135 Rpm |
| For Container Size | 15 gal., 30 gal., 55 gal. |
| For Container Type | Bucket, Drum, Pail |
| For Media Type | Antifreeze, Automatic Transmission Fluid, Bleach, Diesel Fuel, Ethanol, Gasoline, Isopropanol, Kerosene, Water |
| For Use On | 15, 30 And 55 Gal. Drums |
| For Use With | Alkaline, Detergents, Mild Acids, Water Based Chemicals |
| Grade | Grade 304 |
| Hose Inside Dia. | 1" |
| Hose Outside Dia. | 1" |
| Housing Material | Polypropylene |
| Housing Material - Pumps | Polypropylene |
| Includes | Lip Seal |
| Includes Bung Adapter | Yes |
| Includes Discharge Hose | No |
| Includes Nozzle | No |
| Includes Spout | Yes |
| Includes Suction Tube | Yes |
| Inlet Inside Dia. | 1 1/6" |
| Inlet Size | 1 1/4" |
| Max. Flow Rate | 8 gal. @ 120 Strokes |
| Max. Flow Rate For Water | 8 GPM |
| Max. Gpm For Water | 8 |
| Max. Temp. | 158°F |
| Max. Viscosity | 2000 SUS |
| Metered | No |
| Motor Speed | 135 RPM |
| Not Recommended Chemicals | Methyl Ethyl Ketone (Mek) |
| Ounces Per Stroke | 8 GPM @ 135 RPM |
| Outlet Material | Polypropylene |
| Power Source | Hand Operated |
| Pump Body Material | Polypropylene |
| Pump Package Type | Basic Pump With Spout |
| Self Priming | Yes |
| Self-priming | Yes |
| Suction Tube Length | 41" |
| Suction Tube Length | 36 5/8" |
| Suction Tube O.d. | 1 1/4" |
| Suction Tube Outlet O.d. Size | 1-1/4" |
| Suction Tube Outside Dia. | 1 1/4" |
| Suction Tube Type | 3-Piece Tube |
| Wetted Material | PVDF, Stainless Steel |
| Wetted Materials | 304 Stainless Steel, PVDF |
Shipping Info:
| Ship weight (kg) | 1.59 |
| Ship height (cm) | 13.97 |
| Ship length (cm) | 39.37 |
| Ship width (cm) | 15.24 |
| HS code | 8413200000 |
| Country of Origin | TW |
Product Variants
| Product | Model | Max. Viscosity | Includes Suction Tube | For Container Size | Diesel Exhaust Fluid Compatible | Includes Discharge Hose | Includes Nozzle | Includes Bung Adapter | Metered | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
2RUK2 | 1500 SUS | Yes | 15 gal., 30 gal., 55 gal. | - | Yes | Yes | Yes | No | €402.19 | |
 |
38Y792 | 2000 SUS | Yes | 15 gal., 30 gal., 55 gal. | - | No | No | Yes | No | €361.69 | |
 |
3BY44 | 4000 SUS | Yes | 15 gal., 30 gal., 55 gal. | - | Yes | No | Yes | No | €60.55 | |
 |
4HA26 | 1500 SUS | Yes | 15 gal., 30 gal., 55 gal. | - | No | No | Yes | No | €138.51 | |
 |
4HA33 | 4000 SUS | Yes | 15 gal., 30 gal., 55 gal. | - | No | No | Yes | No | €40.09 | |
 |
4VCR2 | 2000 SUS | Yes | 15 gal., 30 gal., 55 gal. | - | No | No | Yes | - | €182.42 | |
 |
4VCR3 | 2000 SUS | Yes | 15 gal., 30 gal., 55 gal. | - | Yes | Yes | Yes | No | €306.55 |
