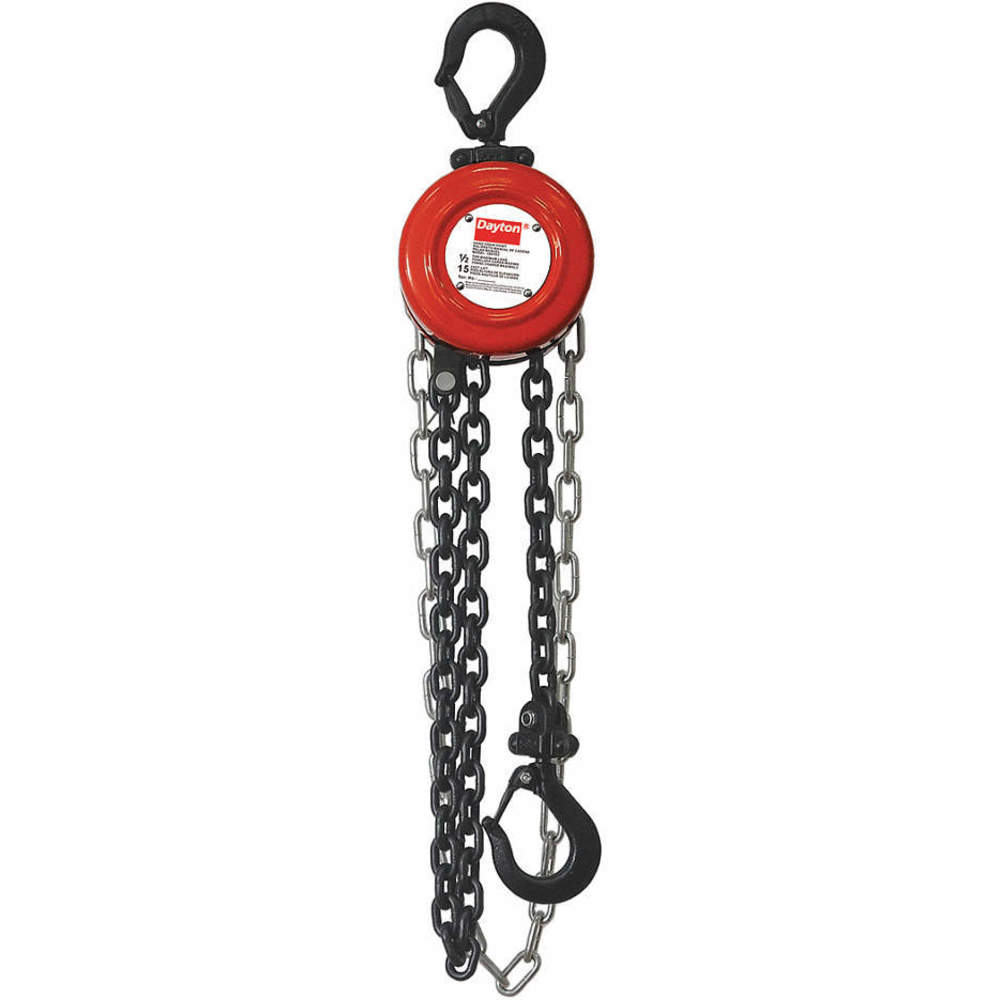

DAYTON 38EV03 Low Headroom Chain Hoist 1000 lb. 15 Feet
Get it by Thursday, Dec 25
10.00% off
€220.72 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Manual Chain Hoist |
| Body Depth | 4 3/8" |
| Body Finish | Powder Coated |
| Body Material | Steel |
| Body Width | 4 3/4" |
| Brake Type | Double Disc Brake, Weston Style |
| Chain Finish | Black Tempered, Zinc Plated |
| Chain Grade | Grade 80 |
| Chain Material | Alloy Steel |
| Color | Red |
| Features | Friction Reducing Roller And Ball Bearings, Jamproof Chain Guide, Self Adjusting Brakes |
| Finish | Powder Coated |
| For Max. Beam Flange Height | Not Applicable |
| For Maximum Beam Flange Width | Not Applicable |
| For Min. Beam Flange Height | Not Applicable |
| For Minimum Beam Flange Width | Not Applicable |
| For Outdoor Use | Yes |
| Headroom | 10 3/4" |
| Hoist Overload Protection | No |
| Hook Opening | 25/32" |
| Housing Depth | 4 1/2" |
| Housing Length | 4 23/32" |
| Housing Width | 4 3/4" |
| Included Components | Safety Latch Hooks |
| Includes | Safety Latch Hooks |
| Includes Brake | Brake Included |
| Includes Clutch | Clutch Included |
| Lever Length | Not Applicable |
| Lift Length | 15 ft. |
| Lifting Capacity | 1000 lbs. |
| Lifting Hook Material | Alloy Steel |
| Lifting Hook Opening Width | 3/4" |
| Lifting Hook Type | Hook With Safety Latch |
| Load Capacity | 1000 lbs. |
| Manufacturers Warranty Length | 1 yr. |
| Maximum Pulling Capacity | Not Applicable |
| Min. Between Hooks | 10 3/4" |
| Minimum Retracted Length | 10 5/8" |
| Mount Type | Hook Mounted - No Trolley |
| Mounting Type | Hook Mount No Trolley |
| Number Of Load Chains | 1 |
| Number Of Reeves | 1 |
| Operating Position | Vertical |
| Overload Protection Included | No |
| Power Source | Manual |
| Pull Force To Lift Rated Load | 49 lbs. |
| Pull To Lift Rated Load | 61 lbs. |
| Pull To Lift Rated Load | 61 lb. |
| Resistance Properties | Not Applicable |
| Tonnage - Lifting Capacity | 0.5 ton. |
Shipping Info:
| Ship weight (kg) | 11.37 |
| Ship height (cm) | 17.02 |
| Ship length (cm) | 26.92 |
| Ship width (cm) | 19.56 |
| Country of Origin | CN |
Product Details:
- Hoist Overload Protection : No
Product Variants
| Product | Model | Lift Length | Headroom | Lifting Hook Opening Width | Body Width | Body Depth | Lifting Capacity | Pull Force To Lift Rated Load | Min. Between Hooks | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
1VW51 | 10 ft. | 11 1/2" | 3/4" | 5 1/8" | 4 15/16" | 1000 lbs. | 58 lbs. | 11 1/2" | €372.16 | |
|
1VW52 | 15 ft. | 11 1/2" | 3/4" | 5 1/8" | 4 15/16" | 1000 lbs. | 58 lbs. | 11 1/2" | €462.52 | |
|
1VW53 | 20 ft. | 11 1/2" | 3/4" | 5 1/8" | 4 15/16" | 1000 lbs. | 58 lbs. | 11 1/2" | €589.71 | |
 |
1VW54 | 8 ft. | 11 1/2" | 3/4" | 5 1/8" | 4 15/16" | 1000 lbs. | 58 lbs. | 11 1/2" | €294.49 | |
 |
1VW55 | 10 ft. | 13 3/4" | 1 1/8" | 5 1/8" | 5 1/4" | 2000 lbs. | 60 lbs. | 13 3/4" | €396.16 | |
|
1VW56 | 15 ft. | 13 3/4" | 1 1/8" | 5 1/8" | 5 1/4" | 2000 lbs. | 60 lbs. | 13 3/4" | €448.54 | |
|
1VW57 | 20 ft. | 13 3/4" | 1 1/8" | 5 1/8" | 5 1/4" | 2000 lbs. | 60 lbs. | 13 3/4" | €496.08 |
