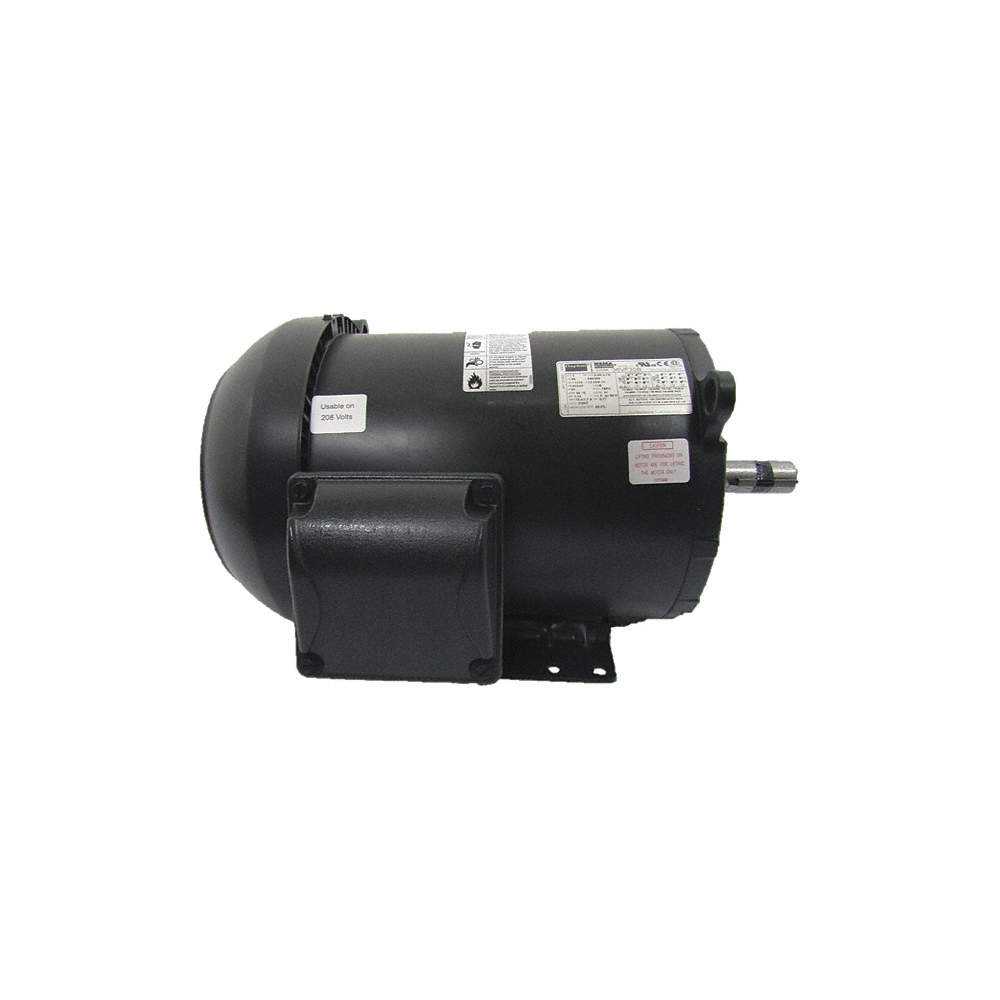

DAYTON 36VF30 GP Motor TEFC 5 HP 1175 rpm 1-3/8 Inch Diameter
Get it by Friday, Jul 3
5.00% off
€1,619.65 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | General Purpose Motor |
| Ambient Temp. | 104°F |
| Base Type | Rigid Base |
| Bearing Type | Ball |
| Cc Number | CC029A |
| Duty Cycle | Continuous |
| Efficiency | 89.5% |
| Efficiency Group | Premium |
| Frame | 213/5T |
| Frame Material | Steel |
| Frequency | 60 Hz |
| Full Load Amps | 13.4/6.7A |
| Green Certification Or Other Recognition | NEMA Premium Rated |
| Hp | 5 hp |
| Included | Conduit Box |
| Insulation Class | Class F |
| Inverter Rated | Yes |
| Motor Application | General Application |
| Motor Design | Three Phase |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Rigid Base |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | Clockwise, Counter Clockwise |
| Motor Shaft Rotation | CW, CCW |
| Motor Type | Three Phase |
| Mounting Type | Rigid Base |
| Nameplate Speed | 1175 RPM |
| No. Of Speeds | 1 |
| Number | CC030A |
| Overall Length | 20 1/16" |
| Phase | 3 |
| Service Factor | 1.15 |
| Shaft Dia. | 1 3/8" |
| Shaft Length | 3 3/8" |
| Speed | 1101-1200 RPM |
| Thermal Protection | None |
| Voltage | 208-230/460V AC |
Shipping Info:
| Ship weight (kg) | 66.6 |
| Ship height (cm) | 35.56 |
| Ship length (cm) | 59.18 |
| Ship width (cm) | 40.64 |
| Country of Origin | MX |
Product Details:
- No. of Speeds : 1
Product Variants
| Product | Model | Voltage | Phase | Hp | Frequency | Full Load Amps | Service Factor | Motor Type | Mounting Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
10C899 | 208-230/460V AC | 3 | 3/4 hp | 50/60 Hz | 2.8/1.5A | 1 | Three Phase | Rigid Base | €444.80 | |
 |
10C901 | 208-230/460V AC | 3 | 1/2 hp | 50/60 Hz | 2/1A | 1.15 | Three Phase | Rigid Base | €410.64 | |
 |
11W365 | 230/460V AC | 3 | 1/4 hp | 60 Hz | 1/0.5A | 1.15 | Three Phase | - | €412.90 | |
|
11W368 | 230/460V AC | 3 | 1/3 hp | 60 Hz | 1.5/0.7A | - | Three Phase | - | €408.76 | |
 |
11W369 | 230/460V AC | 3 | 1 1/2 hp | 60 Hz | 4.4/2.2A | 1.15 | Three Phase | - | €1,301.70 | |
 |
01518ST3QAP254T-W22 | 460V AC | 3 | 15 hp | 50/60 Hz | 18A | 1.25 | Three Phase | Rigid Base | €4,875.87 | |
 |
02018ST3QAP256T-W22 | 460V AC | 3 | 20 hp | 50/60 Hz | 24.1A | 1.25 | - | Rigid Base | €6,341.37 |
